High Output Eps Continuous Sandwich Panel Production Line For Precast Wall Panel

China High Output Eps Continuous Sandwich Panel Production Line For Precast Wall Panel supplier
High Output Eps Continuous Sandwich Panel Production Line For Precast Wall Panel supplier High Output Eps Continuous Sandwich Panel Production Line For Precast Wall Panel supplier High Output Eps Continuous Sandwich Panel Production Line For Precast Wall Panel supplier High Output Eps Continuous Sandwich Panel Production Line For Precast Wall Panel supplier High Output Eps Continuous Sandwich Panel Production Line For Precast Wall Panel supplier

Large Image :  High Output Eps Continuous Sandwich Panel Production Line For Precast Wall Panel

Product Details:

Place of Origin: Hubei, China
Brand Name: Vanjoin
Certification: ISO, , CE,SASO,BV
Model Number: VJ-PL-AY009

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit
Price: negotiation
Packaging Details: Good quality standard export packing
Delivery Time: 45-60 days after receiving prepayment
Payment Terms: T/T, L/C
Supply Ability: 20 Units Per Month
Detailed Product Description
Mould Type: Vertical Mixer: JS750, JS1000
EPS Foaming Machine: Automatic Side Mould: 60mm, 75mm, 90mm, 100mm, 120mm, 150mm
Production Raw Materials: EPS Foam, Cement,Sand Production Capacity: 100,000m2 To 1,000,000m2 Per Year
Installation: Engineers Overseas Service Provided Application: Produce Sandwich Wall Panels

High Output Eps Continuous Sandwich Panel Production Line For Precast Wall Panel

Production Raw Materials



Face board  Calcium silicate board. Width must be 608mm, allowed tolerance is ±2mm.
EPS Expandable polystyrene granule
Sand  SiO2≥98%
Cement Ordinary portland cement with grade of 42.5
Additives Vanjoin customized additives
Water Normal water


Main System

A. EPS Foaming System
    Boiler, continuous eps pre-expander machine
B. Raw Materials Storage/Measuring/Conveying System
    Cement silo, screw conveyor
    Cement measuring system, sand measuring system, elevator hopper, sand feeding machine,
    foam supply system, water measuring system, additives measuring system.

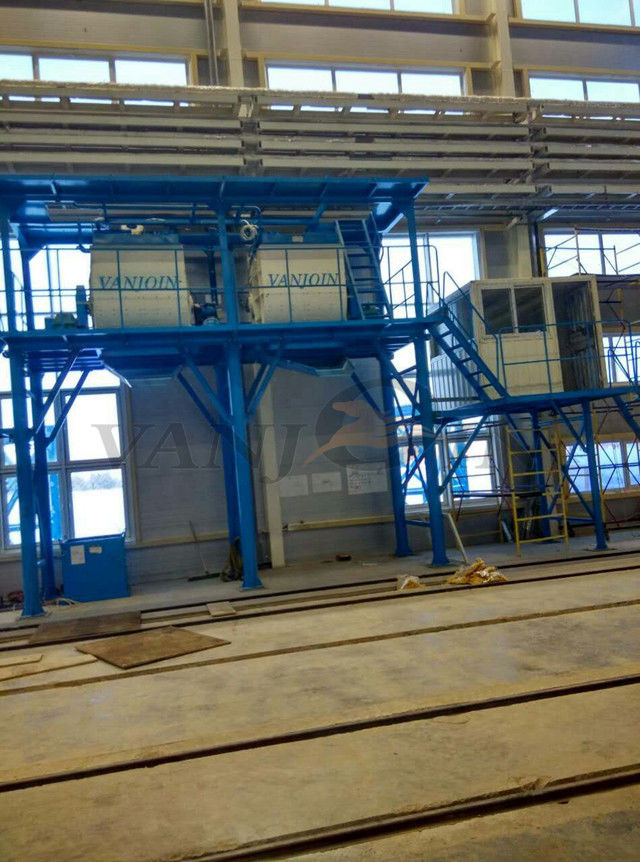

C. Mixing System
    JS750 mixing machine, body frame system, electric control system
D. Forming and Gating System

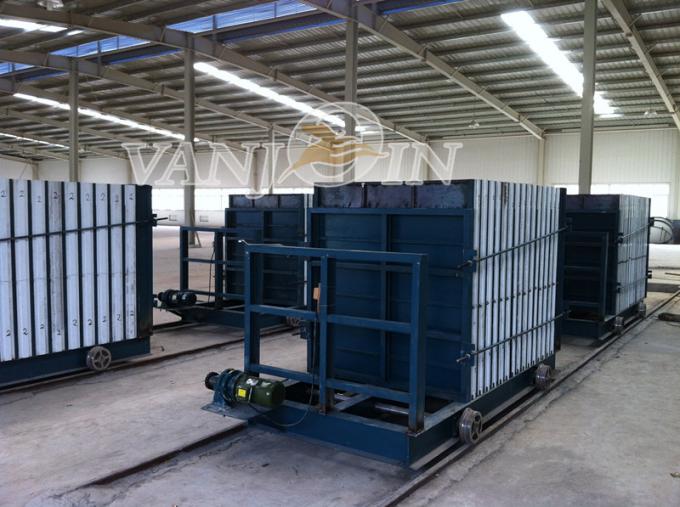

    Railway of production line, automatic mould machine, automatic transfer vehicle, vibration platform,
    electrical control cabinet.

Why Choose Vanjoin?



Save Freight,  you don't need to import wall panels any more

Fast Delivery, you can send wall panels to your customers directly and quickly

Easy Handling, the customers in your country don't need the import procedures

More Profit, seize the market opportunities timely



What You Can Get From Vanjoin?



Service life, over 20 years
Warranty,1 year
Full automatic production system
Unique raw materials measuring ,delivery and mixing system
High production output&less workers
Environmental protection
Long-term professional services
Free training

Advantages of Vanjoin Production Line

The full automatic production system designed by ourselves independently .
Unique raw materials measuring ,delivery and mixing system
We have the patent to produce the wall panel and our additive is the best .
High production output&less workers
Environmental protection
Easy maintenance
Waste recycle utilization
We can supply you the materials (eps,calcium silicon board,ceramic ,etc)at a very competitive price .
Long-term professional services

Services

1. Investment cost calculation
2. Factory design
3. Production line layout design
4. Provide engineers for installation and guidance on-site

Extra Service Vanjoin Provide

Investment Cost Calculation
Factory Area Design
Production Line Layout Design
Production Capacity Calculation
Provide Engineers for Installation and

Guidance On-site


Production Capacity / Mould Car Quantity / Workers / Area



Annual Capacity /m2 Quantity of Mould Car /set  Workers Needed/Person Production Area/m2

Stacking Area/m2

100,000 5 8-13 500 1000
200,000 8 10-18 600 2000
300,000 10 12-20 700 3000
400,000 11 15-23 800 4000
500,000 12 18-26 900 5000
600,000 13 22-32 1000 6000
700,000 14 25-35 1100 7000
800,000 15 28-36 1200 8000
900,000 16 32-42 1300 9000
1,000,000 17 35-46 1400 10000

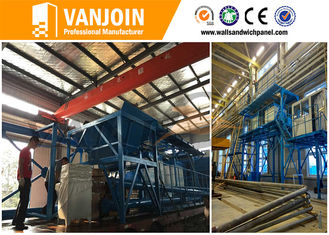

High Output Eps Continuous Sandwich Panel Production Line For Precast Wall Panel



High Output Eps Continuous Sandwich Panel Production Line For Precast Wall Panel
