Continuously Operation Cement Eps Sandwich Panel Machine For Small Business

Certification
Good quality EPS Cement Sandwich Panel for sales
Good quality EPS Cement Sandwich Panel for sales
Customer Reviews
I thought no body cares about others any more,but you changed this.

鈥斺 Mana AI Yaseen,Saudi Arabia

I appreciate very much your very kind attention to may request and it give to me a very strong confidence in your company in your services

鈥斺 Alfredo Friedmann,Paraguay

You are so kind and good service.

鈥斺 Samuel,Indonesia

You are star.I want to be your friend

鈥斺 Gert,South Africa

I'm Online Chat Now

Continuously Operation Cement Eps Sandwich Panel Machine For Small Business

China Continuously Operation Cement Eps Sandwich Panel Machine For Small Business supplier
Continuously Operation Cement Eps Sandwich Panel Machine For Small Business supplier Continuously Operation Cement Eps Sandwich Panel Machine For Small Business supplier Continuously Operation Cement Eps Sandwich Panel Machine For Small Business supplier Continuously Operation Cement Eps Sandwich Panel Machine For Small Business supplier

Large Image :  Continuously Operation Cement Eps Sandwich Panel Machine For Small Business

Product Details:

Place of Origin: Hubei, China(Mainland)
Brand Name: Vanjoin
Certification: ISO9001, ISO14001
Model Number: VJ-EPM-02H

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Standard Exporting Package
Delivery Time: 30-45 working days
Payment Terms: L/C, T/T, Western Union
Contact Now
Detailed Product Description
Product Name: EPS Cement Sandwich Panel Machines Panel Size: 2270x610mm, 2440x610mm, 3000x610mm
Panel Thickness: 60mm, 75mm, 90mm, 100mm, 120mm, 150mm, 180mm Warranty: 1 Year
Production Capacity: 100,000 SQM - 1,000,000 SQM / Year Mould Maintenance: Low And Durable
Panel Kinds: At Least 6 Kinds Lifetime Technology Support: Can Be Provided

Continuously Operation Cement Eps Sandwich Panel Machine For Small Business

Why Choose VANJOIN Production Line?

鈥 Save freight: You don't need to import the wall panel any more .
鈥 Fast delivery: You can send the wall panels to your customers directly and quickly
鈥 Easy handling: The customers in your country don't need  the import procedures
鈥 More profit: Seize the market opportunities timely .
鈥 Product diversification: we can make kinds of panels

Advantages:

1. The full automatic production system designed by ourselves independently .
2. Unique raw materials measuring ,delivery and mixing system
3. We have the patent to produce the wall panel and our additiveis the best .
4. High production output & less workers
5. Environmental protection
6. Easy maintenance
7. Waste recycle utilization
8. We can supply you the materials (eps,calcium silicon board,ceramic ,etc)at a very competitive price.
9. Long-term professional services


Introduction:

Brand Name:

VANJOIN

Assemble:

We send engineers to

assemble all the machines

Model Number:

VJ-PL-02H

Extra service:

Provide training, plant design,

 technology support

Place of Origin:

Hubei China (Mainland)

Production capacity:

100,000-1,000,000m2

per year

After-sales Service

Provided:

Engineers available to

service machinery

overseas

Wastage:

Low and recyclable

Automatic:

Yes

Machine Warranty:

One year

Usage:

To produce various

sandwich wall panels

Certificate:

ISO14001, ISO9000


What customers need to do?

You just to need prepare the raw materials:
EPS, cement, Sand or fly ash, Land, Foudation, Factory preparation, Workers

Component:

1 . Foaming System: boiler system, continuous pre-expander machine.
2 . Raw Materials Storage / Measuring / Conveying System
Usde for sand, cement, water storage and measurement.
3 . Mixing System
This concrete mixing plant, through full automatic control system, can realize the functions like automatic mixing and discharging, automatic supply cement, sand, water, foam materials, and additives, etc.

Parameters:


Theoretical Productivity2×35m³/h
Mixing Time≤180s
Materials Measuring Accuracy±1%
Sand Batching Period≤10s
Sand delivering Speed18m³/h
Water Supply Flow Speed30m³/h
Cement Delivering Capacity20t/h


4 . Forming and Gating System
1) Railway of production line

2) Automatica mould machine

Parameters:


Item

Main parameters

Overall Dimensions
( Length × Width × Height )

3180mm×1380mm×3480mm

Weight

2800KG

Movement Power(KW)

2.2

Movement Speed(m/min)
(m/min)

≤60

Main Components

Main Part

Base(contain power device), front support,
back support, pressing plate, rod



Accessories

Pressing Mould Plate, side mould

Production Data








Thickness
(mm)

Width
(mm)

Length
(mm)

Production Quantity
(pieces/set)

Area
(銕/set)

Raw Materials
(m³)

60

610

2270

60

83.0

4.15

75

610

2270

50

69.2

4.50

90

610

2270

42

58.1

4.65

100

610

2270

40

55.3

4.98

120

610

2270

34

47.0

5.17

150

610

2270

28

38.7

5.42

180

610

2270

22

30.4

5.17


3) Automatic transfer vehicle
4) Vibration platform
5) Electrical control cabinet: can be customized.

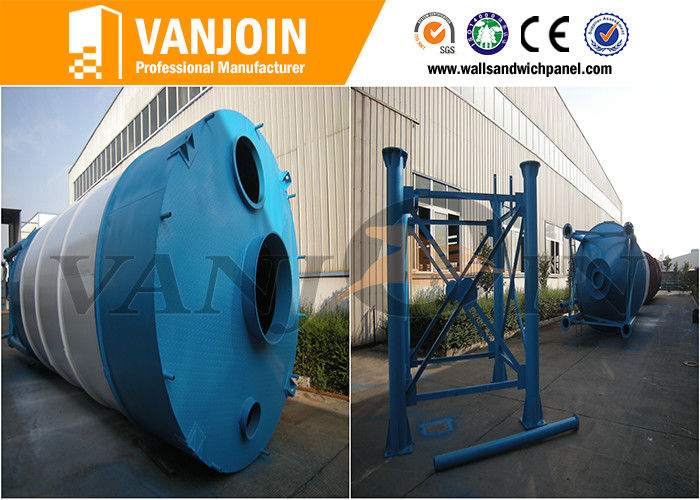

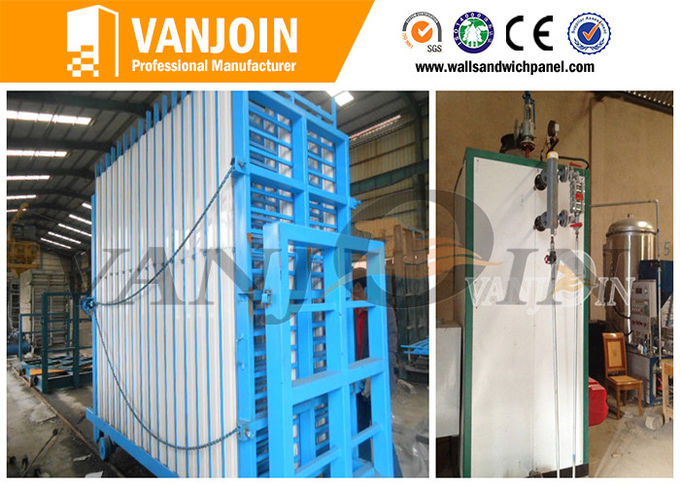

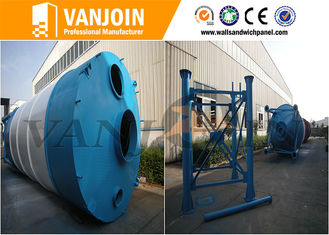

EPS Cement Sandwich Panel Machine鈥 Photo:

Continuously Operation Cement Eps Sandwich Panel Machine For Small BusinessContinuously Operation Cement Eps Sandwich Panel Machine For Small Business
