Light Building EPS Cement Sandwich Panel For Interior / Exterior Wall

Large Image : Light Building EPS Cement Sandwich Panel For Interior / Exterior Wall

Product Details:

Place of Origin:	China
Brand Name:	Vanjoin
Certification:	CE, BV, ISO
Model Number:	VJWP-YRR52

Payment & Shipping Terms:

Minimum Order Quantity:	300 Square Meter
Price:	negotiation
Packaging Details:	1. Free packing ( with normal pallet and normal packing belt ) 2. Standard exporting packing ( wraped with plastic film , edge protect and good pallet )
Delivery Time:	7~10 working days after receive deposit
Payment Terms:	L/C,T/T,Western Union, D/A,D/P, MoneyGra
Supply Ability:	200000 Square Meters per Month

Detailed Product Description

Product Name:	EPS Cement Sandwich Panel	Specification(LWT):	227061060/75/90/100/120/150mm
Safety:	100% Non-asbestos, Eco-friendly	Usage:	Partition Wall ,exterior Wall,roof And Floor
Fireproof:	Under 1000 Degree For 4 Hours	Sound Insulation:	40~56 DB
Anti-earthquake:	Class 8-13	Service Life:	70 Years

Light Building EPS Cement Sandwich Panel For Interior And Exterior Wall

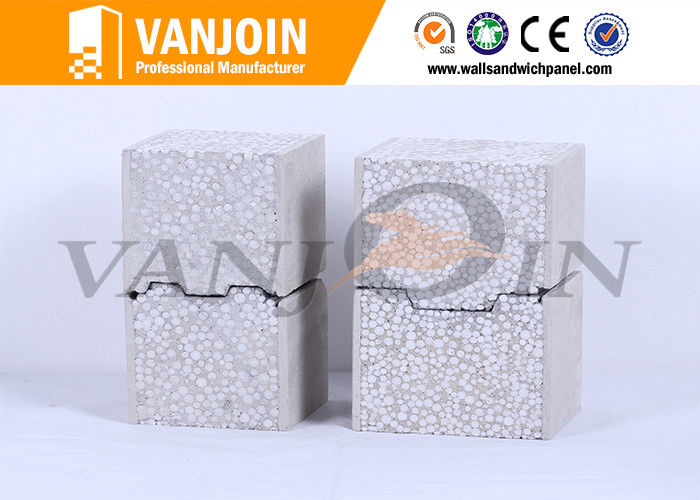

Composition:
Core materials: cement, EPS, and fly ash or sand core
Surface materials: fiber reinforced calcium silicone board or cement calcium silicone boar

Wall Panel Size And Packing Details:

	Specification (LWT)(mm)	Weight (kg/m2)	Packing (pcs/m2 per 20’GP)	Application
Vanjoin Precast Concrete Sandwich Plates	227061060	45~48	315pcs/436m2	Roof system
	227061075	50~53	252pcs/349m2	Floor system
	227061090	55~58	207pcs/287m2	Interior/Exterior wall
	2270610100	60~65	189pcs/262m2	Interior/Exterior wall
	2270610120	65~75	153pcs/212m2	Exterior wall
	2270610150	80~90	126pcs/175m2	Exterior wall

The size customized by the container, so it can make full use of container to save cost.
Generally the panel could be cut into any sizes casually, so it can meet requirements of different lengths.

Applications:
1) Floor System
Vanjoin light weight compound sandwich panel can be innovatively used as floor board. This system has the outstanding advantages such as high load-bearing capacity, anti-static electricity, friction resistance, high strength, convenient for wire groove and water pipe inbuilt, corrosion resistance, no deformation, no split, etc.
2) Roof System
This system not only solves the problem of roof leakage, but also has the advantages such as heat insulation, neat joint surface, high temperature resistance, etc.
3) Interior Partition System
With EXCELLENT fireproof, best hanging force, sound insulation, heat insulation, waterproof, easy installation and the like characteristics.
4) Interior & Exterior Wall System
Vanjoin lightweigh compound sandwich panel can automatically adjust indoor air and water content with the season and climate changes, which can keep the temperature at an invariable temperature level, and such ecology effect just goes with the tide of modern residential building. It is widely applied to various modular house, low buildings, apartment, villas, and city house, etc.
Characteristics:

Light weight	1 person can take up two pieces of vanjoin panel
Energy-saving, Eco-friendly	100%non-asbestos
Easy to install, fast construction	3 workers can finish a 70 m2 house just by 1 week
Strong and durable	Long life 60-70 years
Heat insulation and preservation	Thermal conductivity: 0.221W/mk
Sound insulation	38-50 DB
Weatherproof; windproof	70m/s; grade 13
Fireproof	The panel can keep well about 4 hours under 1000 degree temperature
Anti-impact, anti-earthquake	Grade 8
Best hanging strength	Single point hanging force is > 1200 N
Weight capacity	500KG/ square meter

Supply Market:
Iran, Kazakstan, Russia, Australia, India, Dubai, Saudi Arabia, South Africa, Spain, Maldives, Brunei, Thailand, Bolivia, Chile, Nigeria, Sweden, Egypt and so on.

FAQ:

1. Can you provide samples?
Vanjoin: Yes, we can provide free sample, customers just bear the courier freight.

2. Can you arrange engineer to help installation?
Vanjoin: Yes, we can. Your technical people is also welcome to our factory for installation study.

3. How long is your panel life?
Vanjoin: more than 70 years.
Light Building EPS Cement Sandwich Panel For Interior / Exterior Wall

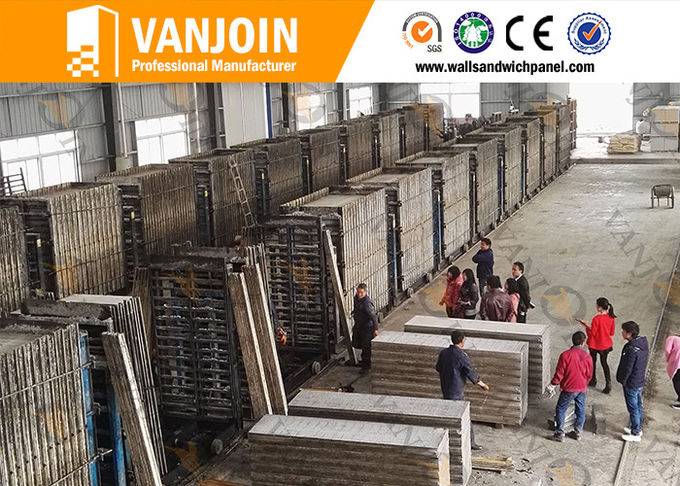

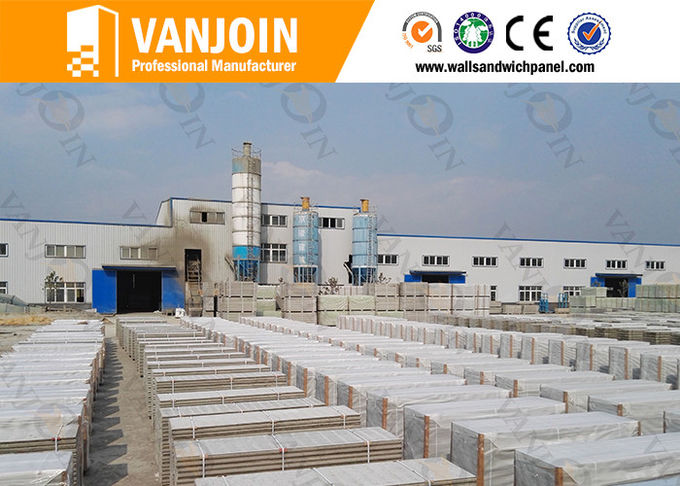

Our Factory

Other Service

We are also the professional supplier of wall panel production line and flexible decoration soft ceramic tile.
For more information, pls visit our company website www.vanjoinbuild.com.
If you need further details and support, please don't hesitate to contact us. ^_^
