Concrete Lightweight Wall Panel Machine / Plant Eps Cement Composite Line

China Concrete Lightweight Wall Panel Machine / Plant Eps Cement Composite Line supplier
Concrete Lightweight Wall Panel Machine / Plant Eps Cement Composite Line supplier Concrete Lightweight Wall Panel Machine / Plant Eps Cement Composite Line supplier Concrete Lightweight Wall Panel Machine / Plant Eps Cement Composite Line supplier Concrete Lightweight Wall Panel Machine / Plant Eps Cement Composite Line supplier

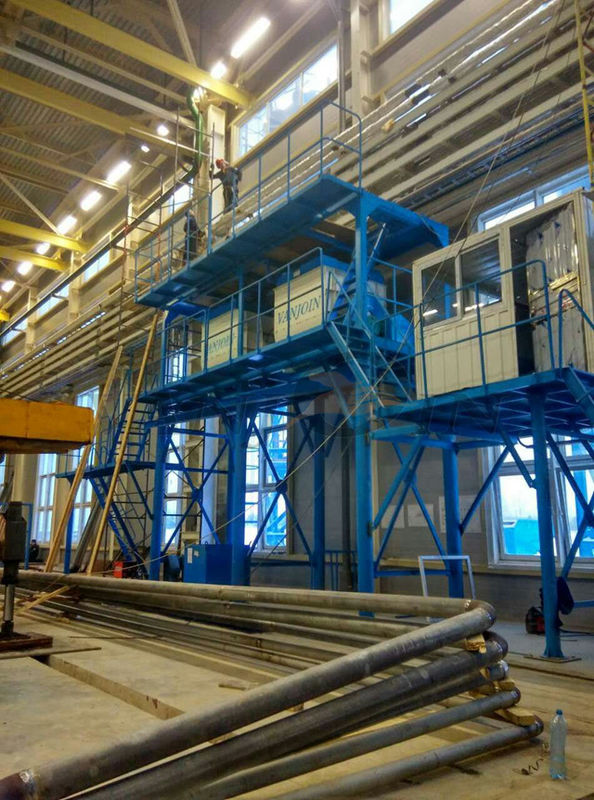

Large Image :  Concrete Lightweight Wall Panel Machine / Plant Eps Cement Composite Line

Product Details:

Place of Origin: Wuhan, China
Brand Name: Vanjoin
Certification: CE,ISO,,BV
Model Number: VJ-PL-WL-104

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: standard export package
Delivery Time: 45-60 days after receiving prepayment
Payment Terms: L/C, D/P, T/T, Western Union
Supply Ability: 20 units per month
Contact Now
Detailed Product Description
Product Name: Concrete Lightweight Wall Panel Machine Production Plant Eps Cement Composite Line Machine Type: Manual , Semi-automatic , Fully Automatic
Technical Support: Vanjoin Owned Patent Certificate And Update New Products To You. Panel Thickness: 60mm, 75mm , 90mm , 100mm , 120mm , 150mm , 180mm
Warranty: 12 Months Panel Width: 610mm
Installation: Engineer Go To Client Factory Guide Installation The Machines Panel Length: 2270mm --3000mm (can Be Customized)

Concrete Lightweight Wall Panel Machine Production Plant Eps Cement Composite Line



1. Three Types of Machines



(1) Manual

(2) Semi-automatic

(3) Fully Automatic



2. Production Capacity of Mould Car System



Description (Length*Width* Thickness )

Output For One Set Of Mould Car

2270mm*610mm*60mm

60 pcs/set

2270mm*610mm*75mm

50 pcs/set

2270mm*610mm*90mm

42 pcs/set

2270mm*610mm*100mm

40 pcs/set

2270mm*610mm*120mm

34 pcs/set

2270mm*610mm*150mm

28 pcs/set

2270mm*610mm*180mm

22 pcs/set



3. Different Productivity & Loading Details



Annual Productivity

Workers Needed (Management &

Technical Person Included)

Loading Details
100,000 m2 8-13





1 40HQ,3 40FT

200,000 m2 10-18
300,000 m2 12-20
400,000 m2 15-23





1 40HQ,4 40FT

500,000 m2 18-28
600,000 m2 22-32
700,000 m2 25-35





1 40HQ,5 40FT

800,000 m2 28-38
900,000 m2 32-42
1,000,000 m2 35-46



4.Advantages

  • Service life is over 20 years
  • Warranty is 1 year
  • Full automatic production line system
  • Unique raw materials measuring, conveying and mixing system
  • High production output and low cost input
  • Less workers and less labor cost
  • Environmental protection

5.Main System

  • EPS foaming system includes boiler, eps foaming machine, etc.
  • Raw materials storage/measuring/conveying system includes raw materials silo, storage& weighing &measuring hopper, pump, etc.
  • Mixing system includes mixing machine, electric control system, etc.
  • Forming and gating systes includes mould machine ,vibration machines, etc.

Concrete Lightweight Wall Panel Machine / Plant Eps Cement Composite Line

Concrete Lightweight Wall Panel Machine / Plant Eps Cement Composite Line

Concrete Lightweight Wall Panel Machine / Plant Eps Cement Composite Line
