100% Non Asbestos EPS Cement Sandwich Panel , Lightweight Composite Panels

China 100% Non Asbestos EPS Cement Sandwich Panel , Lightweight Composite Panels supplier
100% Non Asbestos EPS Cement Sandwich Panel , Lightweight Composite Panels supplier 100% Non Asbestos EPS Cement Sandwich Panel , Lightweight Composite Panels supplier 100% Non Asbestos EPS Cement Sandwich Panel , Lightweight Composite Panels supplier 100% Non Asbestos EPS Cement Sandwich Panel , Lightweight Composite Panels supplier

Large Image :  100% Non Asbestos EPS Cement Sandwich Panel , Lightweight Composite Panels

Product Details:

Place of Origin: China
Brand Name: Vanjoin
Certification: CE, BV, ISO
Model Number: VJ-WPE-C06H

Payment & Shipping Terms:

Minimum Order Quantity: 300 Square Maters
Price: negotiation
Packaging Details: 1. Free packing ( with normal pallet and normal packing belt ) 2. Standard exporting packing ( wraped with plastic film , edge protect and good pallet )
Delivery Time: 7~15 working days after receive payments
Payment Terms: L/C,T/T,Western Union
Supply Ability: 200000 Square Meters Per Month
Detailed Product Description
Product Name: Fire Resistance 100% Non Asbestos Eps Cement Sandwich Panel Dimension: 2270*610mm
Thickness: 60mm, 75mm, 90mm, 100mm, 120mm, 150mm Sound Proofing: 38-46dB
Windproof: 70m/s Fire Resistance: More Than 120 Minutes
Applications: Shopping Mall, Villa, Bungalows, Apartment, Warehouse, Etc. Density: 650 - 850kg/m³



100% Non Asbestos EPS Cement Sandwich Panel , Lightweight Composite Panels



1) Composition:



Surface board : calcium silicate board (100% no asbestos).



Core materials: cement, EPS/ceramic, sand, additives, water.

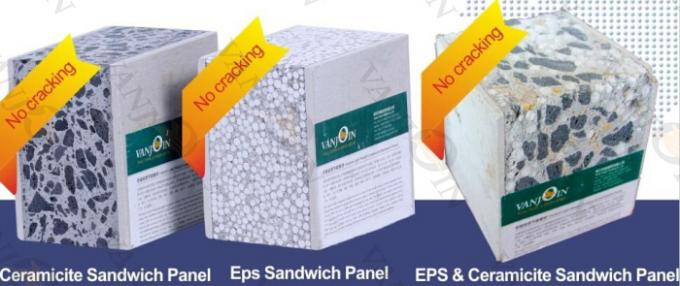

2) Three main kinds of sandwich wall panels:



Eps sandwich panel, Ceramicite Sandwich panel, Eps & Ceramicite sandwich panel



3) Advantages:


※ Most energy-saving, light weight, environmental protection

The capacity is 650kg/m³, just sixth of the brick building



※ Most Area-saving

In comparison of the inner wall panel 75mm abd 120mm, every 12m will increase practical area,

for the 100㎡ house, it will increase 4.26㎡.



※ Most waterproof and dampproof

Because of the special featuresof the solid panel, the feature of waterproof and dampproof is very

obvious. The experiment shows that without any waterproof facing, build one pool with our products,

and fill it with water, the back of the wall can keep dry without ant blot.When in damp weather, there

 isn't any condensation wate.



※ Most fire-proof

Under 1000 degree centigrade for 240 minutes, there isn't damage to the wall.



※ Most sound-insulation

46dB-50dB sound-insulation effect, accord with the national standard GBJ121-88.



※ Best hanging strength

Expansion bol can be installed in random part of the wall, the point hanging force can reach more

 than 50kg(50-70kg). With other Pre-embedded material in the panel, the strength can reach 150kg.



※ Most anti-seismic and inpact resistance

Earthquake resistant level: M8.0



※ Most civilized, environmental, high efficiency construction

Simple construction and transportation, stacking health, dry operation, no sludge, low loss, less

 waste, construction convenient, no bricklaying plastering, shorten the construction period,

lotted fast, easy to install water and electricity pipeline. The construction efficiency is 8-10 times

of the normal masonry, it's a kind of high-quality reusable wall.



4) Certificates:



CE, , BV, ISO900, ISO14000, Patent Invention, STC test, fireproof test, etc. certificated.

5) Thicknesses available:



Specification (mm) Weight (kg/m2) Allowed Tolerance (mm) Packing (pcs and m2 per 20' FCL)
2270x610x60 45~48 Length ± 5
Width ± 2
Thickness ± 1
Diagonal ± 2
315pcs, 436m2
2270x610x75 50~53 252pcs, 349m2
2270x610x90 55~58 207pcs, 287m2
2270x610x100 60~65 189pcs, 262m2
2270x610x120 65~75 153pcs, 212m2
2270x610x150 80~90 126pcs, 175m2





6) Technical Parameters:





Item

National Standards

Testing Indexes

60mm

90mm

120mm

60mm

90mm

120mm

1

Anti-impact Capacity/times

≥5

≥5

≥5

≥8

≥10

≥15

2

Anti-bending damage load/times over deadweight

≥1.5

≥1.5

≥1.5

≥3

≥4

≥5

3

Compressive strength /Mpa

≥3.5

≥3.5

≥3.5

≥5

≥5

≥5

4

Softening coefficient

≥0.80

≥0.80

≥0.80

≥1

≥1

≥1

5

Surface density g/m2

≤70

≤90

≤110

≤55

≤70

≤85

6

Moisture rate  a/%

≤12/10/8

≤10/9/7

7

Drying shrinkage value /mm/m

≤0.6

≤0.6

≤0.6

≤0.45

≤.0.5

≤0.5

8

Hanging Force/N

≥1000

≥1000

≥1000

≥1200

≥1300

≥1500

9

Sound insulation capacity in the air /Db

≥30

≥35

≥40

≥35

≥40

≥45

10

Fire proof limit /h

≥1

≥1

≥1

≥2.5

≥3

≥4

11

Heat transfer coefficient  w/m2.k





≤1.0





≤1.0

12

Radioactivity Limit

≤1

≤1

≤1

≤1

≤1

≤1

13

IRa (Inner radiation indexes)

≤1

≤1

≤1

≤1

≤1

≤1

14

Ir (Outer radiation indexes)

≤1

≤1

≤1

≤1

≤1

≤1





7) Applications:



- Can replace construction materials as red bricks, clay solid bricks, air bricks, color-coated steel sandwich boards, gypsum blocks, wire spatial grid structure perlite boards, and perlite porous board.



- Can widely be applied to interior and exterior wall materials of various high and low buildings such as banks, office buildings, hospitals, schools, hotels, malls, amusement halls, active barracks, old houses reconstruction, residences, and workshops.

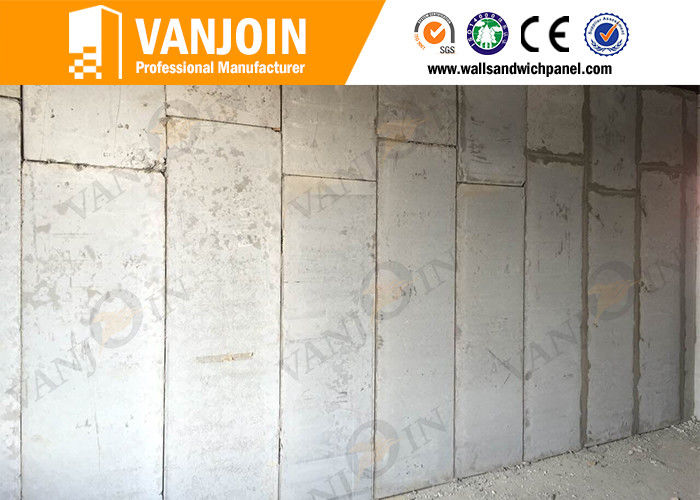

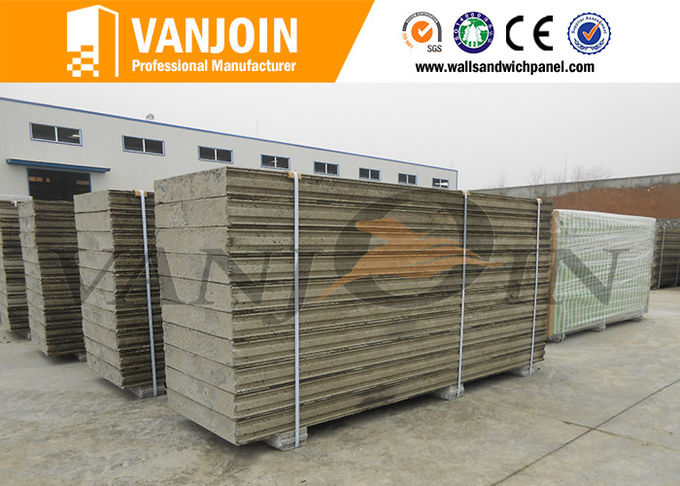

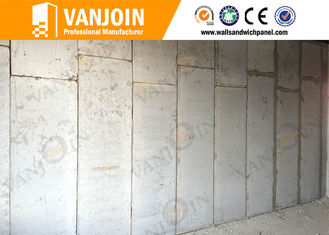

8) Sandwich Panel Pictures:



100% Non Asbestos EPS Cement Sandwich Panel , Lightweight Composite Panels

100% Non Asbestos EPS Cement Sandwich Panel , Lightweight Composite Panels
