Product Details:
Payment & Shipping Terms:
|
| Thickness: | 60mm To 150mm | Width: | 610mm |
|---|---|---|---|
| Length: | 2270mm | Usage: | Interior Wall, Exterior Wall |
| Application: | House, Villa, High Building | Lifespan: | 70 Years |
| Advantages: | Fireproof, Waterproof, Heat Insulation, Sound Insulation | Construction: | 2 Workers Can Install 60m2 Per Day |
| Labor Cost: | Less And Saving | Certification: | CE, ISO, , BV, Test Report, Patent |
| Type: | Non Metal Sandwich Panel | Loading Container: | 20ft Container |
Durable Fire Retardant EPS Cement Sandwich Panel , wall insulation boards Ecological
Brief Introduction
Vanjoin lightweight prefabricated sandwich panels is a NEW kind of energy saving green building construction material.
It is mainly used for interior wall and exterior wall, and also can be used for roofing and flooring.
Quick Details
| Type | EPS Cement Sandwich Panel |
| Composition |

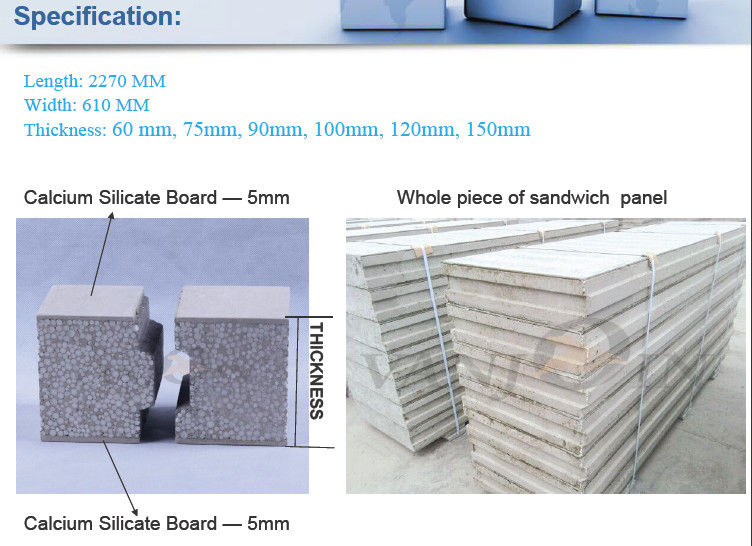

1. Face boards: calcium silicate board 5mm thickness 2. Core materials: eps foam, cement, sand, additives |
| Standard Size |
Length 2270mm Width 610mm, Thickness: 60mm,75mm,90mm,100mm,120mm,150mm |
| Application | Exterior and interior wall, floor and roof for various houses and buildings |
| Main Structure of House | Concrete or steel structure |
| Supply ability | 2,000,000m2 per year |
| Delivery time | Within 7 days after receiving prepayment. |
| Payment terms | T/T, L/C |
| Packing Details | 1. Standard exporting packing, good pallet+corner protective paper+packing belt+plastic thin film 3. Packing size: 2270*610*1000mm 4.Loading: 18 pallets per 20' container |
| Samples | Free samples are available |
| Certificates | CE,ISO,,BV, with test reports and patents |
Size / Weight / Loading Quantity / Application
|
Product Name |
Specification (mm) |
Weight (kg/m2) |
Packing (pcs/㎡ per 20GP) |
Application |
|
Vanjoin light weight energy-saving compound sandwich panels |
2270x610x60 | 45~48 | 315pcs/436㎡ | Roof |
| 2270x610x75 | 50~53 | 252pcs/349㎡ | Interior wall | |
| 2270x610x90 | 55~58 | 207pcs/287㎡ | Interior/Exterior wall | |
| 2210x610x100 | 60~65 | 189pcs/262㎡ | Interior/Exterior wall | |
| 2210x610x120 | 65~75 | 153pcs/212㎡ | Exterior wall | |
| 2210x610x150 | 80~90 | 126pcs/175㎡ | Exterior wall | |
| 2210x610x180 | 95~105 | 99pcs/138㎡ | Exterior wall | |
| Allowed Tolerance: Length±5mm; Width±2mm; Thickness±1mm; Diagonal±2mm | ||||
Advantages
| Lightweight | 1 person can carry panel easily |
| Eco-friendly | 100% non-asbestos |
| Fast Construction | 3 workers can install 60-80m2 per day |
| Strong,Durable and Long Lifespan | 70 years |
| Sound Insulation | 46 dB |
| Windproof | 65m/s |
| Fireproof | 4 hours under 1000 degree fire |
| Anti-earthquake | Grade 8-9 |
| Best hanging force | Single point hanging force is 50kg;Embed hanging force 150kg |
| Weight capacity | 650KG / m3 |
| Space saving | Save 4.26m2 per 100 m2 area |
| Anti-seimisic / Earthquake proofing | Class 7-8 |
| Easy decoration | Convenient for pipeline embeded |
VANJOIN Company Information
1)Vanjoin is a proffesional manufacturer of EPS cement sandwich wall panel for 10 years.
2) We have a 40,000m2 factory, with 60000m2 stocking area;
3) We produce sandwich panel, sandwich panel making machine, soft ceramic tiles and soft ceramic
tiles making machine
4) We are certificated with CE, , ISO9001, ISO14000, Invention Patent, STC tests, etc;
5) Our production capacity is 2,000,000m2/year; Our average exports is over 600 containers/month;
6) Our main markets: Southeast Asia, Africa, Middle East, South America, Oceania, Europe, etc.

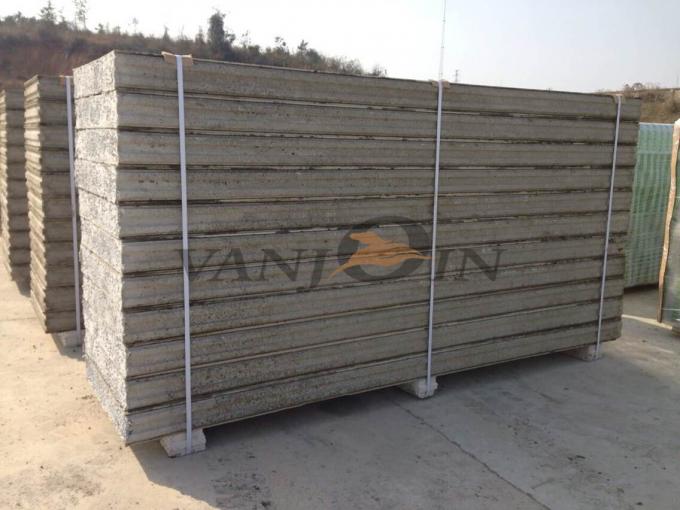

Photos of Vanjoin Panels
Vanjoin Company Photos
Vanjoin Valuable Customers
Contact Person: Miss. Vicky
Tel: +86-27-82801008
Mobile: +86 18986026719
Fax: +86-27-82801003
E-mail: marketing@vanjoin.com
