Product Details:
Payment & Shipping Terms:
|
| Product Name: | Cement Sandwich Panel | Non-combustibility: | Grade A, BS EN ISO1182:2002 |
|---|---|---|---|
| Safety: | 100% Non-asbestos, Green, Eco-friendly | Raw Material: | Sand,cement,fly Ash,additive |
| Fireproof: | 240min (1000 Degree ) | Anchorage Load: | 50 Kgs |
| Anti-wind: | 13 Degree | Usage: | Interior Partition ,exterior ,roof And Floor |
Eco Friendly fire resistant Building EPS Cement Sandwich Panel Sound Insulation
Green Raw Materials:
- Surface: calcium silicate board
- Core: eps, cement, sand, water, additives,etc.
Panel Specification:
|
Name |
Size(L*W*T) |
Weight(KG) |
Packing(pcs/㎡ per 20") |
|
VJ light weight compound |
2270*610*60 |
45-48 |
315 pcs / 436 ㎡ |
|
2270*610*75 |
50-53 |
252 pcs / 349 ㎡ |
|
|
2270*610*90 |
55-58 |
207 pcs / 287 ㎡ |
|
|
2270*610*100 |
60-65 |
189 pcs / 262 ㎡ |
|
|
2270*610*120 |
65-75 |
153 pcs / 212 ㎡ |
|
|
2270*610*150 |
90-90 |
126 pcs / 175 ㎡ |
Remark: All kinds of panels can be customized by customers' specific requirement,
Features and Advantages of EPS Cement Wall Panel:
1. Fast construction (25m2/day/person)
2. Windproof (65m/s)
3. Sound insulation(46dB)
4. Anti-impact, Anti-seismic (class: 8)

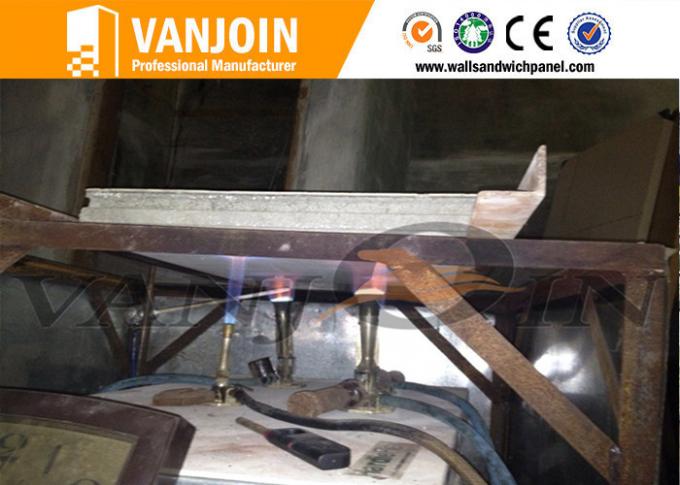

5. Waterproof, Fireproof (4 hours, under 1000 degree centigrade)
6. Light weight, Energy-saving
7. Eco-friendly green material
8. Save area, Easy installation
9. Heat insulation & preservation
10. Strong and durable, 60-70 years life span.
Application of EPS Wall Panel:
- Floor System
Vanjoin light weight compound sandwich panel can be innovatively used as floor board. This
system has the outstanding advantages such as high load-bearing capacity, anti-static electricity,
friction resistance, high strength, convenient for wire groove and water pipe inbuilt, corrosion resistance,
no deformation, no split, etc.
- Roof System
This system not only solves the problem of roof leakage, but also has the advantages such as heat
insulation, neat joint surface, high temperature resistance, etc.

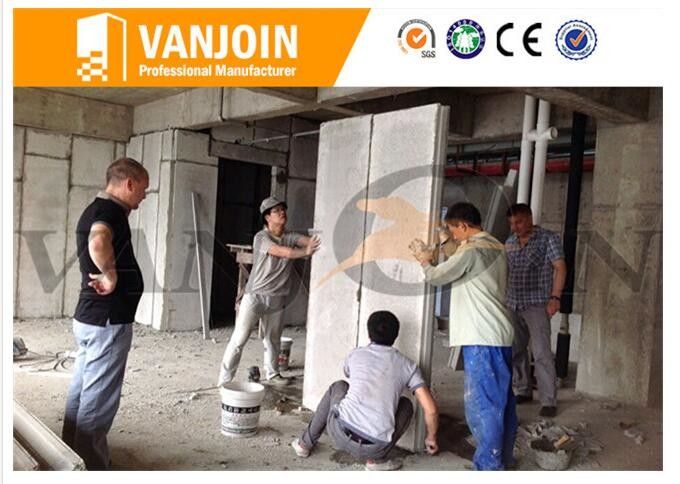

- Interior Partition System
With EXCELLENT fireproof, best hanging force, sound insulation, heat insulation, waterproof, easy
installation and the like characteristics.

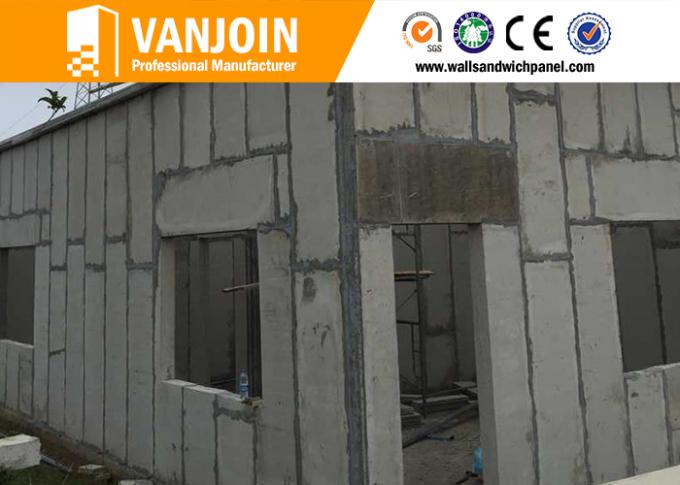

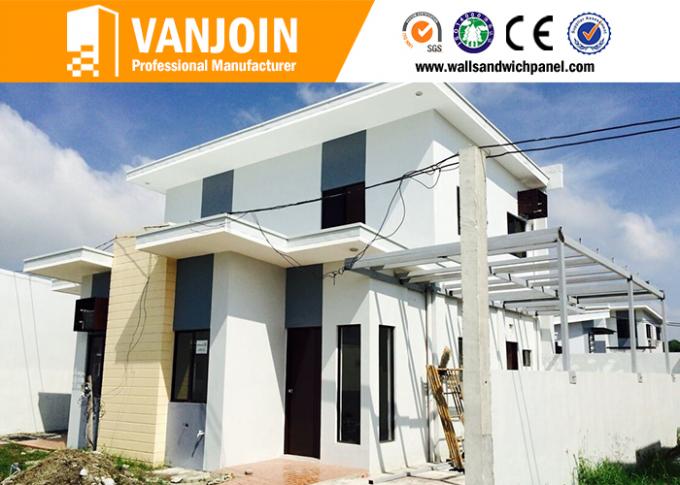

- Interior & Exterior Wall System
Vanjoin lightweigh compound sandwich panel can automatically adjust indoor air and water content
with the season and climate changes, which can keep the temperature at an invariable temperature
level, and such ecology effect just goes with the tide of modern residential building. It is widely applied
to various modular house, low buildings, apartment, villas, and city house, etc.
Vanjoin Insulated Precast Concrete Wall Panels for House(for interior wall, exterior wall)
Type Specification:
|
Different Types |
Different Panels |
|
Type 1 |
EPS cement sandwich panel |
|
Type 2 |
Solid eps cement sandwich panel |
|
Type 3 |
Ceramisite sandwich panel |
|
Type 4 |
Solid Ceramisite sandwich panel |
|
Type 5 |
Perlite sandwich panel |
|
Type 6 |
Solid perlite sandwich panel |
|
Type 7 |
Eps & Ceramicite Sandwich Panel |
|
Type 8 |
Solid Eps & Ceramicite Sandwich Panel |
FAQ of EPS Cement Panel
1. What's the annual capacity of lightweight precast concrete panels?
Our eps sandwich panel with annual production capacity of 6,000,000m2, ranking TOP 2 in China.
2 . Main market of Vanjoin lightweight precast concrete panels?
Main market : Asia, South Amercia, Africa, South East Asia, Middle East.
3. Certificate of Vanjoin lightweight precast concrete panels
We get CE, ISO9001, ISO1004, BV, , Patent certificates. We also passed the fireproof, Sound
insulation and other performance test by the Philippines Science and Technology Department.
