Lightweight Wall Panel Machine , Building Material Sandwich Panel Making Machine

China Lightweight Wall Panel Machine , Building Material Sandwich Panel Making Machine supplier
Lightweight Wall Panel Machine , Building Material Sandwich Panel Making Machine supplier Lightweight Wall Panel Machine , Building Material Sandwich Panel Making Machine supplier Lightweight Wall Panel Machine , Building Material Sandwich Panel Making Machine supplier Lightweight Wall Panel Machine , Building Material Sandwich Panel Making Machine supplier

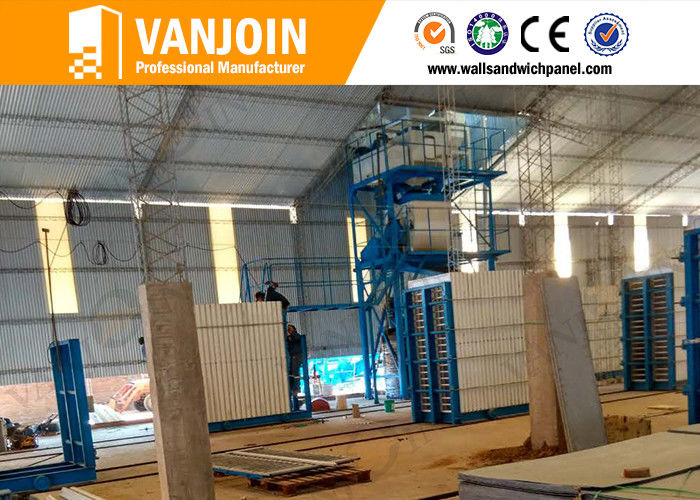

Large Image :  Lightweight Wall Panel Machine , Building Material Sandwich Panel Making Machine

Product Details:

Place of Origin: Wuhan, Hubei, China
Brand Name: VANJOIN Lightweight Wall Panel Machine
Certification: CE, ISO, , BV,ect.
Model Number: VJ-PL-LX007 Lightweight Wall Panel Machine

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit
Price: negotiation
Packaging Details: Standard Exporting Packing
Delivery Time: 30-45days after getting advanced payment
Payment Terms: T/T, L/C
Supply Ability: 20 Units Per Month
Contact Now
Detailed Product Description
Name: Lightweight Wall Panel Machine Automatic: Full, Semi Automatic Or Manual
Capacity: 100,000-1,000,000 Square Meter/year Panel Types: EPS / Perlite / Ceramicite Sandwich Panel
Panel Length: 2270mm, 2440mm, 2700mm, 3000mm Panel Width: 610mm
Thickness: 60, 75, 90, 100, 120, 150, 180mm Application: Interior Wall, Exterior Wall, Roof Or Floor
Mould Type: Vertical Mould Machine Installation: Our Engineer Is Available To Install Machines
Guaranty: 12 Month Sevice Time: More Than 20 Years
Features Of Panel: Lightweight, Fireproof, Waterproof, Sound Insulation Fireproof Of Panel: 4 Hours Under 1000 Degree



Lightweight Wall Panel Machine , Building Material Sandwich Panel Making Machine



I. Usage of Lightweight Wall Panel Machine

Composite sandwich wall panel machinery production line is using for producing sandwich panel.



II. Specifications of Lightweight Wall Panel Machine

Annual Output(m2) Quantity of Moulding Cars(set) Quantity of Workers Required Prodction Area(m2) Stacking Area(m2)
100,000 5 8--13 500 1000
200,000 8 10--18 600 2000
300,000 10 12--20 700 3000
400,000 11 15--23 800 4000
500,000 12 18--28 900 5000
600,000 13 22--32 1000 6000
700,000 14 25--35 1100 7000
800,000 15 28--38 1200 8000
900,000 16 32--42 1300 9000
1,000,000 17 35--46 1400 10000































III. Main Systems of Lightweight Wall Panel Machine

1) Foaming System including: Electric / oil / gas Boiler + EPS foaming machine

2) Raw material storage measuring and conveying system: AUTOMATIC weighing and supply

3) Mixing system: two sets double-horizontal-shaft compulsory mixing and discharging separately.

4) Wall panel forming and gating system

1. Railway system

2. Steering system

3. Casting moulding system



Main Parameters of Vertical Mould Car:



Thickness

(mm)

Width

(mm)

Length

(mm)

Production Quantity

(pieces/set)

Area

(m2/set)

Raw Materials

(m3)

60 610 2270 60 83.0 4.15
75 610 2270 50 69.2 4.50
90 610 2270 42 58.1 4.65
100 610 2270 40 55.3 4.98
120 610 2270 34 47.0 5.17
150 610 2270 28 38.7 5.42
180 610 2270 22 30.4 5.77



5) Automatic Control System: auto feeding; electronic weighing & PLC touch screen One-key Control



VI. Raw Material of sandwich panel   (Lightweight Wall Panel Machine)

 Face board  Calcium silicate board. Width must be 608mm, allowed tolerance is ±2mm.
 EPS  Expandable polystyrene granule
 Sand  SiO2≥98%
 Cement  Ordinary portland cement with grade of 42.5
 Additives  Vanjoin customized additives
 Water  Normal water
 Assistant Material  Wasted machine oil, used to lubricate pressing mould plate, aluminum mould plate



V. Size of Composite Wall Panels (Lightweight Wall Panel Machine)

 Length  2270mm, 2440mm, 3000mm
 Width  610mm
 Thickness

 60mm, 75mm, 90mm, 100mm,120mm, 150mm, 180mm



IV. Application of Sandwich Wall Panels (Lightweight Wall Panel Machine)



Our eps sandwich wall panel are mainly used as interior partition wall and exterior wall,

besides, it can also apply to the roof, floor and fence of house and buildings.



Features of sandwich wall panel:

1. Light weight: 1/6 of traditional brick

2. Area-saving: It can save 4.26m² per 100m²(compare with traditional red brick)

3. Waterproof and Damp-proof

4. Fire-proof: passed National fire test, Grade A, 4 hours 1000 centigrade without damage

5. Sound-insulation: 38dB-48dB

6. Best Hanging force, single point load weight: 50kg

7. Anti-seismic and impact resistance: class 7

8. Environmental: not inlude asbestos

9. Fast construction: two workers 75-80m²/day

10. Heat insulation & preservation

11. Strong and durable, 60-70 years life span.



VII. Photos of Lightweight Wall Panel Machine

1. Foaming Machine        (Lightweight Wall Panel Machine)

Lightweight Wall Panel Machine.jpg

2. Mixing Machine   (Lightweight Wall Panel Machine)

Lightweight Wall Panel Machine.jpg

3. Mould Cars and Railway     (Lightweight Wall Panel Machine)

Lightweight Wall Panel Machine.jpg

4. Fireproof Composite EPS Sandwich Wall Panels   (Lightweight Wall Panel Machine)

Lightweight Wall Panel Machine.jpg
