Modern Cheap Prefabricated Modular Houses EPS Foam Concrete Sandwich Wall Panel

Certification
Good quality EPS Cement Sandwich Panel for sales
Good quality EPS Cement Sandwich Panel for sales
Customer Reviews
I thought no body cares about others any more,but you changed this.

鈥斺 Mana AI Yaseen,Saudi Arabia

I appreciate very much your very kind attention to may request and it give to me a very strong confidence in your company in your services

鈥斺 Alfredo Friedmann,Paraguay

You are so kind and good service.

鈥斺 Samuel,Indonesia

You are star.I want to be your friend

鈥斺 Gert,South Africa

I'm Online Chat Now

Modern Cheap Prefabricated Modular Houses EPS Foam Concrete Sandwich Wall Panel

China Modern Cheap Prefabricated Modular Houses EPS Foam Concrete Sandwich Wall Panel supplier
Modern Cheap Prefabricated Modular Houses EPS Foam Concrete Sandwich Wall Panel supplier Modern Cheap Prefabricated Modular Houses EPS Foam Concrete Sandwich Wall Panel supplier Modern Cheap Prefabricated Modular Houses EPS Foam Concrete Sandwich Wall Panel supplier Modern Cheap Prefabricated Modular Houses EPS Foam Concrete Sandwich Wall Panel supplier

Large Image :  Modern Cheap Prefabricated Modular Houses EPS Foam Concrete Sandwich Wall Panel

Product Details:

Place of Origin: China
Brand Name: Vanjoin
Certification: CE, BV, ISO
Model Number: 100mm EPS Panel

Payment & Shipping Terms:

Minimum Order Quantity: 1X20GP Container free sample available
Price: negotiation
Packaging Details: 1. Free packing ( with normal pallet and normal packing belt ) 2. Standard exporting packing ( wraped with plastic film , edge protect and good pallet )
Delivery Time: 7~10 working days after receive payments
Payment Terms: L/C,T/T,Western Union, D/A,D/P, MoneyGra
Supply Ability: 200000 Square Meter/Square Meters per Mont
Contact Now
Detailed Product Description
Soundproof Nonmetal Concrete Eps Sandwich Wall Panels Flat Apartment Building: Nonmetal Panel Length: 2270mm
Width: 610mm Thickness: 60mm,75mm,90mm,100mm,120mm,150mm
Fireproof: 240 Minutes Under 1000 Degree Application: Internal Wall , External Wall , Roof , Floor
Hanging Force: More Than 50KG Feathures 1: Waterproof , Lightweight ,Energy Saving
Feathures 2: Fire Resistant , Eco-Friendly , Fast Installation Features 3: Space Saving , Save Labor Cost,Heat Insulation
Construction Time: 3 Workers Can Install 75m2 A Day Eco-friendly: 100% No Asbestos, Asbestos Free

Modern Cheap Prefabricated Modular Houses EPS Foam Concrete Sandwich Wall Panel

eps-sandwich-wall-panel

Specification

( Length *Width*Thikcness )

Loading on 20ft

(pcs/m2)

2270mm*610mm*60mm

315pcs / 436 m2

2270mmx610mmx75mm

252pcs/ 349 m2

 2270mmx610mmx90mm

207pcs/ 287 m2

2270mmx610mmx100mm

189pcs/ 262 m2

2270mmx610mmx120mm

153pcs/ 212 m2

2270mmx610mmx150mm

126pcs/ 175m2



2.Raw Material :

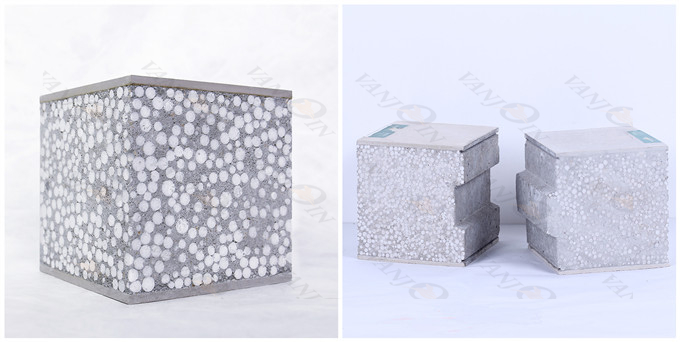

 Face Board : 5mm Calcium Silicon Board (Fiber Cement Board , Mgo Board etc)



 Core Material : Eps , Cement , Sand etc



Features
Fireproof ( at least 2 hours)
Waterproof and weatherproof
Thermal conductivity coefficient 0.0856 W/(mK))
Sound insulation(46dB)
Fast construction(3 workers can install 60m2 a day)
Anti-earthquake( 8-9 degree)
Environment friendly(non-asbestos),etc.

eps-sandwich-wall-panel

3.Usage :



 (1) Internal wall (Partition Wall )



 (2) Exterior Wall



 (3) Roof  ( Need to support by Steel Structure)



 (4) Floor (  Need to support by Steel Structure)



Technology index Metal frame and plaster boad VJ EPS Panel GRC Board Gypsum block
Weight 20kg/m2 35kg/m2(60mm thickness) 40kg/m2 45kg/m2
Sound insulation Almost no excellent,46dB normal poor
Waterproof poor excellent normal poor
Heat insulation no excellent normal normal
Anti-impact capacity/Hanging force no high impact single hanging force is 50KGS can impact,good hanging force can impact,normal hanging force
Decoration difficulty hard,with limiations easy and without any limiations General difficulty General difficulty
Wall thickness 91mm 60mm,increased interior space 60mm 75mm
Useful life 2-3 years 60-70 years 20-30 years 15-20 years
Material secondary use no 80% can be used some available almost no
Construction efficiency faster fast faster faster

eps-sandwich-wall-panel



4. RFQ:



Q1 : How many years your company to produce this kind of wall panel ?

A: 10 years of manufacturing eps cement sandwich wall panels , now we are the TOP1 in middle of China , and among TOP 3 in China in this field .



Q2 : Main market of Vanjoin ?

A: Main market : Asia , South Amercia , Africa South East Asia is our largest market ,Mid East is our second largest market



Q3 : Exporting details :

A: Loading & shipping 400 20ft every month



Q4 : More information of Vanjoin factory ?

A: Land area : 30,000m2

Machines : Fully automatic production line

Productivity : 2,000,000m2 wall panel every year


Q5 : How could I get the samples ?

A: We send you the free wall panel samples , brochures & installation cd etc, you pay for the freight charges .

If you get the TNT , DHL , UPS , Fedex account , that is the best .

If not , you can transfer money to our West Union account ,we send samples by DHL


Q6 : Certificate of Vanjoin

A: We get CE , ISO , BV , certificate for our product

We get other wall panel performance testing report , such as fireproof , sound insulation ,waterproof , heat insulation certificates etc .



Q7 : How to installation the wall panels ?
A: You can watch the installation video on Vanjoin website or send an enquiry



Q8 : How about delivery time ?

A: Normally within 15 days . If you need to ship urgently , can be ship within 7 days .
For large order , with different quantity , will discuss further by e-mail .

You can watch the installation video on Vanjoin website or send an enquiry.

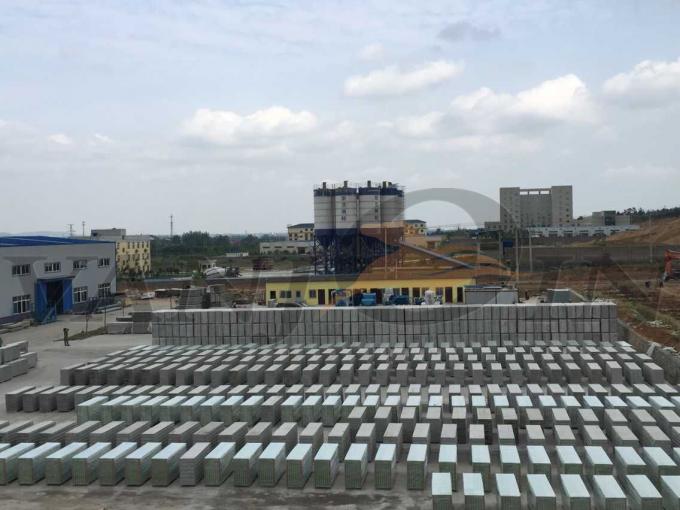

Factory Information

Production area is 40,000m2

Stacking area is 60,000m2

Production capacity is 2,000,000m2 per year

Export quantity is over 400 containers per month
