New Lightweight ECO Building EPS Cement Sandwich Wall Panel

China New Lightweight ECO Building EPS Cement Sandwich Wall Panel supplier
New Lightweight ECO Building EPS Cement Sandwich Wall Panel supplier New Lightweight ECO Building EPS Cement Sandwich Wall Panel supplier New Lightweight ECO Building EPS Cement Sandwich Wall Panel supplier New Lightweight ECO Building EPS Cement Sandwich Wall Panel supplier New Lightweight ECO Building EPS Cement Sandwich Wall Panel supplier

Large Image :  New Lightweight ECO Building EPS Cement Sandwich Wall Panel

Product Details:

Place of Origin: China
Brand Name: Vanjoin
Certification: CE, BV, ISO
Model Number: 60mm EPS Panel

Payment & Shipping Terms:

Minimum Order Quantity: 300 Square Maters
Price: negotiation
Packaging Details: 1. Free packing ( with normal pallet and normal packing belt ) 2. Standard exporting packing ( wraped with plastic film , edge protect and good pallet )
Delivery Time: 7~15 working days after receive payments
Payment Terms: L/C,T/T,Western Union
Supply Ability: 200000 Square Meters per Month
Contact Now
Detailed Product Description
Product Name: Sandwich Wall Panels Core Material: EPS, Cement, Sand, Water, Additive, Etc
Specification: 2270*610*100mm Usage: Exterior And Interior Wall, Floor
Color: Grey Acoustic Performance: 42dB
Weight: 60-65kg/銕 Flexural Strength: 4.27MPa
Construction Time: 3 Workers Can Install 75m2 A Day Eco-friendly: 100% No Asbestos, Asbestos Free

New Lightweight ECO Building EPS Cement Sandwich Wall Panel



eps-sandwich-wall-panel



Name Size(L*W*T)MM Weight(KG) Loading(PCS/M2 per 20ft)



Fast Installation Composite Panel Board Durable Sandwich Wall Panel

2270*610*60 45-48 315 pcs / 436
2270*610*75 50-53 252 pcs / 349
2270*610*90 55-58 207 pcs / 287
2270*610*100 60-65 189 pcs / 262
2270*610*120 65-75 153 pcs / 212
2270*610*150 90-90 126 pcs / 175



Technology Index:





Item

National Standards

Testing Indexes



Thickness

60mm

90mm

120mm

60mm

90mm

120mm

1

Anti-impact Capacity/times

≥5

≥5

≥5

≥8

≥10

≥15

2

Anti-bending damage load/times over deadweight

≥1.5

≥1.5

≥1.5

≥3

≥4

≥5

3

Compressive strength /Mpa

≥3.5

≥3.5

≥3.5

≥5

≥5

≥5

4

Softening coefficient

≥0.80

≥0.80

≥0.80

≥1

≥1

≥1

5

Surface density g/m2

≤70

≤90

≤110

≤55

≤70

≤85

6

Moisture rate  a/%

≤12/10/8

≤10/9/7

7

Drying shrinkage value /mm/m

≤0.6

≤0.6

≤0.6

≤0.45

≤.0.5

≤0.5

8

Hanging Force/N

≥1000

≥1000

≥1000

≥1200

≥1300

≥1500

9

Sound insulation capacity in the air /Db

≥30

≥35

≥40

≥35

≥40

≥45

10

Fire proof limit /h

≥1

≥1

≥1

≥2.5

≥3

≥4

11

Heat transfer coefficient  w/m2.k





≤1.0





≤1.0

12

Radioactivity Limit

≤1

≤1

≤1

≤1

≤1

≤1

13

IRa (Inner radiation indexes)

≤1

≤1

≤1

≤1

≤1

≤1

14

Ir (Outer radiation indexes)

≤1

≤1

≤1

≤1

≤1

≤1





eps-sandwich-wall-panel



Advantages of Vanjoin Sandwich panel:

Light weight: 1 person can take up two pieces of vanjoin panel.

Energy-saving, Eco-friendly: 100% non-asbestos.

Easy to install, fast construction: Can build 75-80銕 per day.

Strong and durable: Long life 60-70 years.

Heat insulation and preservation: Thermal conductivity: 0.221W/mk.

Sound insulation: 42 DB.

Weatherproof; windproof: 70m/s; grade 13.

Fireproof: Our sandwich wall panel can keep well under 1000 degree temperature about 4 hours.

Anti-impact, anti-earthquake: Grade 8.

Best hanging strength : Single point hanging force is > 1200 N.

Weight capacity: 400KG / square meter.

Package: 189 pcs, 262 銕 per 20'ft container.

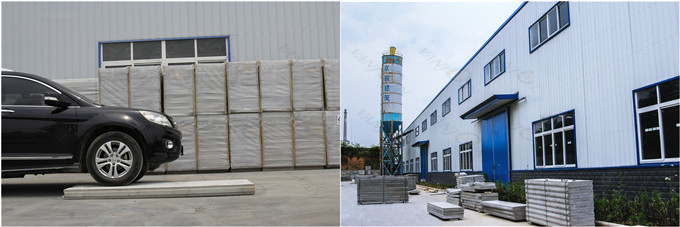

Factory Information

Production area is 40,000m2

Stacking area is 60,000m2

Production capacity is 2,000,000m2 per year

Export quantity is over 400 containers per month

eps-sandwich-wall-panel

RFQ:

Q1 : How many years your company to produce this kind of wall panel ?

A: 10 years of manufacturing eps cement sandwich wall panels , now we are the TOP1 in middle of China , and among TOP 3 in China in this field .

Q2 : Main market of Vanjoin ?

A: Main market : Asia , South Amercia , Africa South East Asia is our largest market ,Mid East is our second largest market

Q3 : Exporting details :

A: Loading & shipping 400 20ft every month

Q4 : More information of Vanjoin factory ?

A: Land area : 30,000m2

Machines : Fully automatic production line

Productivity : 2,000,000m2 wall panel every year


Q5 : How could I get the samples ?

A: We send you the free wall panel samples , brochures & installation cd etc, you pay for the freight charges .

If you get the TNT , DHL , UPS , Fedex account , that is the best .

If not , you can transfer money to our West Union account ,we send samples by DHL


Q6 : Certificate of Vanjoin

A: We get CE , ISO , BV , certificate for our product

We get other wall panel performance testing report , such as fireproof , sound insulation ,waterproof , heat insulation certificates etc .

Q7 : How to installation the wall panels ?
A: You can watch the installation video on Vanjoin website or send an enquiry

Q8 : How about delivery time ?

A: Normally within 15 days . If you need to ship urgently , can be ship within 7 days .
For large order , with different quantity , will discuss further by e-mail .

You can watch the installation video on Vanjoin website or send an enq
