Flexible Clay Material Interior Concrete Wall Panels Thermal Insulation

China Flexible Clay Material Interior Concrete Wall Panels Thermal Insulation supplier
Flexible Clay Material Interior Concrete Wall Panels Thermal Insulation supplier Flexible Clay Material Interior Concrete Wall Panels Thermal Insulation supplier Flexible Clay Material Interior Concrete Wall Panels Thermal Insulation supplier Flexible Clay Material Interior Concrete Wall Panels Thermal Insulation supplier

Large Image :  Flexible Clay Material Interior Concrete Wall Panels Thermal Insulation

Product Details:

Place of Origin: Hubei, China
Brand Name: VANJOIN
Certification: CE/BV/ISO9001/ISO14001/
Model Number: ST-7-1R

Payment & Shipping Terms:

Minimum Order Quantity: 100 sqm
Price: negotiation
Packaging Details: Packed in carton firstly, and then reinforced with wooden case for outer packing
Delivery Time: 15 working days after received your payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50000 square meters per month
Contact Now
Detailed Product Description
Product Name: Flexible Clay Material Tile Thermal Insulation And Decoration Integrated Plate Material: Flexible Clay Material, PU Sandwich, Calcium Silicate Board
Size: 300mm * 600mm; 800mm * 600mm, 1200mm * 600mm, 1220mm *2440mm, Other Size Can Be Customized Thickness: 80mm, Can Be Customized
Color: Natural Colors, More Colors Can Be Customized. Type: Composite Insulation Board, Integrated Plate
Feature: Light Weight, Anti-crack, Waterproof, Anti-pollution, Self-cleaning, Fireproof, Breathable, Heat Insulation, Heat Preservation Application: Exterior Wall Decoration, High-rise Buildings, Facade, Curtain Wall

Flexible Clay Material Tile Thermal Insulation and Decoration Integrated Plate



1. Description:
Thermal insulation and decoration integrated plate, also called composite insulation board, it integrates insulation and decoration functions togeter, it's light weight and easy construction, suitable for old buildings' rebuild, cold and hot area.

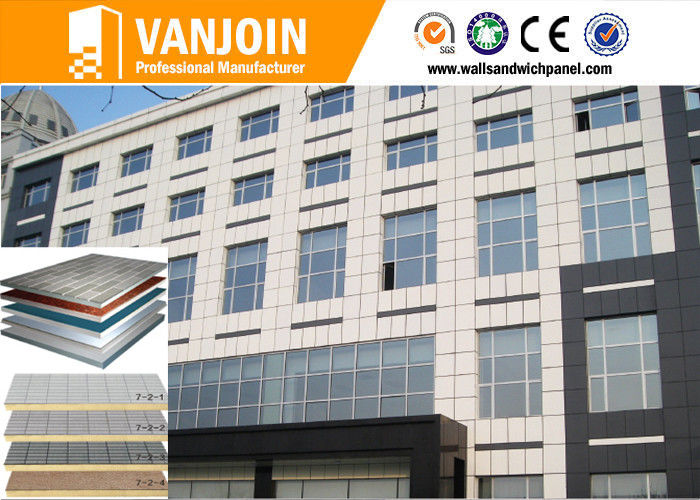

2. Composition:

Integrated plate is composited by 3 parts:

鈥 Facing Layer: Soft ceramic tile (optional);
鈥 Base Plate: Calcium silicate board;
鈥 Insulation Layer: PU


3. Technical Parameter, Feature and Performance:

Integrated

Plate

Technical

Parameter

Material

Flexible Clay Material, PU Sandwich, Calcium Silicate Board

Tile Size

300mm * 600mm; 800mm * 600mm, 1200mm * 600mm, 1220mm *2440mm, Other size can be customized

Thickness

80mm, can be customized

Dimensional Stability

±0.5%

Colors

Natural Colors, More colors can be customized.

Type

Composite insulation board, integrated plate

Capacity

15kg/m2

Fireproof Grade

A Grade

Water Absorbing Capacity

<0.1 With European Indicators

Usage

Exterior Wall Decoration, High-rise Buildings, Facade, Curtain Wall



Face Tile

Feature





Light Weight

1/6 of other tiles

Flexible

Soft and crack-free

Tensile Strength

鈮1.0Mpa

Energy Saving

Low Carbon, Recyclable

Fast Construction

Easy Install, Even can be pasted onto the original wall

or tiles directly.

Safe & healthy

Non-toxic, Non VOC, Eco-friendly, Environmental friendly

Weather

Resistance

Anti Aging, Alkali Resistance, Acid Resistance

UV Resistance

Excellent Ultra violet ray resistance

Fireproof

A-grade, No Naked Flame, No Dense Smoke

Waterproof

Dump proof, Stain Resistance & Self-cleaning

Plasticity

Any Pattern, Any Texture, Any Color

Solid & Firm

Anti-impact, Non Friable

Freezing, thawing resistance

-30~10 Degree 100 Times, No Cracking, No Striping

Breathable

Microporous Structure, Water-repellent and Air

Permeability

Frost-Resistance

After 100 Cycles, No Surface Crack, Flake by naked eye

observation

Color Fastness

Mineral sand natural-born color, No color fading.

Impact Resistance

Soft and Rebound Resilience

Service Life

50+ Years

Flexible Clay Material Interior Concrete Wall Panels Thermal InsulationFlexible Clay Material Interior Concrete Wall Panels Thermal Insulation



4. Advantages of Integrated Plate:

  • 鈥 Light weight,
  • 鈥 Short construction time,
  • 鈥 Thermal insulation, heat preservation,
  • 鈥 Stable performation,
  • 鈥 Dropping free,
  • 鈥 Crack free,
  • 鈥 Waterproof,
  • 鈥 Fireproof.



5. Comparison with Other Materials:







Vanjoin

Flexible Face Tile

Ceramic

Tile

Marble

slab

Aluminum

Plastic Panel

Glass Curtain

Wall

Paint

Weight/ kg/m2

1.5-8

20-60

30-60

9-20

20-50

1.5-5

Flexibility

×

×

×

×

Normal

Representability

Colorful,

All kinds of











Surface texture

Colorful,

All kinds of texture

Normal

×

×

Colorful,

little kind of  texture



Safety

×

×

Normal

×

Water-repellent

Installation Cost

Cheap

Normal

Expensive

Expensive

Expensive

Cheap

Air permeability

×

×

×

×

Normal

Service life

≥50years

≥30years

≥30years

≥10years

≥25years

≥10years



6. Installation and Construction:

  1. 鈥 After basic level processing, setting line, snap the line for positioning.
  2. 鈥 Apply cement mortar on the bottom side and paste the plate onto the wall.
  3. 鈥 Use achorage parts to connect the plates.
  4. 鈥 Jointing the gaps.
  5. 鈥 Completed results after finish construction.





7. Applications:

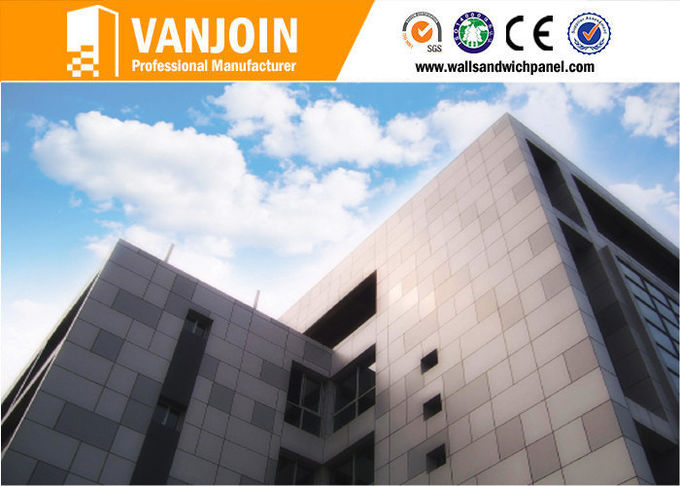

Vanjoin thermal insulation and decoration integrated plate mainly be used as exterior wall decoration, facade, curtain wall, especially for high-rise buildings, etc.

Business Organizations

supermarket, large-scale shopping malls, exclusive agency, chain shops,

large-scale sales, star-rated hotels, restaurants, travel agencies, pharmacy.

Financial Organizations

Banks, negotiable securities, funds, insurance companies, pawnshops;

Non-profit Organizations: Telecommunications, post offices, hospital, schools;

Public Places

subway, airports, stations, gas stations, toll stations, bookstores, parks,

exhibition halls, stadiums,museums, convention centers, ticket agencies,

HR market, lottery centers; Real Estate Property:

Apartments, villas, offices, commercial buildings, model rooms, property brokers;

Entertainments

Movie theaters, fitness halls, country clubs, clubs, massage rooms, bars,

cafes, Internet bars, beauty shops, golf course
