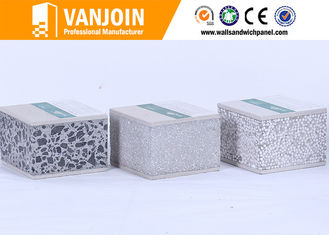

Waterproof Sound Insulation Composite Wall Board Fireproof , Exterior Wall Panels

China Waterproof  Sound Insulation Composite Wall Board Fireproof , Exterior Wall Panels supplier
Waterproof  Sound Insulation Composite Wall Board Fireproof , Exterior Wall Panels supplier Waterproof  Sound Insulation Composite Wall Board Fireproof , Exterior Wall Panels supplier Waterproof  Sound Insulation Composite Wall Board Fireproof , Exterior Wall Panels supplier Waterproof  Sound Insulation Composite Wall Board Fireproof , Exterior Wall Panels supplier

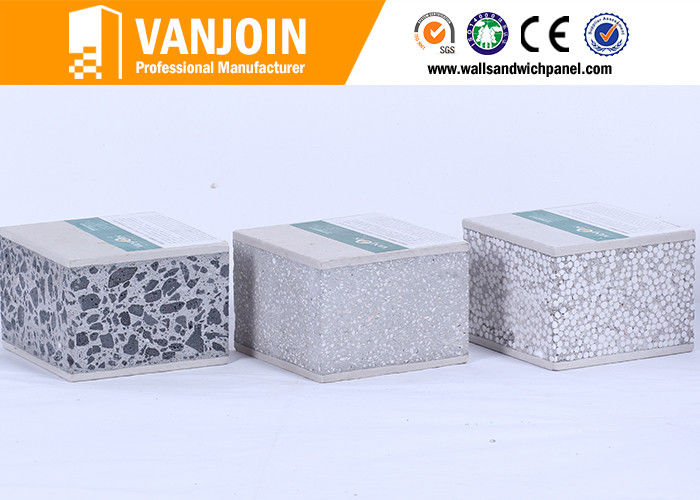

Large Image :  Waterproof Sound Insulation Composite Wall Board Fireproof , Exterior Wall Panels

Product Details:

Place of Origin: China
Brand Name: Vanjoin
Certification: CE, BV, ISO
Model Number: VJ-WPE-01

Payment & Shipping Terms:

Minimum Order Quantity: 300Square Meter free sample available
Price: negotiation
Packaging Details: 1. Free packing ( with normal pallet and normal packing belt ) 2. Standard exporting packing ( wraped with plastic film , edge protect and good pallet )
Delivery Time: 7~10 working days after receive payments
Payment Terms: L/C,T/T,Paypal,Western Union, D/A,D/P
Supply Ability: 200000 Square Meter/Square Meters per Mont
Contact Now
Detailed Product Description
Product Name: Composite Panel Board Stand Size:(L*W*T): 2270*610*60/75/90/100/120/150mm
Core Material: EPS, Cement, Sand, Water, Additive, Etc Surface Panel: Calicium Silicon Board
Advantages: Waterproof, Fireproof, Sound Insulation, Heat Insulation Panel Fireproof: Under 1000 Degree For 4 Hours Without Damage To The Wall
Thermal Conductivity: 0.221W/mK Service Life: 60-70 Years
Anti-earthquake: Class 8

Waterproof Lightweight Sound Insulation Composite Panel Board Fireproof



> 1. Composition of Composite Panel Board:



Core materials cement, EPS, sand and additives.
Surface materials fiber reinforced calcium silicate board or cement calcium silicate Board.



> 2. Specification of Composite Panel Board:



• Thickness: 60, 75, 90, 100, 120, 150mm
• Width: 610mm
• Length: 2270mm (custom-made length can be made for volumn order)



Waterproof  Sound Insulation Composite Wall Board Fireproof , Exterior Wall Panels


 Remark: All kinds of panels can be customized by customers' specific requirement.



3 >. Performance Index of Composite Panel Board:



O.

Item

National Standards

Testing Results

60mm

90mm

120mm

60mm

90mm

120mm

1

Anti-impact performance/times

≥5

≥5

≥5

≥6

≥6

≥10

2

Anti-bending damage load/times
over deadweight

≥1.5

≥1.5

≥1.5

≥3

≥3

≥3

3

Anti-pressure strength /Mpa

≥3.5

≥3.5

≥3.5

≥6

≥6

≥6

4

Surface density kg/m2

≤70

≤90

≤110

≤45

≤54

≤66

5

Single point hanging
Strength /N

≥1000

≥1000

≥1000

≥1000

≥1200

≥1300

6

Fire proof limit /h

≥1

≥1

≥1

≥3

≥3

≥4

7

Sound insulation capacity
in the air /Db

≥30

≥35

≥40

≥35

≥40

≥45

8

Soften coefficient

≥0.80

≥0.80

≥0.80

≥1

≥1

≥1

9

Moisture rate  a/%

≤12

≤10

≤10

≤10

≤9

≤7

10

Heat transfer coefficient
w/m2.k

≤2.0

≤2.0

≤2.0

≤1.0

≤0.6

≤0.5

11

Drying shrinkage  /mm/m

≤0.6

≤0.6

≤0.6

≤0.45

≤.0.5

≤0.5

12

Inner radiation index

≤1

≤1

≤1

≤1

≤1

≤1

13

Outer radiation index

≤1

≤1

≤1

≤1

≤1

≤1

14

Radioactivity Limit

≤1

≤1

≤1

≤1

≤1

≤1





> 4. Features and Advantages of Composite Panel Board:



Interior/Exterior

Sandwich Panel

Fast construction

75-80m2/day three workman

Sound insulation

46dB

Space saving

Save 4.26m2 per 100 m2 area

Anti-seismic

Class 7-8

Fireproof

4 hours, under 1000 degree centigrade

Eco-friendly

100% non-asbestos

Hanging force

Single point hanging force 50kg, Embed hanging force 150kg

Service Life

60-70years





> 5. Installation of Composite Panel Board:



1. Setting the line and carrying
the board in position

Eject double lines of board thickness up and down the axes
of installed wall board, and easily carry to the side of wall
according to the specification needed;

2. Sawing board

Using hand-hold electric saw to cut freely according to the
 wall specification.

3. Sizing

Sizing cement on tenon side of two boards, then  spread
polymer mortar on the tenon side casually;

4. Installation

Carrying the board prepared to be installed to the
installation place, correcting the wall board by
gavelock and making it close tightly, and let the
polymer mortar squeeze out into full and fixing
it with a chock temporarily;

5. Correcting, fixing

Using the guiding rule of two meters to check the
verticality and leveling correction. Then using 6mm
or 8mm reinforcing steel bar and ribs adding with
construction sealant to fix;

6. Grouting and filling starch

Filling the strickling the corrected wall board with
polymer mortar, filling the big gap with pea gravel
concrete;

7. Sticking fiberglass mesh

(we can supply )

After the polymer (for filling the gaps) and Wall are
shaped, sticking fiberglass mesh on the whole wall
with anti-crack mortar.

8. Installing electrical wires

and switches

Setting lines on the places needing to be set with
concealed wire and switch box, then cut a groove
by hand-hold electric saw, filling with polymer mortar
after installation

9. Installing doorcase

Preparing door and window holes on the installed wall,
anchoraging by splint or lines.

10. Facing coating and wall papers

Scraping putty directly without plastering on the installed
wall, then brushing coating and sticking wall paper

11. Facing ceramic tile,decorative

 sheet

Sticking ceramic tiles or other wood facing panels
casually without plastering on installed wall.

12. Electric apparatus installation

Install lights, furniture, air-conditioners casually on
installed room ,can be nailed or hanged
