Heat Resistant Eps Cement Composite Panel Board Green Construction Material

China Heat Resistant Eps Cement Composite Panel Board Green Construction Material supplier
Heat Resistant Eps Cement Composite Panel Board Green Construction Material supplier Heat Resistant Eps Cement Composite Panel Board Green Construction Material supplier Heat Resistant Eps Cement Composite Panel Board Green Construction Material supplier

Large Image :  Heat Resistant Eps Cement Composite Panel Board Green Construction Material

Product Details:

Place of Origin: China
Brand Name: Vanjoin
Certification: CE, BV, ISO
Model Number: VJ-WL-WP-151

Payment & Shipping Terms:

Minimum Order Quantity: 1X20GP Container free sample available
Price: negotiation
Packaging Details: 1. Free packing ( with normal pallet and normal packing belt ) 2. Standard exporting packing ( wraped with plastic film , edge protect and good pallet )
Delivery Time: 7~10 working days after receive payments
Payment Terms: L/C,T/T,Western Union, D/A,D/P, MoneyGra
Supply Ability: 200000 Square Meter/Square Meters per Mont
Contact Now
Detailed Product Description
Features: Fast Construction, Anti-earthquake, Light Weight, Save Space Specification(L*W*T): 2270*610*60/75/90/100/120/150mm
Service Life: 60-70 Years Advantages 1: Lightweight , Eco-friendly
Usage: Exterior Wall, Interior Wall, Roof, Floor Face Board: Calcium Silicon Board 5mm
Core Material: EPS, Cement, Sand, Water, Additive, Etc Fire Resistant: 4 Hours Under 1000 Degree

Heat Resistant Eps Cement Composite Panel Board Green Construction Material

1.  Usage :

 (1) Internal wall (Partition Wall )

 (2) Exterior Wall

 (3) Roof

 (4) Floor

2 . Size of wall Panel


Name

Size(L*W*T)mm

Weight (kg/m2)

Packing(pcs/m2 20’GP)

Application

EPS Cement sandwich
wall panel


2270x610x60

45-48

315 pcs /436 m2

Roof, interior wall

2270x610x75

50-53

252pcs / 349 m2

Interior wall

2270x610x90

55-58

207pcs / 287 m2

Interior/exterior wall

2270x610x100

60-65

189pcs / 262 m2

Interior/exterior wall

2270x610x120

65-75

153pcs / 212 m2

Exterior wall

2270x610x150

80-90

126pcs / 175 m2

Exterior wall


3.Advantages of Vanjoin Sandwich panel:

Light weight: 1 person can take up two pieces of vanjoin panel.

Energy-saving, Eco-friendly: 100% non-asbestos.

Easy to install, fast construction: Can build 75-80銕 per day.

Strong and durable: Long life 60-70 years.

Heat insulation and preservation: Thermal conductivity: 0.221W/mk.

Sound insulation: 42 DB.

Weatherproof; windproof: 70m/s; grade 13.

Fireproof: Our sandwich wall panel can keep well under 1000 degree temperature about 4 hours.

Anti-impact, anti-earthquake: Grade 8.

Best hanging strength : Single point hanging force is > 1200 N.

Weight capacity: 400KG / square meter.

4 . Installation of EPS Cement Wall Panel:

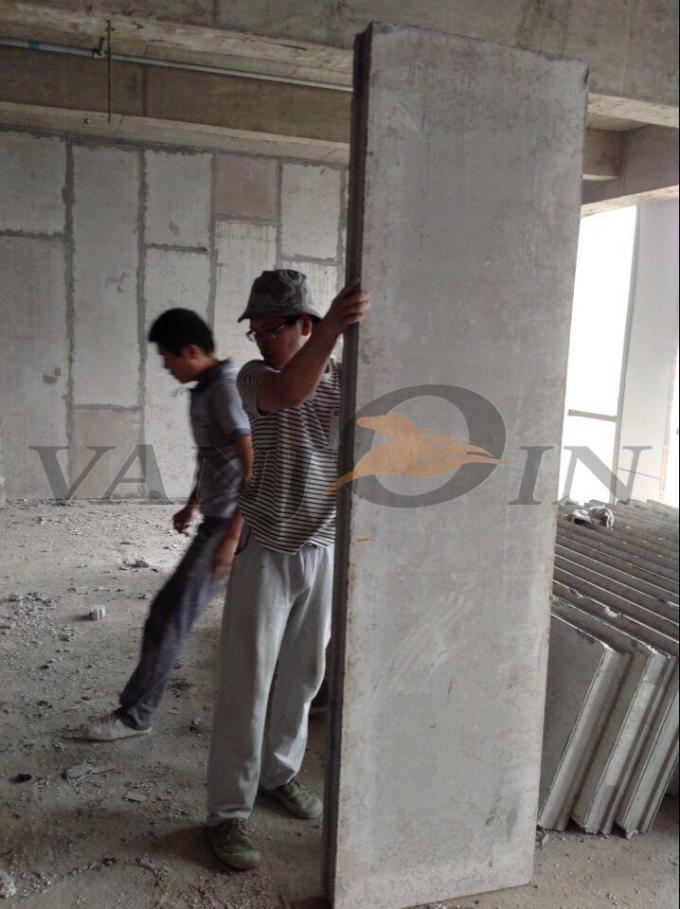

1. Setting the line and carrying
the board in position

Eject double lines of board thickness up and down the axes
of installed wall board, and easily carry to the side of wall
according to the specification needed;

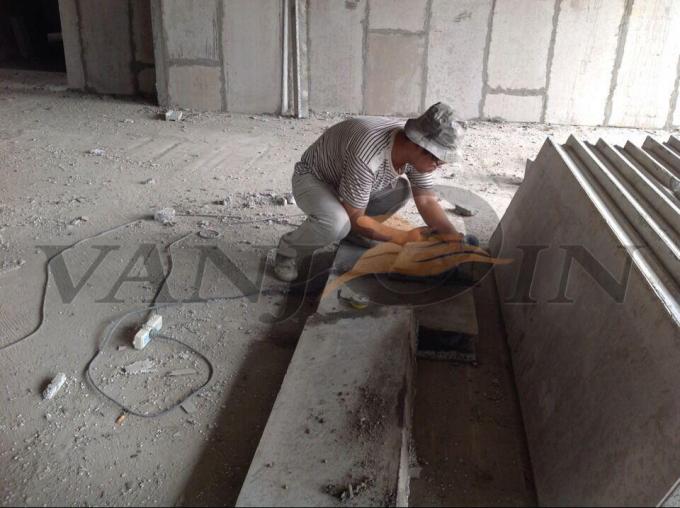

2. Sawing board

Using hand-hold electric saw to cut freely according to the
 wall specification.

3. Sizing

Sizing cement on tenon side of two boards, then  spread
polymer mortar on the tenon side casually;

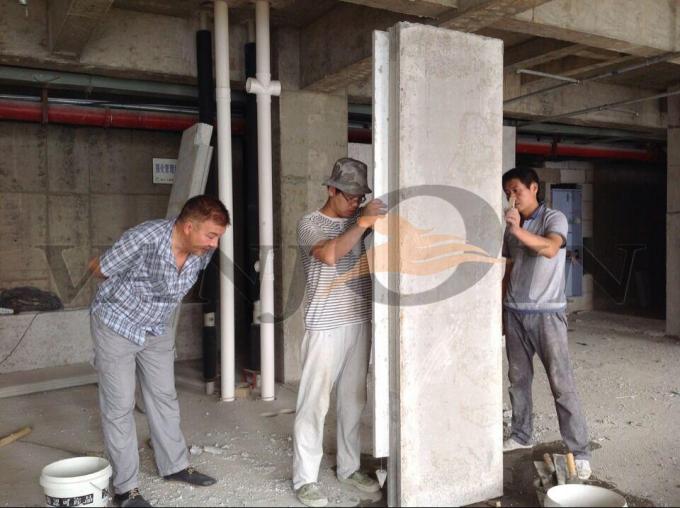

4. Installation

Carrying the board prepared to be installed to the
installation place, correcting the wall board by
gavelock and making it close tightly, and let the
polymer mortar squeeze out into full and fixing
it with a chock temporarily;

5. Correcting, fixing

Using the guiding rule of two meters to check the
verticality and leveling correction. Then using 6mm
or 8mm reinforcing steel bar and ribs adding with
construction sealant to fix;

6. Grouting and filling starch

Filling the strickling the corrected wall board with
polymer mortar, filling the big gap with pea gravel
concrete;

7. Sticking fiberglass mesh (we can supply )

After the polymer (for filling the gaps) and Wall are
shaped, sticking fiberglass mesh on the whole wall
with anti-crack mortar.

8. Installing electrical wires and switches

Setting lines on the places needing to be set with
concealed wire and switch box, then cut a groove
by hand-hold electric saw, filling with polymer mortar
after installation

9. Installing doorcase

Preparing door and window holes on the installed wall,
anchoraging by splint or lines.

10. Facing coating and wall papers

Scraping putty directly without plastering on the installed
wall, then brushing coating and sticking wall paper

11. Facing ceramic tile,decorative sheet

Sticking ceramic tiles or other wood facing panels
casually without plastering on installed wall.

12. Electric apparatus installation

Install lights, furniture, air-conditioners casually on
installed room ,can be nailed or hanged
