Product Details:
Payment & Shipping Terms:
|
| Length: | 2270mm | Anti-seismic: | 8-9 Degree |
|---|---|---|---|
| Fireproof: | 4 Hours | Soundproof: | 46dB |
| Usage: | Interior Wall, Exterior Wall, Floor, Roof | Application: | School, Office, Villa, Shop, Different House And Buildings |
| Panel Type: | Compound Panel | Feature: | Green, Environmental |
| Advantage: | Heat Insulation, Lightweight | Overseas Service: | Available |

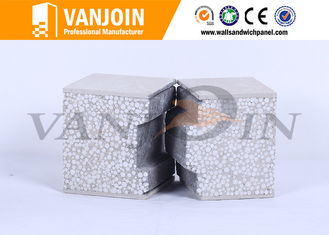

Heat Insulation Composite Panel Board Lightweight Wall Board For Villa House
1. Quick Information
Type | Composite panel board |
Material | Face boards are calcium silicate board, inner materials are eps foam, cement, sand, additives, etc. |
Size | Standard length 2270mm, width 610mm, thickness 60mm,75mm,90mm,100mm,120mm,150mm. |
Application | External and internal wall for various houses and buildings |
Joining Method | Tongue & groove type |
Supply ability | 200,000m2 per month. |
Delivery time | Usually 7 days after receiving prepayment. |
Payment terms | T/T, L/C. |
Packing | Exporting standard pallets |
Samples | Free samples are available. |
Certificates | CE,ISO,,BV, with test reports and patents |
2. Specification and Weight and Loading Information
Name | Size(L*W*T)MM | Weight(KG/M2) | Loading(PCS/M2 per 20ft) |
Fast Installation Composite Panel Board Durable Sandwich Wall Panel | 2270*610*60 | 45-48 | 315 / 436 |
2270*610*75 | 50-53 | 252 / 349 | |
2270*610*90 | 55-58 | 207 / 287 | |
2270*610*100 | 60-65 | 189 / 262 | |
2270*610*120 | 65-75 | 153 / 212 | |
2270*610*150 | 80-90 | 126 / 175 |
3. Advantages
Lightweight | 1 person can carry panel easily |
Eco-friendly | 100% non-asbestos |
Fast Construction | 3 workers can install 60-80m2 per day |
Strong,Durable and Long Lifespan | 70 years |
Sound Insulation | 42-46 dB |
Windproof | 65m/s |
Fireproof | 4 hours |
Anti-earthquake | Grade 8-9 |
Best hanging force | Single point hanging force is 50kg |
Weight capacity | 650KG / square meter |
4. Installation Process
1). Setting the line and carring the board in position
2). Sawing board
3). Sizing, sizing cement mortar on the side of panels
4). Installation, carry panel, correct panel and fix panel
5). Correcting and fixing
6). Grouting and filling starch
7). Sticking fiberglass mesh
8). installing electricity wire and switches
9). Installing doorcase
10). Facing coating and wall papers
11). Facing flexible soft ceramic tile
12). Electric apparatus installation
5. Application
Interior wall system, with advantages of sound insulation, best hanging force, waterproof.
Exterior wall system, with advantages of weatherproof, heat insulation, fast construction.
Roof system, with advantages of lightweight, waterproof, heat insulation, high safety
Floor systme, with advantages of high strength, sound insulation, durable
