Styrofoam ceramsite eps cement sandwich wall panel insulation Eco - friendly

Large Image : Styrofoam ceramsite eps cement sandwich wall panel insulation Eco - friendly

Product Details:

Place of Origin:	China
Brand Name:	Vanjoin
Certification:	CE, BV, ISO
Model Number:	WP-9-5R

Payment & Shipping Terms:

Minimum Order Quantity:	Two 20GP
Price:	negotiation
Packaging Details:	Standard exporting packing (wrapped with plastic thin film, edge protect and good pallet)
Delivery Time:	15 working days after received the payment
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	200,000 sqm per month

Detailed Product Description

Product Name:	Styrofoam Eps Ceramsite Ceramic Sandwich Wall Panel Insulation Wall	Sandwich Core:	Styrofoam, Eps, Ceramsite, Ceramic
Type:	Composite Sandwich Panel, Insulation Panel	Fireproof:	Grade A
Waterproof:	Excellent	Soundproof:	Excellent, 46dB
Eco-friendly:	100% Non-asbestos	Usage:	Roof, Floor, Interior Wall, Exterior Wall, Prefab House, High-rise Building, Villa

Styrofoam ceramsite eps cement sandwich wall panel insulation Eco - friendly

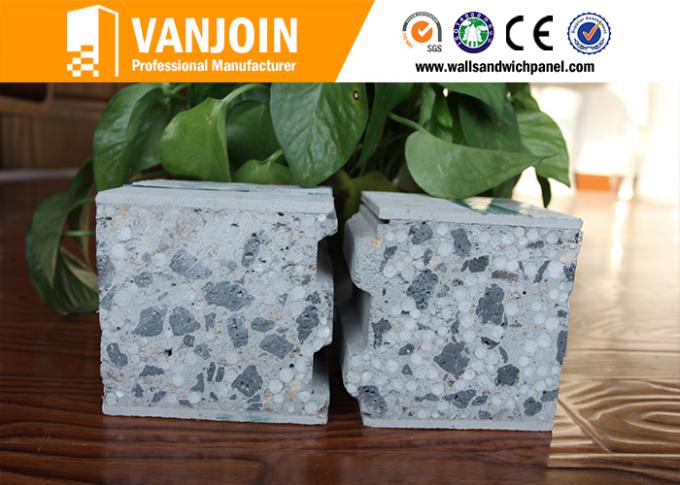

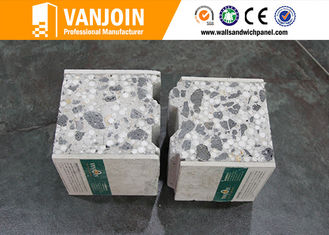

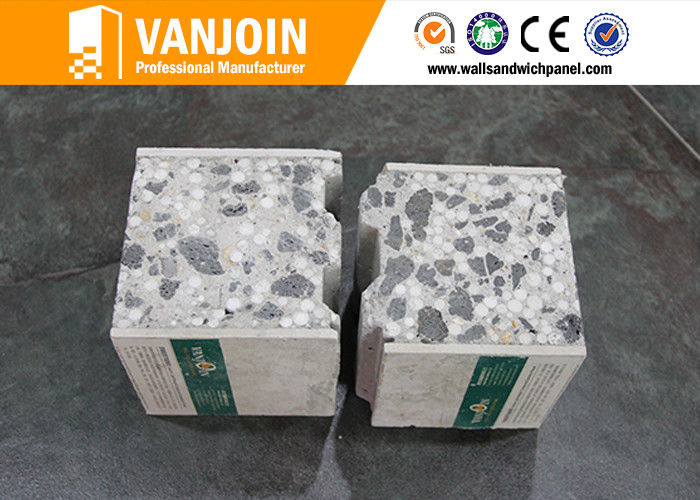

1. Composition

Double sides surface boards, (calcium silicate boards);

Sandwich core material:

Eps beads, (expandable polystyrene foam);

Ceramicite, ceramsite, ceramic

Cement;

Sand;

Vanjoin patented additive

Styrofoam ceramsite eps cement sandwich wall panel insulation Eco - friendly

2. Specification

Length * Width * Thichness (mm)

2270*610*60

2270*610*75

2270*610*90

2270*610*100

2270*610*120

2270*610*150

3.Features

Name	Features
Light weight	Capacity 650kg/m3, 1/6 of traditional wall with same volume
Space saving	Save 4.26m2 per 100 m2
Waterproof	Excellent
Fireproof	A Grade,4 hours 1000 degree fire
Sound Insulation	46dB, soundproof, sound absorption
Hanging force	Single point hanging force 50kg while embed hanging force can exceed 150kg
Windproof	75m/s; 270km/h
Anti-seismic	Class 8, anti earthquake
Anti-impact	High strength, 1.5 times of traditional wall
Fast construction	8~10 times of traditional wall, easy decoration
Eco-friendly	100% no asbestos, asbestos free
Service Life	60-70 years life span

Styrofoam ceramsite eps cement sandwich wall panel insulation Eco - friendly

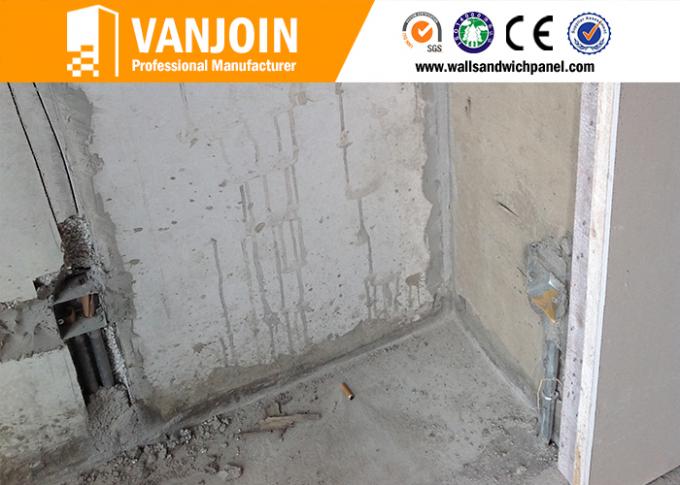

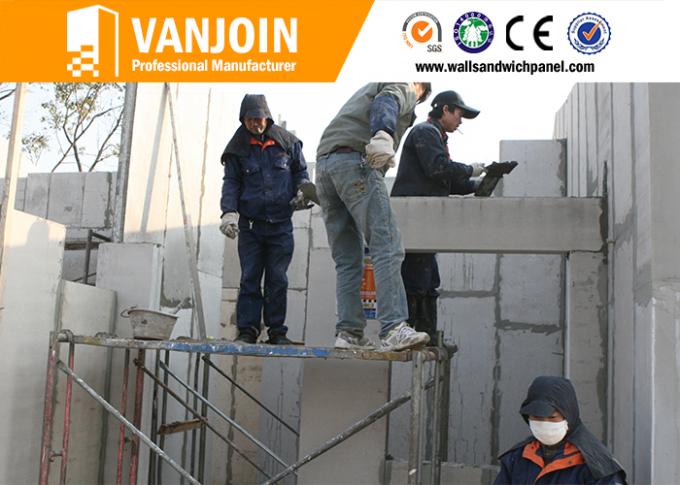

4. Installation
Setting the line and carrying the board in position;

Sawing board basing on requirement;

Sizing cement on tenon side of two boards;

Carrying the board prepared to be installed to the installation place, correcting the wall board by gavelock and making it close tightly;

Grouting and filling starch;

Sticking fiber glass mesh;

Apply putty powder and level up;

Finished.

Styrofoam ceramsite eps cement sandwich wall panel insulation Eco - friendly
5. Packing and Shipping

	Specification (LWT)(mm)	Weight (kg/m2)	Packing (pcs/m2 per 20’GP)	Application
Ceramic Sytrofoam Sandwich Wall Panel	227061060	45~48	315pcs/436m2	Roof system
	227061075	50~53	252pcs/349m2	Floor system
	227061090	55~58	207pcs/287m2	Interior/Exterior wall
	2270610100	60~65	189pcs/262m2	Interior/Exterior wall
	2270610120	65~75	153pcs/212m2	Exterior wall
	2270610150	80~90	126pcs/175m2	Exterior wall

Styrofoam ceramsite eps cement sandwich wall panel insulation Eco - friendly
6. Application:

Eps cement panels can be widely used as roof, floor, interior wall, exterior wall, prefab house, high-rise building, villa, etc.

Business Organizations	supermarket, large-scale shopping malls, exclusive agency, chain shops, large-scale sales, star-rated hotels, restaurants, travel agencies, pharmacy.
Financial Organizations	Banks, negotiable securities, funds, insurance companies, pawnshops; Non-profit Organizations: Telecommunications, post offices, hospital, schools;
Public Places	subway, airports, stations, gas stations, toll stations, bookstores, parks, exhibition halls, stadiums,museums, convention centers, ticket agencies, HR market, lottery centers; Real Estate Property: Apartments, villas, offices, commercial buildings, model rooms;
Entertainments	Movie theaters, fitness halls, country clubs, clubs, massage rooms, bars, cafes, Internet bars, beauty shops, golf course
