Lowest Price Easy Panel Installation Eps Sandwich Install Wall For Hotel Building

China Lowest Price Easy Panel Installation Eps Sandwich Install Wall For Hotel Building supplier
Lowest Price Easy Panel Installation Eps Sandwich Install Wall For Hotel Building supplier Lowest Price Easy Panel Installation Eps Sandwich Install Wall For Hotel Building supplier Lowest Price Easy Panel Installation Eps Sandwich Install Wall For Hotel Building supplier Lowest Price Easy Panel Installation Eps Sandwich Install Wall For Hotel Building supplier Lowest Price Easy Panel Installation Eps Sandwich Install Wall For Hotel Building supplier

Large Image :  Lowest Price Easy Panel Installation Eps Sandwich Install Wall For Hotel Building

Product Details:

Place of Origin: China
Brand Name: Vanjoin
Certification: CE, BV, ISO
Model Number: 60mm EPS Panel

Payment & Shipping Terms:

Minimum Order Quantity: 300m2
Price: negotiation
Packaging Details: Standard Exporting Packing with EPE foam film,plastic thin film, edge protect, packing belt, good pallet.
Delivery Time: 7 working days after receiving prepayment.
Payment Terms: L/C, T/T
Supply Ability: 200,000m2/month
Contact Now
Detailed Product Description
Face Board: Calcium Silicate Board Cor Materials: EPS, Cement, Sand, Additives
Standard Length: 2270mm Standard Width: 610mm
Standard Thickness: 60mm, 75mm, 90mm, 100mm, 120mm, 150mm Application: Interior Wall, Exterior Wall, Flooring, Roofing
Fireproof: 4 Hours Sound Insulation: 46dB
Construction Efficiency: 3 Workers Can Install 75m2 Per Day Weight Capacity: 650kgs/m3
Construction Time: 3 Workers Can Install 75m2 A Day

Lowest Price Easy Panel Installation Eps Sandwich Install Wall For Hotel Building



eps-sandwich-wall-panel



EPS Panel Package:





Name

Size(L*W*T)MM

Weight(KG)

Loading(PCS/M2 per 20ft)



Fast Installation Composite Panel Board Durable Sandwich Wall Panel

2270*610*60

45-48

315 pcs / 436

2270*610*75

50-53

252 pcs / 349

2270*610*90

55-58

207 pcs / 287

2270*610*100

60-65

189 pcs / 262

2270*610*120

65-75

153 pcs / 212

2270*610*150

90-90

126 pcs / 175



Features



Fireproof ( at least 2 hours)
Waterproof and weatherproof
Thermal conductivity coefficient 0.0856 W/(mK))
Sound insulation(46dB)
Fast construction(3 workers can install 60m2 a day)
Anti-earthquake( 8-9 degree)
Environment friendly(non-asbestos),etc.

Technology index Metal frame and plaster boad VJ EPS Panel GRC Board Gypsum block
Weight 20kg/m2 35kg/m2(60mm thickness) 40kg/m2 45kg/m2
Sound insulation Almost no excellent,46dB normal poor
Waterproof poor excellent normal poor
Heat insulation no excellent normal normal
Anti-impact capacity/Hanging force no high impact single hanging force is 50KGS can impact,good hanging force can impact,normal hanging force
Decoration difficulty hard,with limiations easy and without any limiations General difficulty General difficulty
Wall thickness 91mm 60mm,increased interior space 60mm 75mm
Useful life 2-3 years 60-70 years 20-30 years 15-20 years
Material secondary use no 80% can be used some available almost no
Construction efficiency faster fast faster faster



eps-sandwich-wall-panel

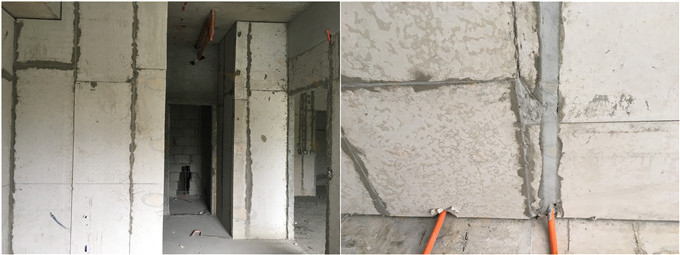

Installation Process



1). Setting the line and carring the board in position

2). Sawing board

3). Sizing, sizing cement mortar on the side of panels

4). Installation,  carry panel, correct panel and fix panel

5). Correcting and fixing

6). Grouting and filling starch

7). Sticking fiberglass mesh

8). installing electricity wire and switches

9). Installing doorcase

10). Facing coating and wall papers

11). Facing flexible soft ceramic tile

12). Electric apparatus installation



RFQ:

Q1 : How many years your company to produce this kind of wall panel ?

A: 10 years of manufacturing eps cement sandwich wall panels , now we are the TOP1 in middle of China , and among TOP 3 in China in this field .

Q2 : Main market of Vanjoin ?

A: Main market : Asia , South Amercia , Africa South East Asia is our largest market ,Mid East is our second largest market

Q3 : Exporting details :

A: Loading & shipping 400 20ft every month

Q4 : More information of Vanjoin factory ?

A: Land area : 30,000m2

Machines : Fully automatic production line

Productivity : 2,000,000m2 wall panel every year


Q5 : How could I get the samples ?

A: We send you the free wall panel samples , brochures & installation cd etc, you pay for the freight charges .

If you get the TNT , DHL , UPS , Fedex account , that is the best .

If not , you can transfer money to our West Union account ,we send samples by DHL


Q6 : Certificate of Vanjoin

A: We get CE , ISO , BV , certificate for our product

We get other wall panel performance testing report , such as fireproof , sound insulation ,waterproof , heat insulation certificates etc .

Q7 : How to installation the wall panels ?
A: You can watch the installation video on Vanjoin website or send an enquiry

Q8 : How about delivery time ?

A: Normally within 15 days . If you need to ship urgently , can be ship within 7 days .
For large order , with different quantity , will discuss further by e-mail .

You can watch the installation video on Vanjoin website or send an enq

eps-sandwich-wall-panel

Factory Information



Production area is 40,000m2

Stacking area is 60,000m2

Production capacity is 2,000,000m2 per year

Export quantity is over 400 containers per month


Company Information

We are a manufacturing and trading combo for lightweight sandwich wall panels in Wuhan China,with 10 years full experience and a professional sales team.



We have exported to over 50 countries, with high quality and moderate price.
