Product Details:
Payment & Shipping Terms:
|
| Specification(L*W*T): | 2270*610*60/75/90/100/120/150mm | Surface Pane: | Alicium Silicon Board |
|---|---|---|---|
| Core Material: | EPS, Cement, Sand, Water, Additive, Etc | Product Name: | Foam Cement Eps Composite Sandwich Wall Panels For House Interior Exterior Wall |
| Advantages: | Waterproof,Sound Insulation, Heat Insulation | Fireproof: | Under 1000 Degree For 4 Hours Without Damage To The Wall |
| Service Life: | 60-70 Years | Anti-earthquake: | Class 8 |
| Soundproof Performance: | 46dB | Advantages 2: | Lightweight , Eco-friendly |
| Construction Time: | 3 Workers Can Install 75m2 A Day |
Lightweight Concrete Eps Fiber Cement Board Sandwich Wall Panel
Advantages of Vanjoin Sandwich panel:
1. Light weight: 1 person can take up two pieces of vanjoin panel.
2. Energy-saving, Eco-friendly: 100% non-asbestos.
3. Easy to install, fast construction: Can build 75-80㎡ per day.
4. Strong and durable: Long life 60-70 years.
5. Heat insulation and preservation: Thermal conductivity: 0.221W/mk.
6. Sound insulation: 42 DB.
7. Weatherproof; windproof: 70m/s; grade 13.
8. Fireproof: Our sandwich wall panel can keep well under 1000 degree temperature about 4 hours.
9. Anti-impact, anti-earthquake: Grade 8.
10. Best hanging strength : Single point hanging force is > 1200 N.
11. Weight capacity: 400KG / square meter.
12. Package: 189 pcs, 262 ㎡ per 20'ft container.
|
Specification ( Length *Width*Thikcness ) |
Loading on 20ft (pcs/m2) |
Usage of Different Thickness |
|
2270mm*610mm*60mm |
315pcs / 436 m2 |
Internal wall & Roof |
|
2270mmx610mmx75mm |
252pcs/ 349 m2 |
Internal wall |
|
2270mmx610mmx90mm |
207pcs/ 287 m2 |
|
|
2270mmx610mmx100mm |
189pcs/ 262 m2 |
Internal & External wall |
|
2270mmx610mmx120mm |
153pcs/ 212 m2 |
External wall |
|
2270mmx610mmx150mm |
126pcs/ 175m2 |
EPS Wall Panel Compare:
| Technology index | Metal frame and plaster boad | Vanjoin EPS Panel | GRC Board | Gypsum block |
| Weight | 20kg/m2 | 35kg/m2(60mm thickness) | 40kg/m2 | 45kg/m2 |
| Sound insulation | Almost no | excellent,46dB | normal | poor |
| Waterproof | poor | excellent | normal | poor |
| Heat insulation | no | excellent | normal | normal |
| Anti-impact capacity/Hanging force | no | high impact single hanging force is 50KGS | can impact,good hanging force | can impact,normal hanging force |
| Decoration difficulty | hard,with limiations | easy and without any limiations | General difficulty | General difficulty |
| Wall thickness | 91mm | 60mm,increased interior space | 60mm | 75mm |
| Useful life | 2-3 years | 60-70 years | 20-30 years | 15-20 years |
| Material secondary use | no | 80% can be used | some available | almost no |
| Construction efficiency | faster | fast | faster | faster |
3. EPS Sandwich Wall Panel For Roof , Internal Wall , External Wall & Floor
(1) Can replace construction materials such as red brick, concrete block, Cement Block Etc
(2) For interior and exterior wall on steel or concrete structure building
(3)It can widely be applied to wall materials of various high and low buildings such as hotel,apartment,
tower,mall,bank,office building,hospital,school villa,old house reconstruction,residence and workshop,etc

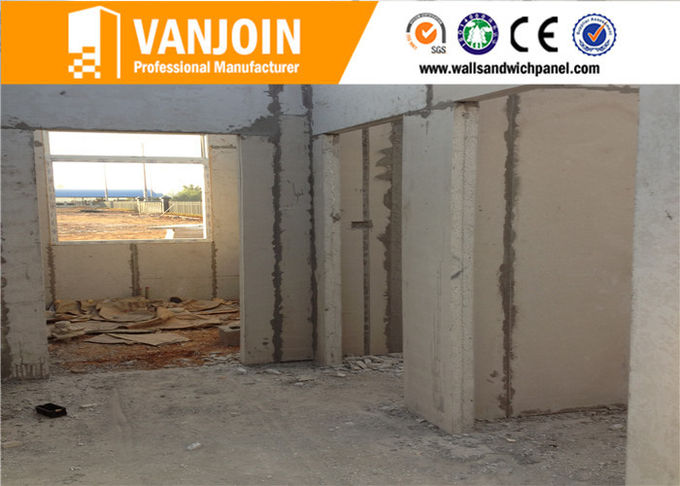

4. Internal Wall ( Interior Partition Wall) :

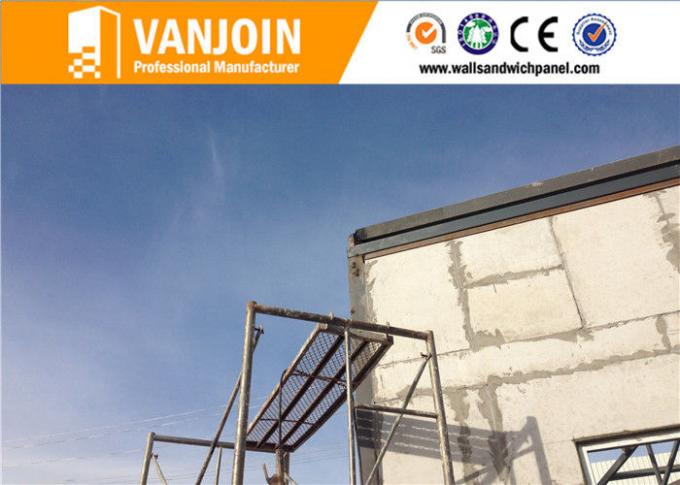

5. External ( Exterior ) Wall

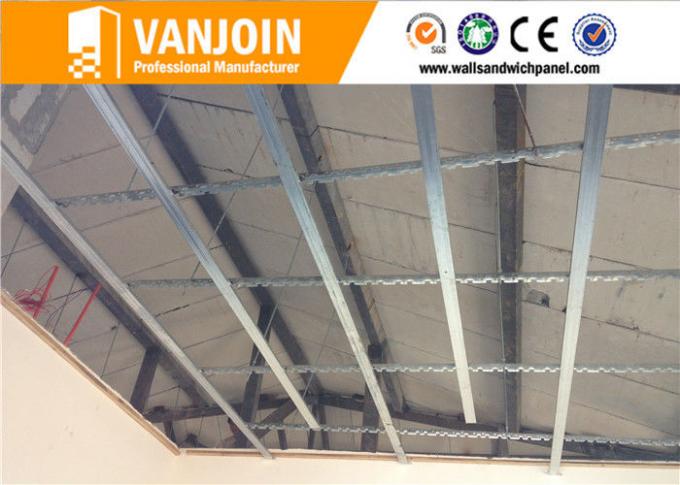

6. Roof :
7. Floor :
Factory Information
Production area is 40,000m2
Stacking area is 60,000m2
Production capacity is 2,000,000m2 per year
Export quantity is over 400 containers per month
RFQ:
Q1 : How many years your company to produce this kind of wall panel ?
A: 10 years of manufacturing eps cement sandwich wall panels , now we are the TOP1 in middle of China , and among TOP 3 in China in this field .
Q2 : Main market of Vanjoin ?
A: Main market : Asia , South Amercia , Africa South East Asia is our largest market ,Mid East is our second largest market
Q3 : Exporting details :
A: Loading & shipping 400 20ft every month
Q4 : More information of Vanjoin factory ?
A: Land area : 30,000m2
Machines : Fully automatic production line
Productivity : 2,000,000m2 wall panel every year
Q5 : How could I get the samples ?
A: We send you the free wall panel samples , brochures & installation cd etc, you pay for the freight charges .
If you get the TNT , DHL , UPS , Fedex account , that is the best .
If not , you can transfer money to our West Union account ,we send samples by DHL
Q6 : Certificate of Vanjoin
A: We get CE , ISO , BV , certificate for our product
We get other wall panel performance testing report , such as fireproof , sound insulation ,waterproof , heat insulation certificates etc .
Q7 : How to installation the wall panels ?
A: You can watch the installation video on Vanjoin website or send an enquiry
Q8 : How about delivery time ?
A: Normally within 15 days . If you need to ship urgently , can be ship within 7 days .
For large order , with different quantity , will discuss further by e-mail .
You can watch the installation video on Vanjoin website or send an enq.
