High Rise Building Warehouse Exterior Wall 180Mm EPS Sandwich Panel

China High Rise Building Warehouse Exterior Wall 180Mm EPS Sandwich Panel supplier
High Rise Building Warehouse Exterior Wall 180Mm EPS Sandwich Panel supplier High Rise Building Warehouse Exterior Wall 180Mm EPS Sandwich Panel supplier High Rise Building Warehouse Exterior Wall 180Mm EPS Sandwich Panel supplier High Rise Building Warehouse Exterior Wall 180Mm EPS Sandwich Panel supplier High Rise Building Warehouse Exterior Wall 180Mm EPS Sandwich Panel supplier

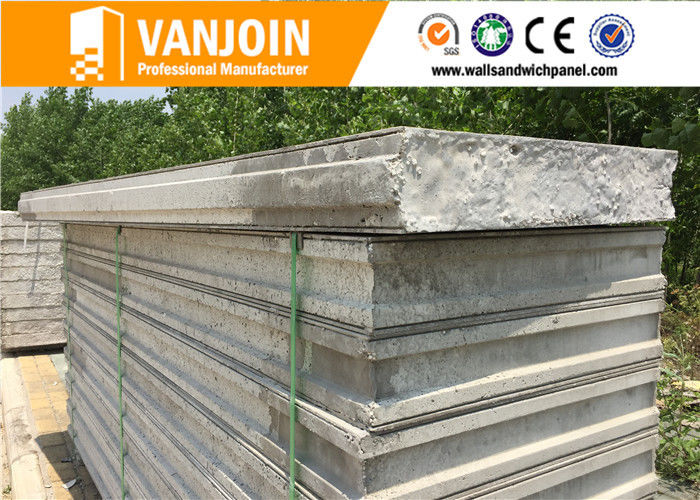

Large Image :  High Rise Building Warehouse Exterior Wall 180Mm EPS Sandwich Panel

Product Details:

Place of Origin: China
Brand Name: Vanjoin
Certification: CE, BV, ISO
Model Number: 150mm EPS Panel

Payment & Shipping Terms:

Minimum Order Quantity: 1X20GP Container free sample available
Price: negotiation
Packaging Details: 1. Free packing ( with normal pallet and normal packing belt ) 2. Standard exporting packing ( wraped with plastic film , edge protect and good pallet )
Delivery Time: 7~10 working days after receive payments
Payment Terms: L/C,T/T,Western Union, D/A,D/P, MoneyGra
Supply Ability: 200000 Square Meter/Square Meters per Mont
Contact Now
Detailed Product Description
Product Name: Sandwich Wall Panels Core Material: EPS, Cement, Sand, Water, Additive, Etc
Specification(L*W*T): 2270*610*60/75/90/100/120/150mm Surface Panel: Alicium Silicon Board
Advantages: Waterproof, Fireproof, Sound Insulation, Heat Insulation Panel Fireproof: Under 1000 Degree For 4 Hours Without Damage To The Wall
Service Life: 60-70 Years Anti-earthquake: Class 8
Thermal Conductivity: 0.221W/mK Application: Interior/ Exterior Wall, Floor, Roof Ceiling Panel

High Rise Building Warehouse Exterior Wall 180Mm EPS Sandwich Panel eps-sandwich-wall-panel

Name

Size(L*W*T)

Weight(KG)

Packing(pcs/銕 per 20")

VJ light weight compound
sandwich panel

2270*610*60

45-48

315 pcs / 436 銕

2270*610*75

50-53

252 pcs / 349 銕

2270*610*90

55-58

207 pcs / 287 銕

2270*610*100

60-65

189 pcs / 262 銕

2270*610*120

65-75

153 pcs / 212 銕

2270*610*150

90-90

126 pcs / 175 銕


 Remark: All kinds of panels can be customized by customers' specific requirement,
 such as density and length of panel.
 eps-sandwich-wall-panel
3. Features and Advantages of Interior/ Exterior Sandwich Panel:


Interior/Exterior
Sandwich Panel

Fast construction

75-80m2/day three workman

Sound insulation

46dB

Space saving

Save 4.26m2 per 100 m2 area

Anti-seismic

Class 7-8

Fireproof

4 hours, under 1000 degree centigrade

Eco-friendly

100% non-asbestos

Hanging force

Single point hanging force 50kg, Embed hanging force 150kg

Service Life

60-70years


eps-sandwich-wall-panel

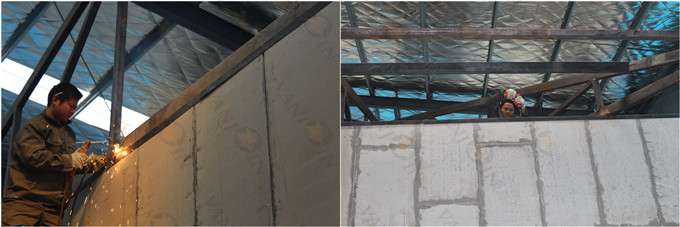

4. Installation of Interior/ Exterior Sandwich Panel:


1. Setting the line and carrying
the board in position

Eject double lines of board thickness up and down the axes
of installed wall board, and easily carry to the side of wall
according to the specification needed;

2. Sawing board

Using hand-hold electric saw to cut freely according to the
 wall specification.

3. Sizing

Sizing cement on tenon side of two boards, then  spread
polymer mortar on the tenon side casually;

4. Installation

Carrying the board prepared to be installed to the
installation place, correcting the wall board by
gavelock and making it close tightly, and let the
polymer mortar squeeze out into full and fixing
it with a chock temporarily;

5. Correcting, fixing

Using the guiding rule of two meters to check the
verticality and leveling correction. Then using 6mm
or 8mm reinforcing steel bar and ribs adding with
construction sealant to fix;

6. Grouting and filling starch

Filling the strickling the corrected wall board with
polymer mortar, filling the big gap with pea gravel
concrete;

7. Sticking fiberglass mesh (we can supply )

After the polymer (for filling the gaps) and Wall are
shaped, sticking fiberglass mesh on the whole wall
with anti-crack mortar.

8. Installing electrical wires and switches

Setting lines on the places needing to be set with
concealed wire and switch box, then cut a groove
by hand-hold electric saw, filling with polymer mortar
after installation

9. Installing doorcase

Preparing door and window holes on the installed wall,
anchoraging by splint or lines.

10. Facing coating and wall papers

Scraping putty directly without plastering on the installed
wall, then brushing coating and sticking wall paper

11. Facing ceramic tile,decorative sheet

Sticking ceramic tiles or other wood facing panels
casually without plastering on installed wall.

12. Electric apparatus installation

Install lights, furniture, air-conditioners casually on
installed room ,can be nailed or hanged


High Rise Building Warehouse Exterior Wall 180Mm EPS Sandwich Panel

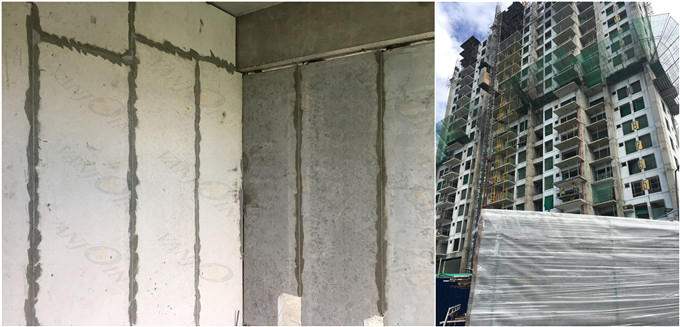

5. Application of Interior/ Exterior Sandwich Panel:

High Rise Building Warehouse Exterior Wall 180Mm EPS Sandwich Panel

6. Vanjoin Workshop.

High Rise Building Warehouse Exterior Wall 180Mm EPS Sandwich Panel

Factory Information
Production area is 40,000m2
Stacking area is 60,000m2
Production capacity is 2,000,000m2 per year
Export quantity is over 400 containers per month

FAQ
Q 1 ). How many years your company has been in this field?
A: More than 10 years of manufacturing EPS concrete sandwich wall panel,
now we are TOP 1 In middle of China, and among top 2 in china in this field .
Q2 ).Where is your main market of VANJOIN?
A: Main market Asia, South America, Africa,South East Asia is our largest market,Mid East is our second largest market.
Q3 ). Exporting details :
A: Loading & shipping 400 x 20 GP each month.
Q4 ). More information of VANJOIN factory?
A: land area 30,000 m2 machines, full-automatic production line Productivity: 2,000,000 m2 wall panel per year.
Q5 ). How could i get the samples?
A: We send you the free samples, catalogues, CD, but the Express charge is required,if you have the DHL, TNT, UPS, FedEx account, this is the best.
If not, you can transfer money to our Western Union, then we will send you.
