90MM Lightweight EPS Cement Sandwich Wall Panels for Interior Exterior Wall

Certification
Good quality EPS Cement Sandwich Panel for sales
Good quality EPS Cement Sandwich Panel for sales
Customer Reviews
I thought no body cares about others any more,but you changed this.

—— Mana AI Yaseen,Saudi Arabia

I appreciate very much your very kind attention to may request and it give to me a very strong confidence in your company in your services

—— Alfredo Friedmann,Paraguay

You are so kind and good service.

—— Samuel,Indonesia

You are star.I want to be your friend

—— Gert,South Africa

I'm Online Chat Now

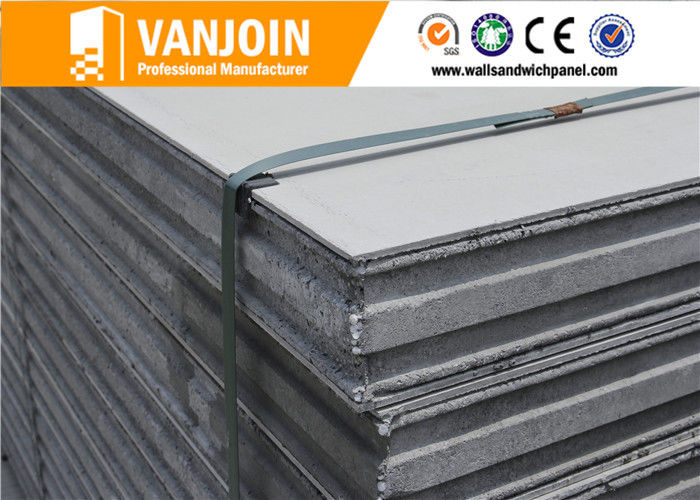

90MM Lightweight EPS Cement Sandwich Wall Panels for Interior Exterior Wall

China 90MM Lightweight EPS Cement Sandwich Wall Panels for Interior Exterior Wall supplier
90MM Lightweight EPS Cement Sandwich Wall Panels for Interior Exterior Wall supplier 90MM Lightweight EPS Cement Sandwich Wall Panels for Interior Exterior Wall supplier 90MM Lightweight EPS Cement Sandwich Wall Panels for Interior Exterior Wall supplier 90MM Lightweight EPS Cement Sandwich Wall Panels for Interior Exterior Wall supplier

Large Image :  90MM Lightweight EPS Cement Sandwich Wall Panels for Interior Exterior Wall

Product Details:

Place of Origin: China
Brand Name: Vanjoin
Certification: CE, BV, ISO
Model Number: VJ-WPE-01

Payment & Shipping Terms:

Minimum Order Quantity: 1X20GP Container free sample available
Price: negotiation
Packaging Details: 1. Free packing ( with normal pallet and normal packing belt ) 2. Standard exporting packing ( wraped with plastic film , edge protect and good pallet )
Delivery Time: 7~10 working days after receive payments
Payment Terms: L/C,T/T,Western Union, D/A,D/P, MoneyGra
Supply Ability: 200000 Square Meter/Square Meters per Mont
Detailed Product Description
Product Name: Sandwich Wall Panels Core Material: EPS, Cement, Sand, Water, Additive, Etc
Specification(L*W*T): 2270*610*60/75/90/100/120/150mm Surface Panel: Alicium Silicon Board
Advantages: Waterproof, Fireproof, Sound Insulation, Heat Insulation Panel Fireproof: Under 1000 Degree For 4 Hours Without Damage To The Wall
Service Life: 60-70 Years Anti-earthquake: Class 8
Thermal Conductivity: 0.221W/mK Application: Interior/ Exterior Wall, Floor, Roof Ceiling Panel


90MM Lightweight EPS Cement Sandwich Wall Panels for Interior Exterior Wall

90MM Lightweight EPS Cement Sandwich Wall Panels for Interior Exterior Wall

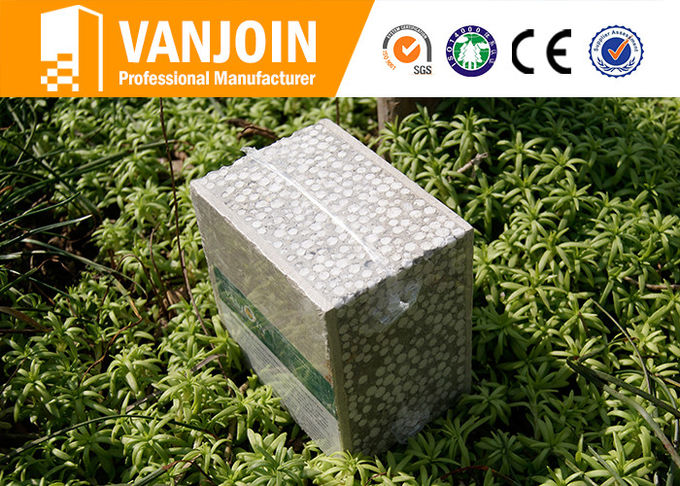

1. Composition of Interior/ Exterior Sandwich Panel:

 • Core materials: cement, EPS, sand and additives.
 • Surface materials: fiber reinforced calcium silicate board or cement calcium silicate
  Board.

2. Specification of Interior/ Exterior Sandwich Panel:

• Thickness: 60, 75, 90, 100, 120, 150mm
• Width: 610mm
• Length: 2270mm (custom-made length can be made for volumn order)


Name

Size(L*W*T)

Weight(KG)

Packing(pcs/㎡ per 20")

VJ light weight compound
sandwich panel

2270*610*60

45-48

315 pcs / 436 ㎡

2270*610*75

50-53

252 pcs / 349 ㎡

2270*610*90

55-58

207 pcs / 287 ㎡

2270*610*100

60-65

189 pcs / 262 ㎡

2270*610*120

65-75

153 pcs / 212 ㎡

2270*610*150

90-90

126 pcs / 175 ㎡


 Remark: All kinds of panels can be customized by customers' specific requirement,
 such as density and length of panel.

3. Features and Advantages of Interior/ Exterior Sandwich Panel:


Interior/Exterior
Sandwich Panel

Fast construction

75-80m2/day three workman

Sound insulation

46dB

Space saving

Save 4.26m2 per 100 m2 area

Anti-seismic

Class 7-8

Fireproof

4 hours, under 1000 degree centigrade

Eco-friendly

100% non-asbestos

Hanging force

Single point hanging force 50kg, Embed hanging force 150kg

Service Life

60-70years


90MM Lightweight EPS Cement Sandwich Wall Panels for Interior Exterior Wall

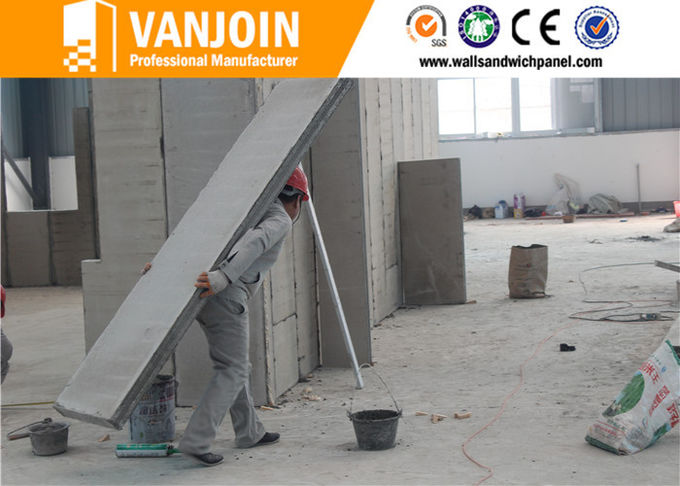

4. Installation of Interior/ Exterior Sandwich Panel:


1. Setting the line and carrying
the board in position

Eject double lines of board thickness up and down the axes
of installed wall board, and easily carry to the side of wall
according to the specification needed;

2. Sawing board

Using hand-hold electric saw to cut freely according to the
 wall specification.

3. Sizing

Sizing cement on tenon side of two boards, then  spread
polymer mortar on the tenon side casually;

4. Installation

Carrying the board prepared to be installed to the
installation place, correcting the wall board by
gavelock and making it close tightly, and let the
polymer mortar squeeze out into full and fixing
it with a chock temporarily;

5. Correcting, fixing

Using the guiding rule of two meters to check the
verticality and leveling correction. Then using 6mm
or 8mm reinforcing steel bar and ribs adding with
construction sealant to fix;

6. Grouting and filling starch

Filling the strickling the corrected wall board with
polymer mortar, filling the big gap with pea gravel
concrete;

7. Sticking fiberglass mesh (we can supply )

After the polymer (for filling the gaps) and Wall are
shaped, sticking fiberglass mesh on the whole wall
with anti-crack mortar.

8. Installing electrical wires and switches

Setting lines on the places needing to be set with
concealed wire and switch box, then cut a groove
by hand-hold electric saw, filling with polymer mortar
after installation

9. Installing doorcase

Preparing door and window holes on the installed wall,
anchoraging by splint or lines.

10. Facing coating and wall papers

Scraping putty directly without plastering on the installed
wall, then brushing coating and sticking wall paper

11. Facing ceramic tile,decorative sheet

Sticking ceramic tiles or other wood facing panels
casually without plastering on installed wall.

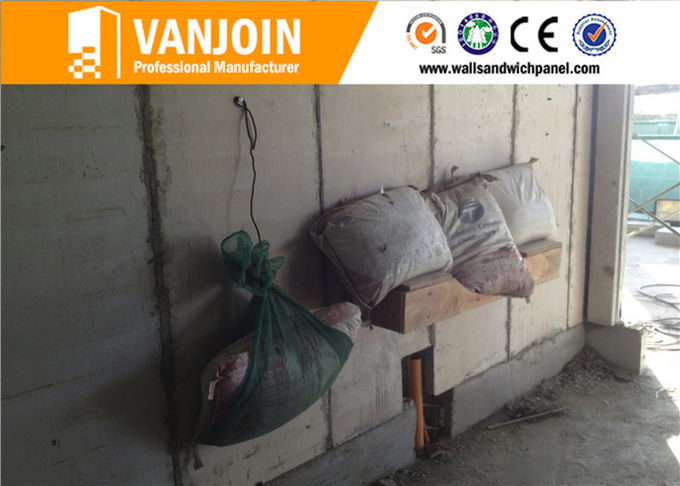

12. Electric apparatus installation

Install lights, furniture, air-conditioners casually on
installed room ,can be nailed or hanged


90MM Lightweight EPS Cement Sandwich Wall Panels for Interior Exterior Wall

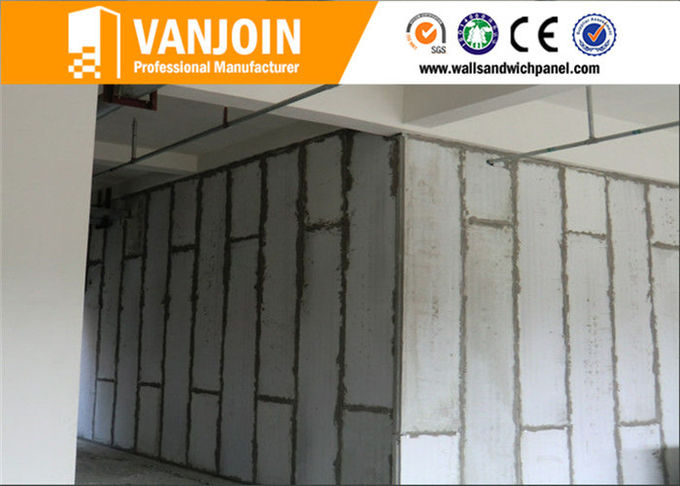

5. Application of Interior/ Exterior Sandwich Panel:

90MM Lightweight EPS Cement Sandwich Wall Panels for Interior Exterior Wall

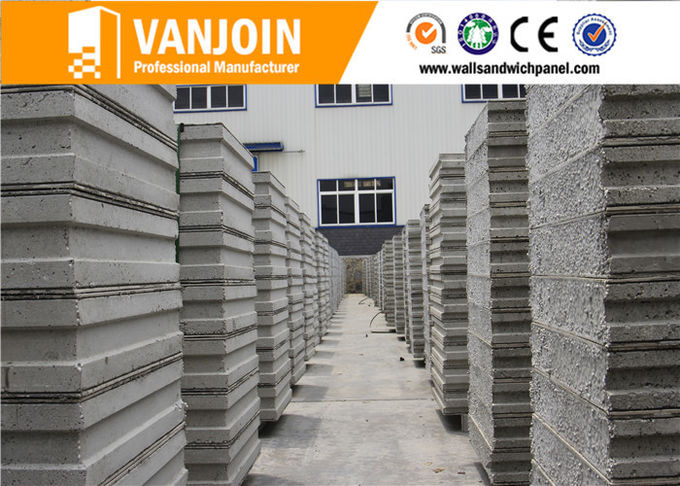

6. Vanjoin Workshop.

90MM Lightweight EPS Cement Sandwich Wall Panels for Interior Exterior Wall

90MM Lightweight EPS Cement Sandwich Wall Panels for Interior Exterior Wall
