Product Details:
Payment & Shipping Terms:
|
| Type: | Sandwich Wall Panels | Panel Material: | Nonmetal |
|---|---|---|---|
| Surface Panel Material: | Calcium Silicate Board | Core Material: | EPS, Cement, Sand, Water, Additive, Etc |
| Thermal Conductivity: | 0.221W/mK | Fireproof: | 240Minutes |
| Sound Insulation: | 46db |
Prefab Storey House Partition Sandwich Wall Panels Sound Insulation 46dB

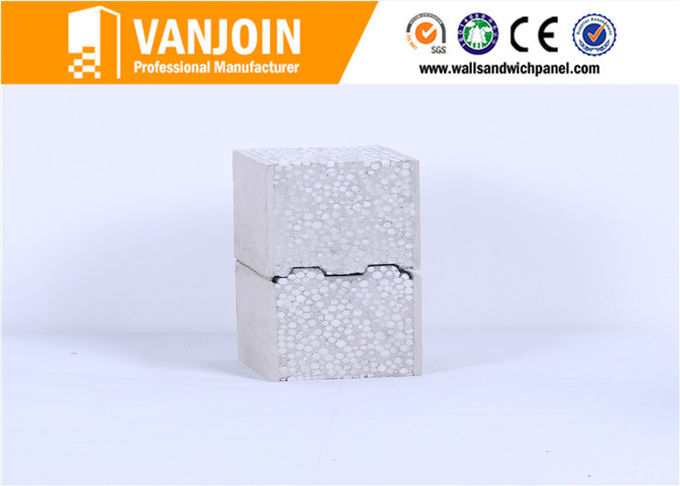

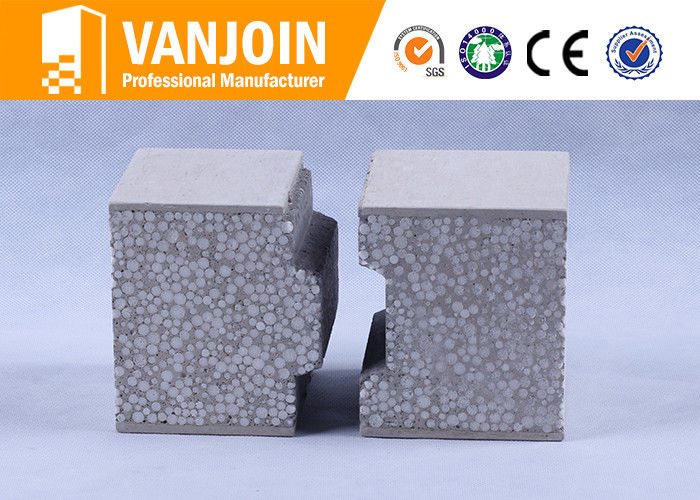

1. Composition:
Core materials: cement, EPS, and fly ash core.
Surface materials: fiber reinforced calcium silicone board or cement calcium silicone sandwich wall panel.
2. Specification: (L*W*T)
1500-3000mm X 610mm X (60, 90,120,150,180mm)
3. Usage:
Interior and exterior partition on steel or concrete structure building,
For new construction, additions or renovations.
4. Advantages:
| | | | ||||
| Thickness | 60mm | 90mm | 120mm | 60mm | 90mm | 120mm |
1 | Anti-impact Capacity/times | ≥5 | ≥5 | ≥5 | ≥8 | ≥10 | ≥15 |
2 | Anti-bending damageload/times over deadweight | ≥1.5 | ≥1.5 | ≥1.5 | ≥3 | ≥4 | ≥5 |
3 | Compressive strength /Mpa | ≥3.5 | ≥3.5 | ≥3.5 | ≥5 | ≥5 | ≥5 |
4 | Softening coefficient | ≥0.80 | ≥0.80 | ≥0.80 | ≥1 | ≥1 | ≥1 |
5 | Surface density g/kg | ≤70 | ≤90 | ≤110 | ≤55 | ≤70 | ≤85 |
6 | Moisture rate a/% | ≤12/10/8 | ≤10/9/7 | ||||
7 | Drying shrinkage value /mm/m | ≤0.6 | ≤0.6 | ≤0.6 | ≤0.45 | ≤.0.5 | ≤0.5 |
8 | Drying shrinkage value /mm/m | ≥1000 | ≥1000 | ≥1000 | ≥1200 | ≥1300 | ≥1500 |
9 | Sound insulation capacity in the air /Db | ≥30 | ≥35 | ≥40 | ≥35 | ≥40 | ≥45 |
10 | Fire proof limit /h | ≥1 | ≥1 | ≥1 | ≥2.5 | ≥3 | ≥4 |
11 | Heat transfer coefficient b/w/. |
|
| ≤1.0 |
|
| ≤1.0 |
12 | Radioactivity Limit | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 |
13 | IRa Inner radiation indexes | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 |
14 | Ir Outer radiation indexes | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 |
6. Application:
Can replace construction materials as red bricks, clay solid bricks, air bricks, color-coated steel sandwich boards, gypsum blocks, wire spatial grid structure perlite boards, and perlite porous board can widely be applied to wall materials of various high and low buildings such as banks, office buildings, hospitals, schools, hotels, malls, amusement halls, active barracks, old houses reconstruction, residences, and workshops.

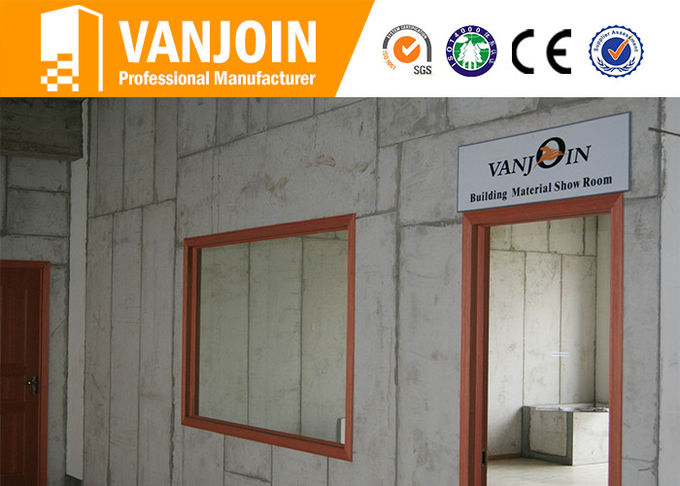

7. Vanjoin Sandwich Wall Panel Show room.
Prefab Storey House Partition Sandwich Wall Panels Sound Insulation 46dB
