Waterproof Sandwich Wall Panels For Villa Construction Exterior Interior Wall Panels

Large Image : Waterproof Sandwich Wall Panels For Villa Construction Exterior Interior Wall Panels

Product Details:

Place of Origin:	China
Brand Name:	Vanjoin
Certification:	CE, BV, ISO
Model Number:	VJ-WP-AY001

Payment & Shipping Terms:

Minimum Order Quantity:	2*20ft container
Price:	negotiation
Packaging Details:	Standard Exporting Packing with EPE foam film,plastic thin film, edge protect, packing belt, good pallet.
Delivery Time:	7 working days after receiving prepayment.
Payment Terms:	L/C, T/T
Supply Ability:	200,000m2/month

Detailed Product Description

Face Board:	Calcium Silicate Board	Cor Materials:	EPS, Cement, Sand, Additives
Standard Length:	2270mm	Standard Width:	610mm
Standard Thickness:	60mm, 75mm, 90mm, 100mm, 120mm, 150mm	Application:	Interior Wall, Exterior Wall, Flooring, Roofing
Fireproof:	4 Hours	Sound Insulation:	46dB
Lifespan:	70 Years

Waterproof Sandwich Wall Panels For Villa Construction Exterior Interior Wall Panels

Waterproof Sandwich Wall Panels For Villa Construction Exterior Interior Wall Panels
1. Brief Information

Type	Sandwich wall panel
Material	Face boards are calcium silicate board, inner materials are eps foam, cement, sand, additives, etc.
Size	Standard length 2270mm, width 610mm, thickness 60mm,75mm,90mm,100mm,120mm,150mm.
Application	External and internal wall for various houses and buildings
Joining Method	Tongue & groove type
Supply ability	200,000m2 per month.
Delivery time	Usually 7 days after receiving prepayment.
Payment terms	T/T, L/C.
Packing	Exporting standard pallets
Samples	Free samples are available.
Certificates	CE,ISO,,BV, with test reports and patents

2. Types

EPS cement sandwich wall panel (with face board and without face board)
Ceramiste sandwich wall panel (with face board and without face board)
Perlite sandwich wall panel (with face board and without face board)

3. Specification and Weight and Loading Information

Name	Size(LWT)MM	Weight(KG)	Loading(PCS/M2 per 20ft)
Fast Installation Composite Panel Board Durable Sandwich Wall Panel	227061060	45-48	315 pcs / 436
	227061075	50-53	252 pcs / 349
	227061090	55-58	207 pcs / 287
	2270610100	60-65	189 pcs / 262
	2270610120	65-75	153 pcs / 212
	2270610150	90-90	126 pcs / 175

4. Advantages

Fireproof ( at least 2 hours)

Waterproof and weatherproof

Thermal conductivity coefficient 0.0856 W/(mK))

Sound insulation(46dB)

Fast construction(3 workers can install 60m2 a day)

Anti-earthquake( 8-9 degree)

Environment friendly(non-asbestos),etc.

5. Installation Process

1). Setting the line and carring the board in position
2). Sawing board
3). Sizing, sizing cement mortar on the side of panels
4). Installation, carry panel, correct panel and fix panel
5). Correcting and fixing
6). Grouting and filling starch
7). Sticking fiberglass mesh
8). installing electricity wire and switches
9). Installing doorcase
10). Facing coating and wall papers
11). Facing flexible soft ceramic tile
12). Electric apparatus installation

Waterproof Sandwich Wall Panels For Villa Construction Exterior Interior Wall Panels

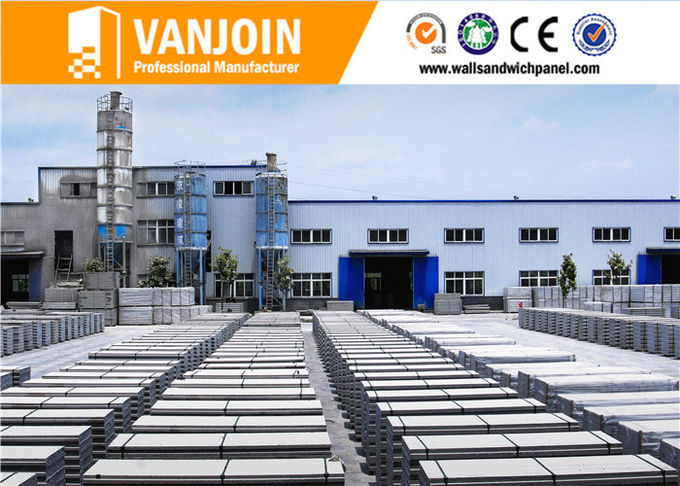

6. Factory Information

Production area is 40,000m2
Stacking area is 60,000m2
Production capacity is 2,000,000m2 per year
Export quantity is over 400 containers per month

7. Company Information

We are a manufacturing and trading combo for lightweight sandwich wall panels in Wuhan China,with 10 years full experience and a professional sales team.

We have exported to over 50 countries, with high quality and moderate price.

Waterproof Sandwich Wall Panels For Villa Construction Exterior Interior Wall Panels
