Product Details:
Payment & Shipping Terms:
|
| Features: | Fast Construction, Fireproof, Heat Insulaton, Waterproof | Product Name: | Precast Concrete Wall Panels |
|---|---|---|---|

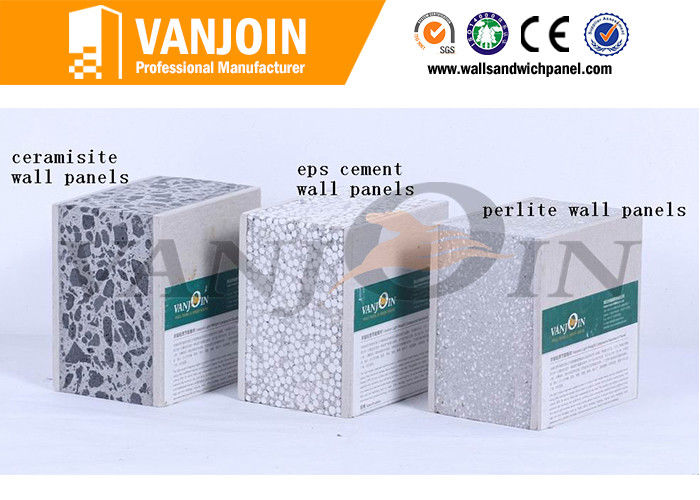

| Core Material: | EPS, Cement, Sand, Water, Additives, Etc | Surface Board: | Calcium Silicate Board |
| Application: | Inside Wall, Outside Wall | Specification: | 2270*610*60/75/90/100/120/150mm |
| Service Life: | More Than 60 Years | Anti-seismic: | Class 8 |
Low Cost Eco-friendly Precast Concrete Wall Panels For Prefab Houses
Advantages:
※ Light weight: 1/6 of traditional wall ;
※ Space saving: save 4.26 m2 per 100m2 area;
※ Waterproof, windproof;
※ Fireproof: Under 1000℃ for 240 minutes;
※ Sound insulation, Heat insulation;
※ High strength, Anti-impact;
※ Anti-seismic: Class7-8;
※ Great hanging force: Single point hanging force 50KG, Embed hanging force 150KG;
※ Fast construction: 8-10 times of traditional wall;
※ Easy decoration: convenient for pipeline embedded;
※ Eco-friendly: 100% non-asbestos
※ Recyclable and long life span: 60-70 years service life, etc.
Application:
1. Floor System
Vanjoin Precast Concrete Wall Panel can be innovatively used as floor board. This system has the outstanding advantages such as high load-bearing capacity, anti-static electricity, friction resistance, high strength, convenient for wire groove and water pipe inbuilt, corrosion resistance, no deformation, no split, etc.
2. Roof System
This system not only solves the problem of roof leakage, but also has the advantages such as heat insulation, neat joint surface, high temperature resistance, etc.
3. Interior Partition System
With EXCELLENT fireproof, best hanging force, sound insulation, heat insulation, waterproof, easy installation and the like characteristics.
4. Interior & Exterior Wall System
Vanjoin Precast Concrete Wall Panels can automatically adjust indoor air and water content with the season and climate changes, which can keep the temperature at an invariable temperature level, and such ecology effect just goes with the tide of modern residential building. It is widely applied to various modular house, low buildings, apartment, villas, and city house, etc.
Specifications:
|
Name |
Specification (mm) |
Weight (kg/m2) |
Packing (pcs and m2 per 20' FCL) |
|
Precast Concrete Wall Panels |
2270x610x60 |
45~48 |
315pcs, 436m2 |
|
|
2270x610x75 |
50~53 |
252pcs, 349m2 |
|
|
2270x610x90 |
55~58 |
207pcs, 287m2 |
|
|
2270x610x100 |
60~65 |
189pcs, 262m2 |
|
|
2270x610x120 |
65~75 |
153pcs, 212m2 |
|
|
2270x610x150 |
80~90 |
126pcs, 175m2 |
Technical Datas:
|
Moisture Content |
9% |
|
Moisture Movement |
0.06% |
|
Resistance to Continuous Heating |
80°C |
|
Surface Alkalinity |
pH 7-10 |
|
Non-combustibility(face board) |
BS EN ISO 1182: 2002 BS476: Part 4 GB8624-1997, Grade A |
|
Heat of Combustion(Face Board) |
BS EN ISO 1716: 2002 |
|
Building Regulations Classification(face board) |
Eur0 Class A1 |
|
Fire Rated Partition |
4 hour FRP BS EN 1364-1 BS 476: Part 22 GB/T9978 |
|
Water Tightness to ASTM c1185 |
No droplets observed behind the panel, Test of 24 hours at 250mm water head |
|
Surface damage by hard body impact -heavy duty grade(BS 5234:Part: 2:1992, Annex B) |
Pass |
|
Resistance to crowd pressure-heavy duty grade BS 5234:Part: 2:1992, Annex G |
No collapse or damage |
|
Anchorage |
45kg |
|
Acoustic Performance -60mm thick -75mm thick -100mm thick -120mm thick -150mm thick |
38dB 40dB 42dB 44dB 46dB |
Precast Concrete Wall Panels:
