100MM Fireproof Precast Concrete Exterior Wall Panels / Polyurethane Foam Wall Panels

China 100MM Fireproof Precast Concrete Exterior Wall Panels / Polyurethane Foam Wall Panels supplier
100MM Fireproof Precast Concrete Exterior Wall Panels / Polyurethane Foam Wall Panels supplier 100MM Fireproof Precast Concrete Exterior Wall Panels / Polyurethane Foam Wall Panels supplier 100MM Fireproof Precast Concrete Exterior Wall Panels / Polyurethane Foam Wall Panels supplier 100MM Fireproof Precast Concrete Exterior Wall Panels / Polyurethane Foam Wall Panels supplier

Large Image :  100MM Fireproof Precast Concrete Exterior Wall Panels / Polyurethane Foam Wall Panels

Product Details:

Place of Origin: China
Brand Name: Vanjoin
Certification: CE, BV, ISO
Model Number: VJ-WPE-01

Payment & Shipping Terms:

Minimum Order Quantity: 200 Square Meter/Square Meters free sample available
Price: negotiation
Packaging Details: standard export package
Delivery Time: 7-15 days after receiving prepayment
Payment Terms: L/C,T/T,Western Union, D/A,D/P, Paypal
Supply Ability: 200000 Square Meter/Square Meters per Month
Detailed Product Description
Product Name: Cheap Fireproof Precast Polyurethane Foam Fiber Concrete Exterior Sandwich Wall Panel Prices Features(L*W*T): Fast Construction, Anti-earthquake, Light Weight, Save Space
Specification: 2270*610*60/75/90/100/120/150mm Anchorage Load: 50 Kgs
Heat Insulation: 5 Degree Difference Between Inside And Outside Fireproof: Under 1000 Degree For 4 Hours Without Damage To The Wall
Weight: 45~90 Kg/㎡ Construction Efficiency: 3 Workers One Week For 100m2 House

100MM Fireproof Precast Concrete Exterior Wall Panels / Polyurethane Foam Wall Panels

1 >. Production Description of EPS Cement Wall Panel:
Vanjoin EPS Cement wall Panel is composed of exterior panels and interior core filling, to form a non-load-bearing lightweight composite wall panel. The exterior panels on both sides are 5mm calcium silicate board, and the middle core is filled with polystyrene beads & cement or ceramicite, polystyrene beads & cement.

2 >. Performance Index of EPS Cement Wall Panel:


O.

Item

National Standards

Testing Results

60mm

90mm

120mm

60mm

90mm

120mm

1

Anti-impact performance/times

≥5

≥5

≥5

≥6

≥6

≥10

2

Anti-bending damage load/times
over deadweight

≥1.5

≥1.5

≥1.5

≥3

≥3

≥3

3

Anti-pressure strength /Mpa

≥3.5

≥3.5

≥3.5

≥6

≥6

≥6

4

Surface density kg/m2

≤70

≤90

≤110

≤45

≤54

≤66

5

Single point hanging
Strength /N

≥1000

≥1000

≥1000

≥1000

≥1200

≥1300

6

Fire proof limit /h

≥1

≥1

≥1

≥3

≥3

≥4

7

Sound insulation capacity
in the air /Db

≥30

≥35

≥40

≥35

≥40

≥45

8

Soften coefficient

≥0.80

≥0.80

≥0.80

≥1

≥1

≥1

9

Moisture rate  a/%

≤12

≤10

≤10

≤10

≤9

≤7

10

Heat transfer coefficient
w/m2.k

≤2.0

≤2.0

≤2.0

≤1.0

≤0.6

≤0.5

11

Drying shrinkage  /mm/m

≤0.6

≤0.6

≤0.6

≤0.45

≤.0.5

≤0.5

12

Inner radiation index

≤1

≤1

≤1

≤1

≤1

≤1

13

Outer radiation index

≤1

≤1

≤1

≤1

≤1

≤1

14

Radioactivity Limit

≤1

≤1

≤1

≤1

≤1

≤1




3 >. Specification of Eps Cement Wall Panel:
• Thickness: 60, 75, 90, 100, 120, 150mm
• Width: 610mm
• Length: 2270mm (custom-made length can be made for volume order)
100MM Fireproof Precast Concrete Exterior Wall Panels / Polyurethane Foam Wall Panels
Remark: All kinds of panels can be customized by customers' specific requirement, such as density and

length of panel.

4  >. Installation of EPS Cement Wall Panel:

1. Setting the line and carrying
the board in position

Eject double lines of board thickness up and down the axes
of installed wall board, and easily carry to the side of wall
according to the specification needed;

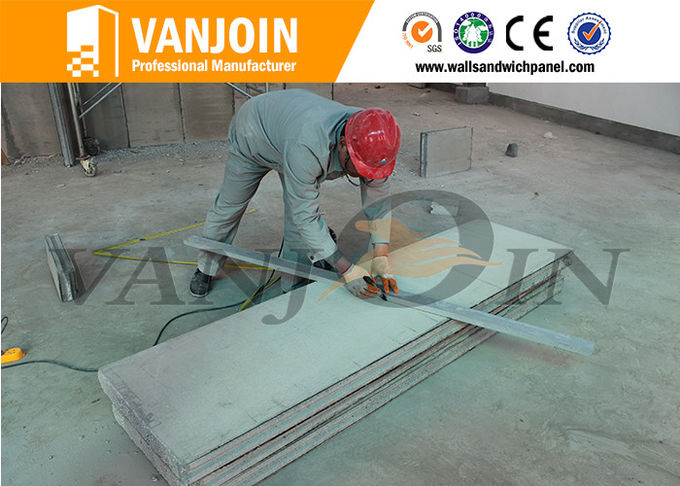

2. Sawing board

Using hand-hold electric saw to cut freely according to the
 wall specification.

3. Sizing

Sizing cement on tenon side of two boards, then  spread
polymer mortar on the tenon side casually;

4. Installation

Carrying the board prepared to be installed to the
installation place, correcting the wall board by
gavelock and making it close tightly, and let the
polymer mortar squeeze out into full and fixing
it with a chock temporarily;

5. Correcting, fixing

Using the guiding rule of two meters to check the
verticality and leveling correction. Then using 6mm
or 8mm reinforcing steel bar and ribs adding with
construction sealant to fix;

6. Grouting and filling starch

Filling the strickling the corrected wall board with
polymer mortar, filling the big gap with pea gravel
concrete;

7. Sticking fiberglass mesh (we can supply )

After the polymer (for filling the gaps) and Wall are
shaped, sticking fiberglass mesh on the whole wall
with anti-crack mortar.

8. Installing electrical wires and switches

Setting lines on the places needing to be set with
concealed wire and switch box, then cut a groove
by hand-hold electric saw, filling with polymer mortar
after installation

9. Installing doorcase

Preparing door and window holes on the installed wall,
anchoraging by splint or lines.

10. Facing coating and wall papers

Scraping putty directly without plastering on the installed
wall, then brushing coating and sticking wall paper

11. Facing ceramic tile,decorative sheet

Sticking ceramic tiles or other wood facing panels
casually without plastering on installed wall.

12. Electric apparatus installation

Install lights, furniture, air-conditioners casually on
installed room ,can be nailed or hanged



 5 >. Features and Advantages of EPS Cement Wall Panel:
※ Fast construction (25m2/day/person)
※ Windproof (65m/s)
※ Sound insulation(46dB)
※ Anti-impact, Anti-seismic (class: 8)
※ Waterproof, Fireproof (4 hours, under 1000 degree centigrade)
※ Light weight, Energy-saving
※ Eco-friendly green material
※ Save area, Easy installation
※ Heat insulation & preservation
※ Strong and durable, 60-70 years life span.



100MM Fireproof Precast Concrete Exterior Wall Panels / Polyurethane Foam Wall Panels

100MM Fireproof Precast Concrete Exterior Wall Panels / Polyurethane Foam Wall Panels100MM Fireproof Precast Concrete Exterior Wall Panels / Polyurethane Foam Wall Panels
