Fast Construction Precast Concrete Wall Panels Rapid Installation Panelings

China Fast Construction Precast Concrete Wall Panels Rapid Installation Panelings supplier
Fast Construction Precast Concrete Wall Panels Rapid Installation Panelings supplier Fast Construction Precast Concrete Wall Panels Rapid Installation Panelings supplier Fast Construction Precast Concrete Wall Panels Rapid Installation Panelings supplier Fast Construction Precast Concrete Wall Panels Rapid Installation Panelings supplier

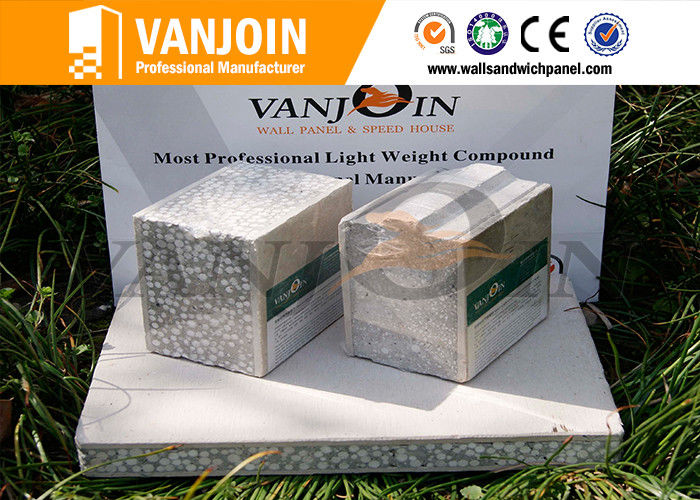

Large Image :  Fast Construction Precast Concrete Wall Panels Rapid Installation Panelings

Product Details:

Place of Origin: China
Brand Name: Vanjoin
Certification: CE, BV, ISO
Model Number: WP-3-101R

Payment & Shipping Terms:

Minimum Order Quantity: Two 20GP
Price: negotiation
Packaging Details: Standard exporting packing (wrapped with plastic thin film, edge protect and good pallet)
Delivery Time: 15 working days after received the payment
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 200,000 sqm per month
Detailed Product Description
Product Name: Fast Construction Precast Concrete Wall Panels Rapid Installation Panelings Joint Type: Tongue And Groove, Interlock
Light Weight: 650 Kg/m3, 1/6 Of Other Wall Eco-friendly: Asbestos Free
Hanging Force: Embeded Hanging Force 150kg Sound Insulation: Excellent, 46dB
Construction Speed: 25 Sqm Per Labor Per Day Usage: Interior Wall, Exterior Wall, Roof And Floor, Prefab House, High-rise Building, Villa

Fast Construction Precast Concrete Wall Panels Rapid Installation Panelings



1. Introduction

Vanjoin precast concrete wall paneling is prefabricated composited panels, it has double sides surface boards, sandwich core material are Eps beads, (expandable polystyrene foam); Cement; Sand; Vanjoin patented additive.



It's a new type of construction material replace of traditional red brick or other wall material. It's light weight, easy delivery and install, thus, it has a rapid construction speed, 8-10 times of other wall.



2. Specification

Length * Width * Thichness (mm)

2270*610*60

2270*610*75

2270*610*90

2270*610*100

2270*610*120

2270*610*150

Other size can be customized as per your requirements.



3.Features

Name

Features

Light weight

Capacity 650kg/m3, 1/6 of traditional wall with same volume

Space saving

Save 4.26m2 per 100 m2

Waterproof

Excellent

Fireproof

A Grade,4 hours 1000 degree fire

Sound Insulation

46dB, soundproof, sound absorption

Hanging force

Single point hanging force 50kg
while embed hanging force can exceed 150kg

Windproof

75m/s; 270km/h

Anti-seismic

Class 8, anti earthquake

Anti-impact

High strength, 1.5 times of traditional wall

Fast construction

8~10 times of traditional wall, easy decoration

Eco-friendly

100% no asbestos, asbestos free

Service Life

60-70 years life span


4. Performance

Vanjoin Panels Performance

Thermal conductivity(BS 874: Part 2: 1986)

0.221 W/mK

Flexural Strength(longitudianal)

4.27 MPa

Flexural Strength(transverse)

4118N

Moisture Movement

0.06%

Moisture Content

9%

Resistance to continuous heating

80 °c

Surface Alkalinity

pH 7-10

Non-combustibility(face Boards)

BS EN ISO 1182: 2002
BS476: Part 4
GB8624-1997, Grade A

Heat of combustion(face boards)

BS EN ISO 1716: 2002

Building regulations classification(face boars)

Euro Class A1

Fire rated partition

2 hour FRP
BS EN 1364-1
BS 476: Part 22
GB/T9978

Water tightness to ASTM C1185

No droplets observed behind the panel,
Test of 24 hours at 250 mm water head

Partition stiffness-heavy duty grade
(BS 5234; Part2: 1992, Annex A)

Pass

Resistance to substructure damage by multiple impacts
from a large soft body
-heavy duty grade( BS 5234; Part2: 1992, Annex E)

No collapse of dislocation

Surface damage by hard body impact- heavy duty grade
(BS 5234; Part2: 1992, Annex B)

Pass

Effects of door slamming-heavy duty grade
BS 5234; Part2: 1992, Annex B

Pass

resistance to crowd pressure-heavy duty grade
BS 5234; Part2: 1992, Annex G

No collapse of damage

Resistance to anchorage(high level wall cupboard)
eccentric downward
BS 5234; Part2: 1992, Annex K

No damage or detachment of anchor

Anchorage Load

45 kg

Acoustic performance
- 60 mm thick
- 75 mm thick
- 100 mm thick
- 120 mm thick
- 150 mm thick


38 dB
40 dB
42 dB
44 dB
46 dB

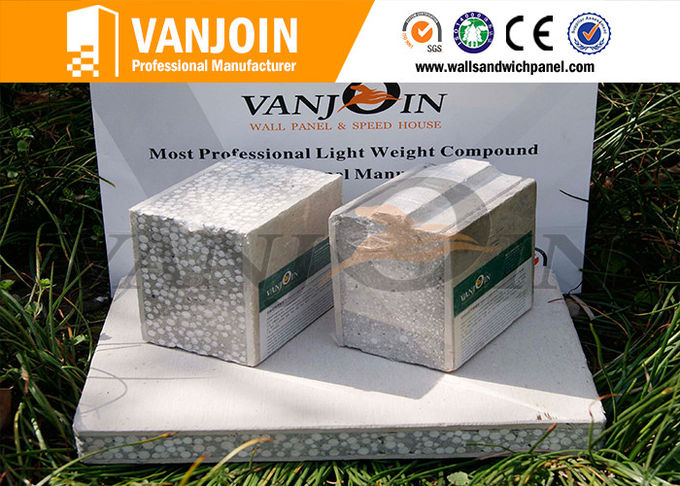

Fast Construction Precast Concrete Wall Panels Rapid Installation PanelingsFast Construction Precast Concrete Wall Panels Rapid Installation Panelings
5. Installation
Setting the line and carrying the board in position;

Sawing board basing on requirement;

Sizing cement on tenon side of two boards;

Carrying the board prepared to be installed to the installation place, correcting the wall board by gavelock and making it close tightly;

Grouting and filling starch;

Sticking fiber glass mesh;

Apply putty powder and level up;

Finished.


6. Packing and Shipping



Specification
(L*W*T)(mm)

Weight
(kg/m2)

Packing
(pcs/m2 per 20’GP)

Application

Vanjoin Precast Concrete Panelings

2270*610*60

45~48

315pcs/436m2

Roof system

2270*610*75

50~53

252pcs/349m2

Floor system

2270*610*90

55~58

207pcs/287m2

Interior/Exterior wall

2270*610*100

60~65

189pcs/262m2

Interior/Exterior wall

2270*610*120

65~75

153pcs/212m2

Exterior wall

2270*610*150

80~90

126pcs/175m2

Exterior wall


7. Application:

Eps precast concrete paneling can be widely used as interior wall, exterior wall, roof and floor, prefab house, high-rise building, villa, etc.

Business Organizations

supermarket, large-scale shopping malls, exclusive agency, chain shops,
large-scale sales, star-rated hotels, restaurants, travel agencies, pharmacy.

Financial Organizations

Banks, negotiable securities, funds, insurance companies, pawnshops;
Non-profit Organizations: Telecommunications, post offices, hospital, schools;

Public Places

subway, airports, stations, gas stations, toll stations, bookstores, parks,
exhibition halls, stadiums,museums, convention centers, ticket agencies,
HR market, lottery centers; Real Estate Property:
Apartments, villas, offices, commercial buildings, model rooms;

Entertainments

Movie theaters, fitness halls, country clubs, clubs, massage rooms, bars,
cafes, Internet bars, beauty shops, golf course
