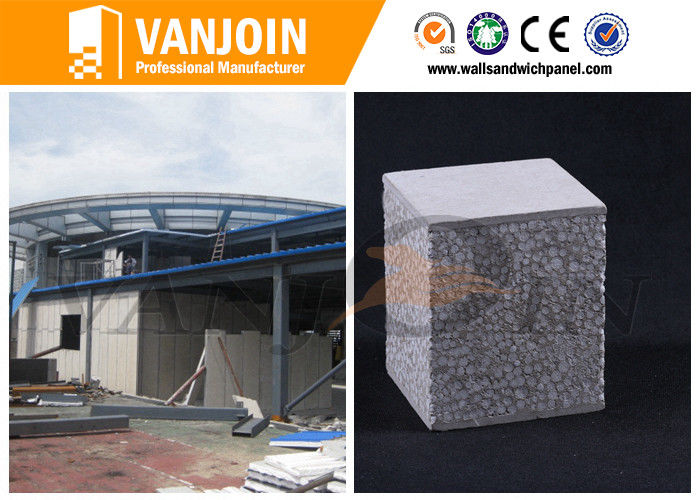

Non-asbestos Environmental Concrete Wall Panels Sound Insulation Waterproof Precast Panels

China Non-asbestos Environmental Concrete Wall Panels Sound Insulation Waterproof Precast Panels supplier
Non-asbestos Environmental Concrete Wall Panels Sound Insulation Waterproof Precast Panels supplier Non-asbestos Environmental Concrete Wall Panels Sound Insulation Waterproof Precast Panels supplier Non-asbestos Environmental Concrete Wall Panels Sound Insulation Waterproof Precast Panels supplier Non-asbestos Environmental Concrete Wall Panels Sound Insulation Waterproof Precast Panels supplier Non-asbestos Environmental Concrete Wall Panels Sound Insulation Waterproof Precast Panels supplier

Large Image :  Non-asbestos Environmental Concrete Wall Panels Sound Insulation Waterproof Precast Panels

Product Details:

Place of Origin: China
Brand Name: Vanjoin
Certification: CE, BV, ISO
Model Number: VJ-WP-AY008

Payment & Shipping Terms:

Minimum Order Quantity: 300m2
Price: negotiation
Packaging Details: Standard Exporting Pallet Packing
Delivery Time: 7 work days
Payment Terms: T/T, L/C
Supply Ability: 200,000m2 per month
Detailed Product Description

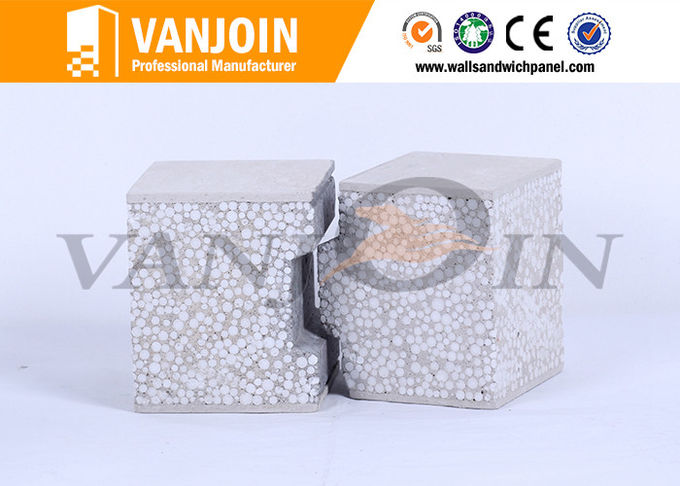

Features: Soundproof, Fireproof, Waterproof Surface Board: 5mm Calcium Silicate Board
Core Materials: Cement, Sand, EPS Foam Minimum Thickness: 60mm
Maximum Thickness: 150mm Fireproof: 4 Hours
Anti-earthquake Degree: 8-9 Degree Heat Insulation: 5 Degree Difference Inside And Outside Of House
Single Point Hanging Force: 50kg

Non-asbestos Environmental Concrete Wall Panels Sound Insulation Waterproof Precast Panels
1. Specification

Size (L*W*T)mmLoading Quantity (m2 / 20ft Container)
2270*610*60436
2270*610*75349
2270*610*90287
2270*610*100262
2270*610*120212
2270*610*150175


2. Installation Process

1). Setting the line and carring the board in position
2). Sawing board
3). Sizing, sizing cement mortar on the side of panels
4). Installation,  carry panel, correct panel and fix panel
5). Correcting and fixing
6). Grouting and filling starch
7). Sticking fiberglass mesh
8). installing electricity wire and switches
9). Installing doorcase
10). Facing coating and wall papers
11). Facing flexible soft ceramic tile
12). Electric apparatus installation

3. Installation Accessories

Cement mortar, connecting wall panels
Steel bar, fix wall panels
Fiberglass mesh, base layer for wall anti-cracking
Anti-crack mortar, basic adhesive for wall anti-cracking

4.Performance



Flexural Strength(longitudianal)

4.27 MPa

Flexural Strength(transverse)

4118N

Moisture Movement

0.06%

Moisture Content

9%

Resistance to continuous heating

80 °c

Surface Alkalinity

pH 7-10

Non-combustibility(face Boards)

BS EN ISO 1182: 2002
BS476: Part 4
GB8624-1997, Grade A

Heat of combustion(face boards)

BS EN ISO 1716: 2002

Building regulations classification(face boars)

Euro Class A1

Fire rated partition

2 hour FRP
BS EN 1364-1
BS 476: Part 22
GB/T9978

Water tightness to ASTM C1185

No droplets observed behind the panel,
Test of 24 hours at 250 mm water head

Partition stiffness-heavy duty grade
(BS 5234; Part2: 1992, Annex A)

Pass

Resistance to substructure damage by multiple impacts
from a large soft body
-heavy duty grade( BS 5234; Part2: 1992, Annex E)

No collapse of dislocation

Surface damage by hard body impact- heavy duty grade
(BS 5234; Part2: 1992, Annex B)

Pass

Effects of door slamming-heavy duty grade
BS 5234; Part2: 1992, Annex B

Pass

resistance to crowd pressure-heavy duty grade
BS 5234; Part2: 1992, Annex G

No collapse of damage

Resistance to anchorage(high level wall cupboard)
eccentric downward
BS 5234; Part2: 1992, Annex K

No damage or detachment of anchor

Anchorage Load

45 kg

Acoustic performance
- 60 mm thick
- 75 mm thick
- 100 mm thick
- 120 mm thick
- 150 mm thick


38 dB
40 dB
42 dB
44 dB
46 dB


5. Application

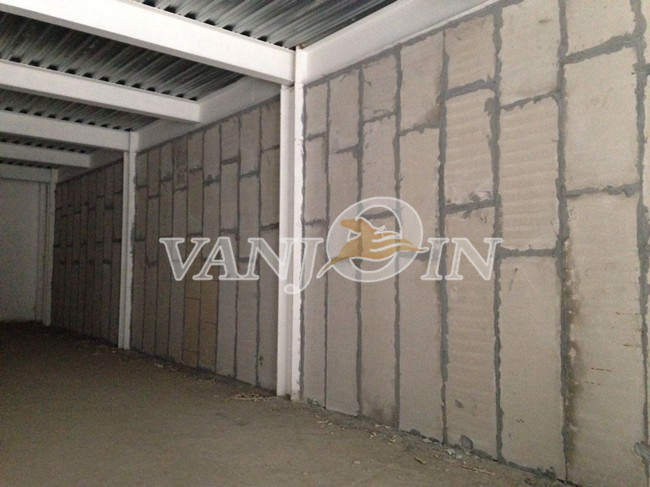

Interior wall system, with advantages of sound insulation, best hanging force, waterproof.

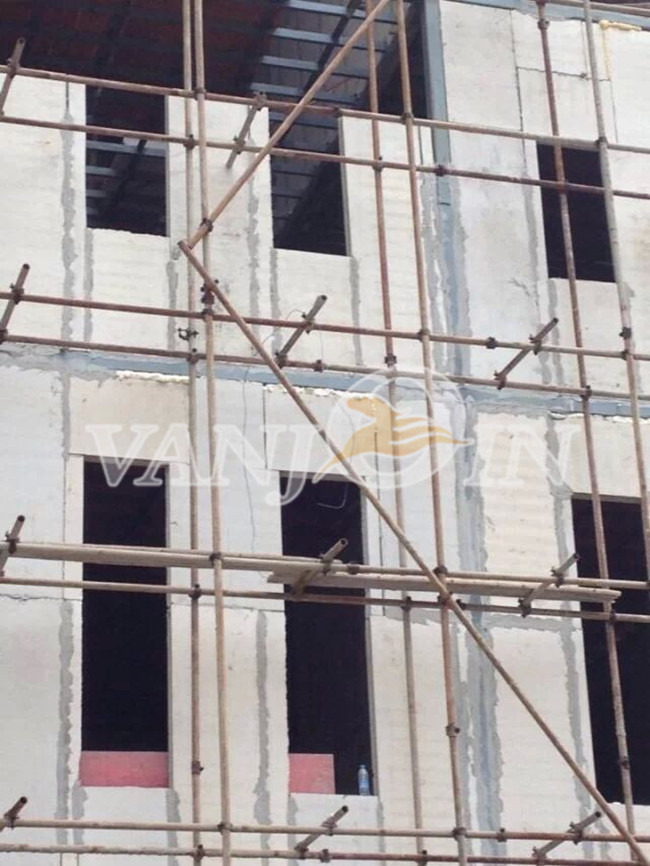

Exterior wall system, with advantages of weatherproof, heat insulation, fast construction.
Roof system, with advantages of lightweight, waterproof, heat insulation, high safety
Floor systme, with advantages of high strength, sound insulation, durable


6. About Us

10 years production and trading experience.
40,000m2 factory area, 60000m2 stacking area.
Top 1 manufacturer in Middle of China
2,000,000m2 annual production capacity
Over 400 containers export volum per month
More than 50 countries market area
