Heat insulation Lightweight Precast Concrete Panels Nonmetal Eps Sandwich Panel

Certification
Good quality EPS Cement Sandwich Panel for sales
Good quality EPS Cement Sandwich Panel for sales
Customer Reviews
I thought no body cares about others any more,but you changed this.

—— Mana AI Yaseen,Saudi Arabia

I appreciate very much your very kind attention to may request and it give to me a very strong confidence in your company in your services

—— Alfredo Friedmann,Paraguay

You are so kind and good service.

—— Samuel,Indonesia

You are star.I want to be your friend

—— Gert,South Africa

I'm Online Chat Now

Heat insulation Lightweight Precast Concrete Panels Nonmetal Eps Sandwich Panel

China Heat insulation Lightweight Precast Concrete Panels Nonmetal Eps Sandwich Panel supplier
Heat insulation Lightweight Precast Concrete Panels Nonmetal Eps Sandwich Panel supplier Heat insulation Lightweight Precast Concrete Panels Nonmetal Eps Sandwich Panel supplier Heat insulation Lightweight Precast Concrete Panels Nonmetal Eps Sandwich Panel supplier Heat insulation Lightweight Precast Concrete Panels Nonmetal Eps Sandwich Panel supplier

Large Image :  Heat insulation Lightweight Precast Concrete Panels Nonmetal Eps Sandwich Panel

Product Details:

Place of Origin: China
Brand Name: Vanjoin
Certification: CE, BV, ISO
Model Number: VJ-WL-WP-101

Payment & Shipping Terms:

Minimum Order Quantity: 1X20GP Container free sample available
Price: negotiation
Packaging Details: 1. Free packing ( with normal pallet and normal packing belt ) 2. Standard exporting packing ( wraped with plastic film , edge protect and good pallet )
Delivery Time: 7~10 working days after receive payments
Payment Terms: L/C,T/T,Western Union, D/A,D/P, MoneyGra
Supply Ability: 200000 Square Meter/Square Meters per Mont
Detailed Product Description
Panel Material: Nonmetal Fireproof: 240 Minutes – Class A
Hanging Force: More Than 50KG Usage: Exterior Wall, Interior Wall, Roof, Floor
Face Board: Calcium Silicon Board 5mm Sound Insulation Performance: 38~46dB
Certification: ISO/BV/CE/ Feathures: Waterproof , Lightweight ,Energy Saving
Anti-earthquake: 8-13 Grade

 Lightweight Precast Concrete Wall Panels Eps Sandwich Panel Wholesale Prices



Different Types of Wall Panels :



1. EPS cement sandwich panel

2. Solid eps cement sandwich panel

3. Ceramisite sandwich panel

4. Solid Ceramisite sandwich panel

5. Perlite sandwich panel

6. Solid perlite sandwich panel

7. Eps & Ceramicite Sandwich Panel

8. Solid Eps & Ceramicite Sandwich Panel



 Advantages of Vanjoin Sandwich panel:

  • Light weight: 1 person can take up two pieces of vanjoin panel.
  • Energy-saving, Eco-friendly: 100% non-asbestos.

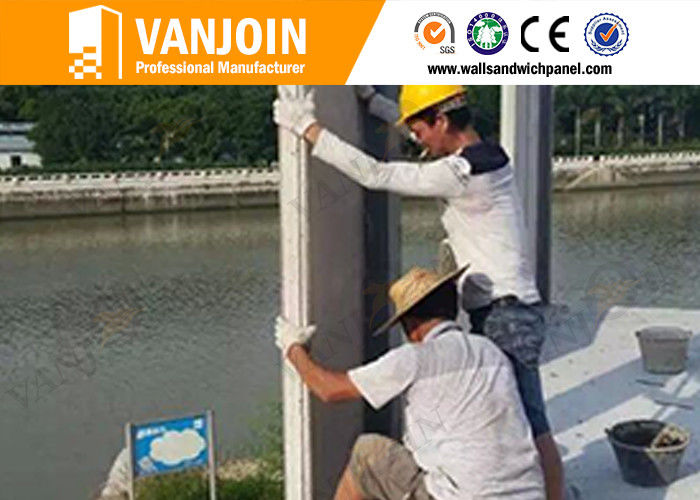

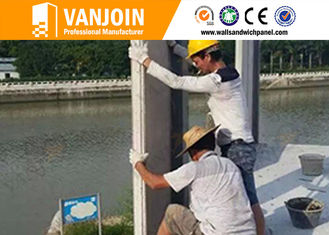

  • Easy to install, fast construction: Can build 75-80㎡ per day.
  • Strong and durable: Long life 60-70 years.
  • Heat insulation and preservation: Thermal conductivity: 0.221W/mk.
  • Sound insulation: 42 DB.
  • Weatherproof; windproof: 70m/s; grade 13.

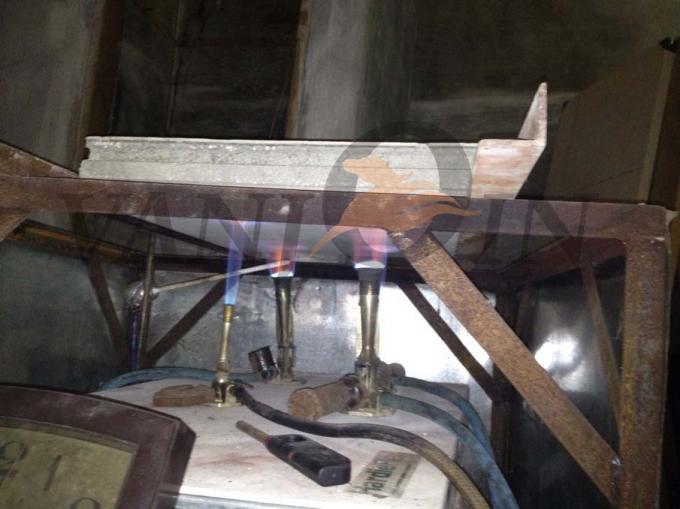

  • Fireproof: Our sandwich wall panel can keep well under 1000 degree temperature about 4 hours.
  • Anti-impact, anti-earthquake: Grade 8.

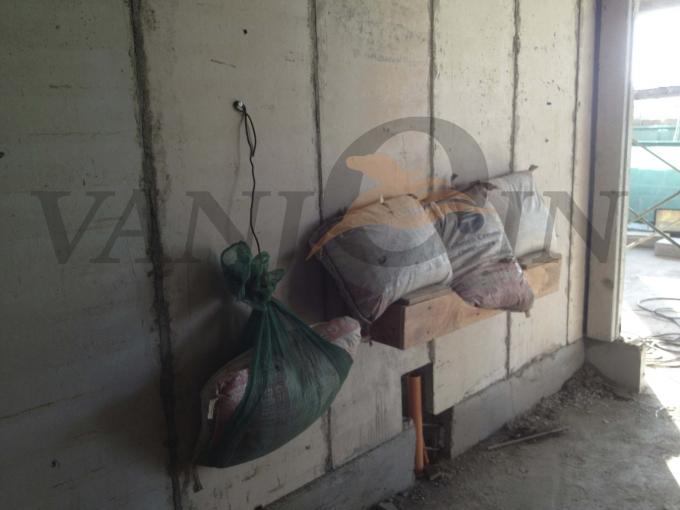

  • Best hanging strength : Single point hanging force is > 1200 N.
  • Weight capacity: 400KG / square meter.
  • Package: 189 pcs, 262 ㎡ per 20'ft container.

Heat insulation Lightweight Precast Concrete Panels Nonmetal Eps Sandwich Panel



Heat insulation Lightweight Precast Concrete Panels Nonmetal Eps Sandwich Panel



Technical Data :



Moisture Content

9%

Moisture Movement

0.06%

Resistance to Continuous Heating

80°C

Surface Alkalinity

pH 7-10

Non-combustibility(face board)

BS EN ISO 1182: 2002

BS476: Part 4

GB8624-1997, Grade A

Heat of Combustion(Face Board)

BS EN ISO 1716: 2002

Building Regulations Classification(face board)

Eur0 Class A1

Fire Rated Partition

4 hour FRP

BS EN 1364-1

BS 476: Part 22

GB/T9978

Water Tightness to ASTM c1185

No droplets observed behind the panel,

Test of 24 hours at 250mm water head

Surface damage by hard body impact

-heavy duty grade(BS 5234:Part: 2:1992, Annex B)

Pass

Resistance to crowd pressure-heavy duty grade

BS 5234:Part: 2:1992, Annex G

No collapse or damage

Anchorage

45kg

Acoustic Performance

-60mm thick

-75mm thick

-100mm thick

-120mm thick

-150mm thick



38dB

40dB

42dB

44dB

46dB
