Thermal Insulation Sandwich Panels EPS Ceramsite Cement Concrete Wall Board

China Thermal Insulation Sandwich Panels EPS Ceramsite Cement Concrete Wall Board supplier
Thermal Insulation Sandwich Panels EPS Ceramsite Cement Concrete Wall Board supplier Thermal Insulation Sandwich Panels EPS Ceramsite Cement Concrete Wall Board supplier Thermal Insulation Sandwich Panels EPS Ceramsite Cement Concrete Wall Board supplier Thermal Insulation Sandwich Panels EPS Ceramsite Cement Concrete Wall Board supplier

Large Image :  Thermal Insulation Sandwich Panels EPS Ceramsite Cement Concrete Wall Board

Product Details:

Place of Origin: China
Brand Name: Vanjoin
Certification: CE, BV, ISO
Model Number: WP-4-019R

Payment & Shipping Terms:

Minimum Order Quantity: Two 20GP
Price: negotiation
Packaging Details: Standard exporting packing (wrapped with plastic thin film, edge protect and good pallet)
Delivery Time: 15 working days after received the payment
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 200,000 sqm per month
Detailed Product Description
Product Name: Thermal Insulation Sandwich Wall Panels EPS Ceramsite Cement Concrete Board Core Material: EPS, Ceramsite,(ceramicite, Ceramic)cement, Sand, Patented Additive
Type: Composite Sandwich Board, Insulation Board, Precast Board Thermal Conductivity: 0.221W/mK, Excellent
High Strength: Anti-impact, High Load Bearing Soundproof: Excellent, 46dB
Service Time: 60-70 Years Life Span Usage: Roof, Floor, Interior Wall, Exterior Wall, Prefab House, High-rise Building, Villa

Thermal Insulation Sandwich Wall Panels EPS Ceramsite Cement Concrete Board



Thermal Insulation Sandwich Panels EPS Ceramsite Cement Concrete Wall Board

1. Introdution

Vanjoin eps ceramsite concrete board has high load bearing capacity, anti-static electricity, friction resistance, high strength, convenient for wire groove and water pipe inbuilt, corrosion resistance, no deformation, no split,etc.



It's stronger on strength, at the same time, it's not so heavy as ceramsite sandwich panel. It's the perfect balance of both two panels, which gives you wideer choice to meet your different needs.

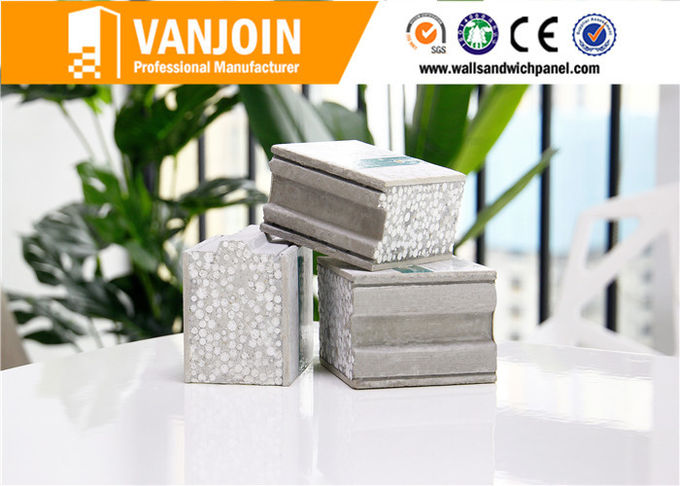

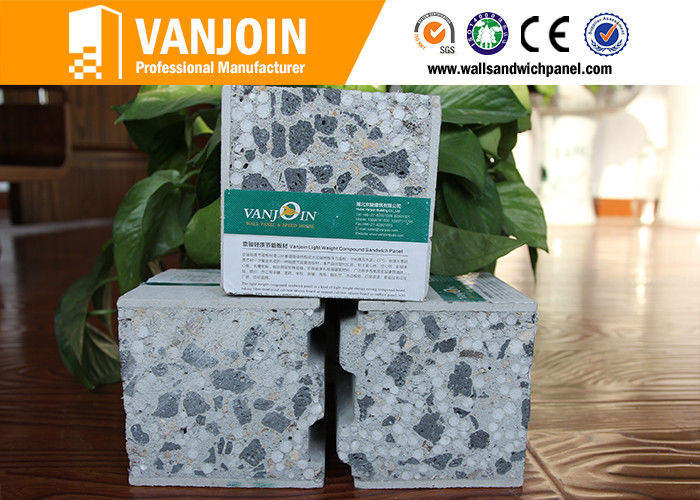

2. Comosition



Double sides surface boards, (calcium silicate boards);

Sandwich core material:

Eps beads, (expandable polystyrene foam);

Ceramsite/Ceramicite/Ceramic

Cement;

Sand;

Vanjoin patented additive



3. Specification

Length * Width * Thichness (mm)

2270*610*60

2270*610*75

2270*610*90

2270*610*100

2270*610*120

2270*610*150



4.Features

Name

Features

Light weight

Capacity 650kg/m3, 1/6 of traditional wall with same volume

Space saving

Save 4.26m2 per 100 m2

Waterproof

Excellent

Fireproof

A Grade,4 hours 1000 degree fire

Sound Insulation

46dB, soundproof, sound absorption

Hanging force

Single point hanging force 50kg
while embed hanging force can exceed 150kg

Windproof

75m/s; 270km/h

Anti-seismic

Class 8, anti earthquake

Anti-impact

High strength, 1.5 times of traditional wall

Fast construction

8~10 times of traditional wall, easy decoration

Eco-friendly

100% no asbestos, asbestos free

Service Life

60-70 years life span


Thermal Insulation Sandwich Panels EPS Ceramsite Cement Concrete Wall Board



5. Performance

Vanjoin Panels Performance

Thermal conductivity(BS 874: Part 2: 1986)

0.221 W/mK

Flexural Strength(longitudianal)

4.27 MPa

Flexural Strength(transverse)

4118N

Moisture Movement

0.06%

Moisture Content

9%

Resistance to continuous heating

80 °c

Surface Alkalinity

pH 7-10

Non-combustibility(face Boards)

BS EN ISO 1182: 2002
BS476: Part 4
GB8624-1997, Grade A

Heat of combustion(face boards)

BS EN ISO 1716: 2002

Building regulations classification(face boars)

Euro Class A1

Fire rated partition

2 hour FRP
BS EN 1364-1
BS 476: Part 22
GB/T9978

Water tightness to ASTM C1185

No droplets observed behind the panel,
Test of 24 hours at 250 mm water head

Partition stiffness-heavy duty grade
(BS 5234; Part2: 1992, Annex A)

Pass

Resistance to substructure damage by multiple impacts
from a large soft body
-heavy duty grade( BS 5234; Part2: 1992, Annex E)

No collapse of dislocation

Surface damage by hard body impact- heavy duty grade
(BS 5234; Part2: 1992, Annex B)

Pass

Effects of door slamming-heavy duty grade
BS 5234; Part2: 1992, Annex B

Pass

resistance to crowd pressure-heavy duty grade
BS 5234; Part2: 1992, Annex G

No collapse of damage

Resistance to anchorage(high level wall cupboard)
eccentric downward
BS 5234; Part2: 1992, Annex K

No damage or detachment of anchor

Anchorage Load

45 kg

Acoustic performance
- 60 mm thick
- 75 mm thick
- 100 mm thick
- 120 mm thick
- 150 mm thick


38 dB
40 dB
42 dB
44 dB
46 dB




Thermal Insulation Sandwich Panels EPS Ceramsite Cement Concrete Wall Board

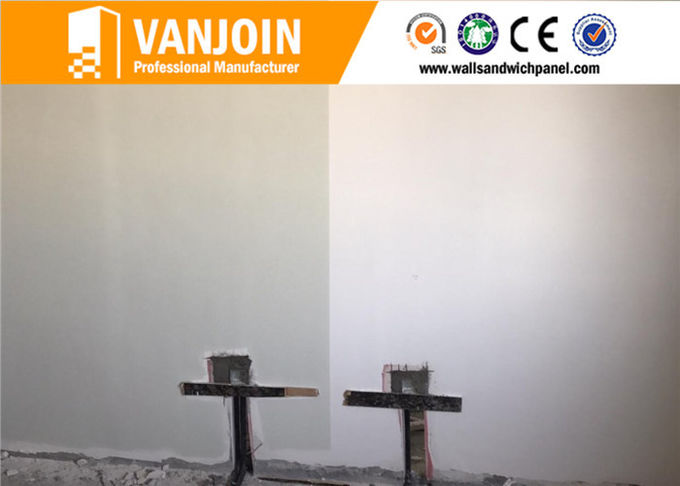

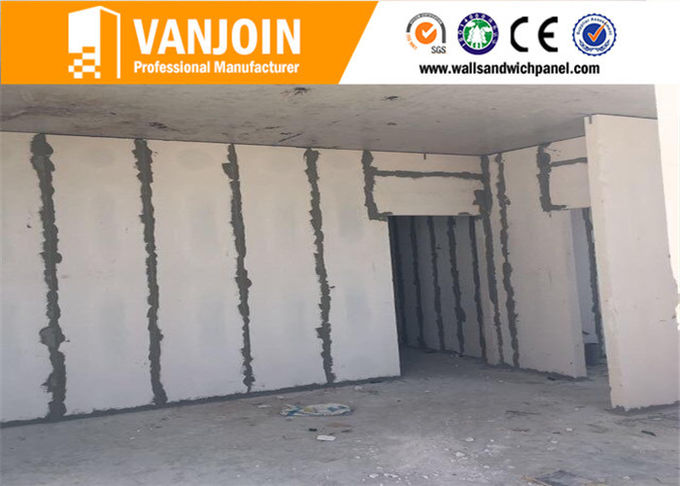

6. Installation
Setting the line and carrying the board in position;

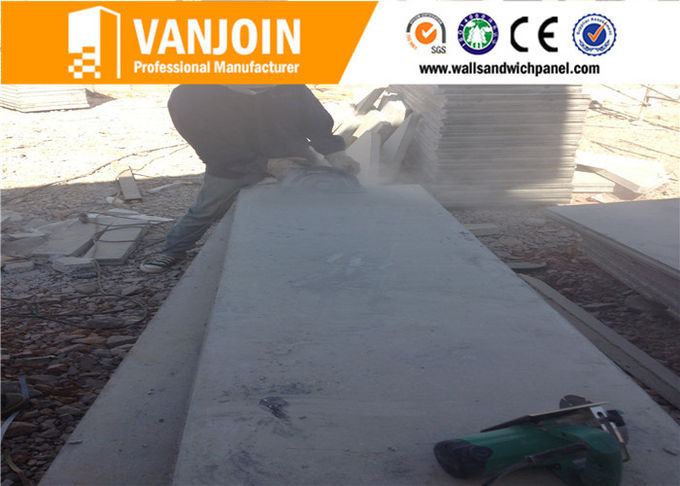

Sawing board basing on requirement;

Sizing cement on tenon side of two boards;

Carrying the board prepared to be installed to the installation place, correcting the wall board by gavelock and making it close tightly;

Grouting and filling starch;

Sticking fiber glass mesh;

Apply putty powder and level up;

Finished.


7. Packing and Shipping



Specification
(L*W*T)(mm)

Weight
(kg/m2)

Packing
(pcs/m2 per 20’GP)

Application

Vanjoin Eps Ceramsite

Concrete Board

2270*610*60

45~48

315pcs/436m2

Roof system

2270*610*75

50~53

252pcs/349m2

Floor system

2270*610*90

55~58

207pcs/287m2

Interior/Exterior wall

2270*610*100

60~65

189pcs/262m2

Interior/Exterior wall

2270*610*120

65~75

153pcs/212m2

Exterior wall

2270*610*150

80~90

126pcs/175m2

Exterior wall

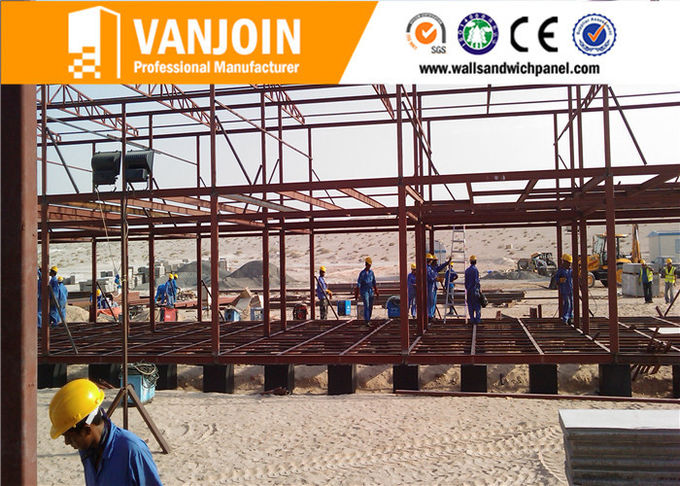

8. Application:

Eps ceramsite concrete board can be widely used as roof, floor, interior wall, exterior wall, prefab house, high-rise building, villa, etc.

It brings brand-new added value and application idea to the traditional roof construction. This system not noly solves the problems of roof leakage, but also has the advantages such as heat insulation, high temperature resistance, soundproof, etc.

Business Organizations

supermarket, large-scale shopping malls, exclusive agency, chain shops,
large-scale sales, star-rated hotels, restaurants, travel agencies, pharmacy.

Financial Organizations

Banks, negotiable securities, funds, insurance companies, pawnshops;
Non-profit Organizations: Telecommunications, post offices, hospital, schools;

Public Places

subway, airports, stations, gas stations, toll stations, bookstores, parks,
exhibition halls, stadiums,museums, convention centers, ticket agencies,
HR market, lottery centers; Real Estate Property:
Apartments, villas, offices, commercial buildings, model rooms;

Entertainments

Movie theaters, fitness halls, country clubs, clubs, massage rooms, bars,
cafes, Internet bars, beauty shops, golf course



Thermal Insulation Sandwich Panels EPS Ceramsite Cement Concrete Wall BoardThermal Insulation Sandwich Panels EPS Ceramsite Cement Concrete Wall Board
