Waterproof Solid Sandwich Heat Insulated Precast Wall Panels , ISO9001

Certification
Good quality EPS Cement Sandwich Panel for sales
Good quality EPS Cement Sandwich Panel for sales
Customer Reviews
I thought no body cares about others any more,but you changed this.

—— Mana AI Yaseen,Saudi Arabia

I appreciate very much your very kind attention to may request and it give to me a very strong confidence in your company in your services

—— Alfredo Friedmann,Paraguay

You are so kind and good service.

—— Samuel,Indonesia

You are star.I want to be your friend

—— Gert,South Africa

I'm Online Chat Now

Waterproof Solid Sandwich Heat Insulated Precast Wall Panels , ISO9001

China Waterproof Solid Sandwich Heat Insulated Precast Wall Panels , ISO9001 supplier
Waterproof Solid Sandwich Heat Insulated Precast Wall Panels , ISO9001 supplier Waterproof Solid Sandwich Heat Insulated Precast Wall Panels , ISO9001 supplier Waterproof Solid Sandwich Heat Insulated Precast Wall Panels , ISO9001 supplier Waterproof Solid Sandwich Heat Insulated Precast Wall Panels , ISO9001 supplier

Large Image :  Waterproof Solid Sandwich Heat Insulated Precast Wall Panels , ISO9001

Product Details:

Place of Origin: China
Brand Name: Vanjoin
Certification: CE, BV, ISO
Model Number: VJ-WPE-01

Payment & Shipping Terms:

Minimum Order Quantity: 1X20GP Container free sample available
Price: negotiation
Packaging Details: 1. Free packing ( with normal pallet and normal packing belt ) 2. Standard exporting packing ( wraped with plastic film , edge protect and good pallet )
Delivery Time: 7~10 working days after receive payments
Payment Terms: L/C,T/T,Western Union, D/A,D/P, MoneyGra
Supply Ability: 200000 Square Meter/Square Meters per Mont
Detailed Product Description
Product Name: Lightweight Heat Insulation Waterproof Solid Eps Sandwich Wall Panel Core Material: EPS, Cement, Sand, Water, Additive, Etc
Specification(L*W*T): 2270*610*60/75/90/100/120/150mm Surface Panel: Alicium Silicon Board
Advantages: Waterproof, Fireproof, Sound Insulation, Heat Insulation Panel Fireproof: Under 1000 Degree For 4 Hours Without Damage To The Wall
Service Life: 60-70 Years Anti-earthquake: Class 8
Thermal Conductivity: 0.221W/mK

 Lightweight Heat Insulation Waterproof Solid Eps Sandwich Wall Panel

※ 1. Composition of Heat Insulation Solid Eps Sandwich Wall Panel:



• Core materials: cement, EPS, sand and additives.

• Surface materials: fiber reinforced calcium silicate board or cement calcium silicate board.

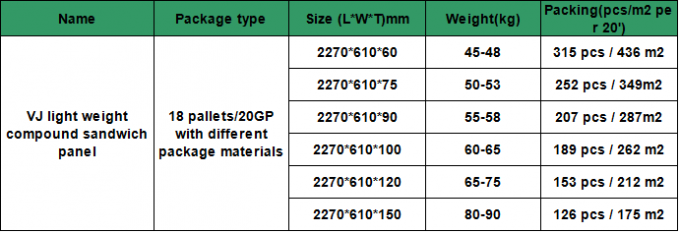

※ 2. Specification of Heat Insulation Solid Eps Sandwich Wall Panel:


• Thickness: 60, 75, 90, 100, 120, 150mm
• Width: 610mm
• Length: 2270mm (custom-made length can be made for volumn order)
Waterproof Solid Sandwich Heat Insulated Precast Wall Panels , ISO9001
 Remark: All kinds of panels can be customized by customers' specific requirement,
 such as density and length of panel.

※ 3. Features and Advantages of Heat Insulation Solid Eps Sandwich Wall Panel:



Heat Insulation Solid Eps Sandwich Wall Panel is fire proof, heat insulation, sound insulation, waterproof, windproof, anti-impact, anti-seismic.



Heat Insulation Solid Eps Sandwich Wall Panel is light weight, energy saving, space saving, eco-friendly, weathering resistance, good resistance to freezing, thawing and ageing.



Heat Insulation Solid Eps Sandwich Wall Panel is strong and durable, long life span. It has great load bearing & hanging force for TV, air conditioner, panel board, splitter box, cabinet, closet, etc.



Heat Insulation Solid Eps Sandwich Wall Panel is easy installation, fast construction, easy decoration, easy pre-bury for water pipe, electric wire, concealed wire, switch, etc.



Interior/Exterior
Sandwich Panel

Fast construction

75-80m2/day three workman

Sound insulation

46dB

Space saving

Save 4.26m2 per 100 m2 area

Anti-seismic

Class 7-8

Fireproof

4 hours, under 1000 degree centigrade

Eco-friendly

100% non-asbestos

Hanging force

Single point hanging force 50kg, Embed hanging force 150kg

Service Life

60-70years



※ 4. Installation of Heat Insulation Solid Eps Sandwich Wall Panel:



1. Setting the line and carrying
the board in position

Eject double lines of board thickness up and down the axes
of installed wall board, and easily carry to the side of wall
according to the specification needed;

2. Sawing board

Using hand-hold electric saw to cut freely according to the
 wall specification.

3. Sizing

Sizing cement on tenon side of two boards, then  spread
polymer mortar on the tenon side casually;

4. Installation

Carrying the board prepared to be installed to the
installation place, correcting the wall board by
gavelock and making it close tightly, and let the
polymer mortar squeeze out into full and fixing
it with a chock temporarily;

5. Correcting, fixing

Using the guiding rule of two meters to check the
verticality and leveling correction. Then using 6mm
or 8mm reinforcing steel bar and ribs adding with
construction sealant to fix;

6. Grouting and filling starch

Filling the strickling the corrected wall board with
polymer mortar, filling the big gap with pea gravel
concrete;

7. Sticking fiberglass mesh (we can supply )

After the polymer (for filling the gaps) and Wall are
shaped, sticking fiberglass mesh on the whole wall
with anti-crack mortar.

8. Installing electrical wires and switches

Setting lines on the places needing to be set with
concealed wire and switch box, then cut a groove
by hand-hold electric saw, filling with polymer mortar
after installation

9. Installing doorcase

Preparing door and window holes on the installed wall,
anchoraging by splint or lines.

10. Facing coating and wall papers

Scraping putty directly without plastering on the installed
wall, then brushing coating and sticking wall paper

11. Facing ceramic tile,decorative sheet

Sticking ceramic tiles or other wood facing panels
casually without plastering on installed wall.

12. Electric apparatus installation

Install lights, furniture, air-conditioners casually on
installed room ,can be nailed or hanged




※ 5. RFQ of Heat Insulation Solid Eps Sandwich Wall Panel:



1 : How many years your company have been in this field?
Ans: More than 10 years of manufacturing
Heat Insulation Solid Eps Sandwich Wall Panel, now we are the TOP 3 in middle of China, and among TOP 3 in China in this field.

2 : Main market of Vanjoin ?
Ans: Main market : Asia, South Amercia, Africa
         South East Asia is our largest market ,Mid East is our second largest market


3 : Exporting details :
Ans: loading & shipping 400 20ft every month


4 : More information of Vanjoin factory ?
Ans: Land area: 30,000m2 Machines: Fully automatic production line
         Productivity: 2,000,000m2 wall panel every year.


5 : How could I get the samples ?
Ans: We send you the free
Heat Insulation Solid Eps Sandwich Wall Panel samples, brochures & installation cd etc, you pay for the freight charges. If you get the TNT, DHL, UPS  Fedex account, that is the best. If not, you can transfer money to our West Union account , then we send you Heat Insulation Solid Eps Sandwich Wall Panel samples by Vanjoin account.
