Concrete Fireproof Heat Insulation Sandwich Wall Panels For Prefab House

Certification
Good quality EPS Cement Sandwich Panel for sales
Good quality EPS Cement Sandwich Panel for sales
Customer Reviews
I thought no body cares about others any more,but you changed this.

鈥斺 Mana AI Yaseen,Saudi Arabia

I appreciate very much your very kind attention to may request and it give to me a very strong confidence in your company in your services

鈥斺 Alfredo Friedmann,Paraguay

You are so kind and good service.

鈥斺 Samuel,Indonesia

You are star.I want to be your friend

鈥斺 Gert,South Africa

I'm Online Chat Now

Concrete Fireproof Heat Insulation Sandwich Wall Panels For Prefab House

China Concrete Fireproof Heat Insulation Sandwich Wall Panels For Prefab House supplier
Concrete Fireproof Heat Insulation Sandwich Wall Panels For Prefab House supplier Concrete Fireproof Heat Insulation Sandwich Wall Panels For Prefab House supplier Concrete Fireproof Heat Insulation Sandwich Wall Panels For Prefab House supplier Concrete Fireproof Heat Insulation Sandwich Wall Panels For Prefab House supplier

Large Image :  Concrete Fireproof Heat Insulation Sandwich Wall Panels For Prefab House

Product Details:

Place of Origin: China
Brand Name: Vanjoin
Certification: CE, BV, ISO
Model Number: VJ-WPE-01

Payment & Shipping Terms:

Minimum Order Quantity: 1X20GP Container free sample available
Price: negotiation
Packaging Details: 1. Free packing ( with normal pallet and normal packing belt ) 2. Standard exporting packing ( wraped with plastic film , edge protect and good pallet )
Delivery Time: 7~10 working days after receive payments
Payment Terms: L/C,T/T,Western Union, D/A,D/P, MoneyGra
Supply Ability: 200000 Square Meter/Square Meters per Mont
Contact Now
Detailed Product Description
Product Name: Prefab House Concrete Fireproof Insulation Sandwich Wall Panels Core Material: EPS, Cement, Sand, Water, Additive, Etc
Specification(L*W*T): 2270*610*60/75/90/100/120/150mm Surface Panel: Alicium Silicon Board
Advantages: Waterproof, Fireproof, Sound Insulation, Heat Insulation Panel Fireproof: Under 1000 Degree For 4 Hours Without Damage To The Wall
Service Life: 60-70 Years Anti-earthquake: Class 8
Thermal Conductivity: 0.221W/mK

Prefab House Concrete Fireproof Heat Insulation Sandwich Wall Panels

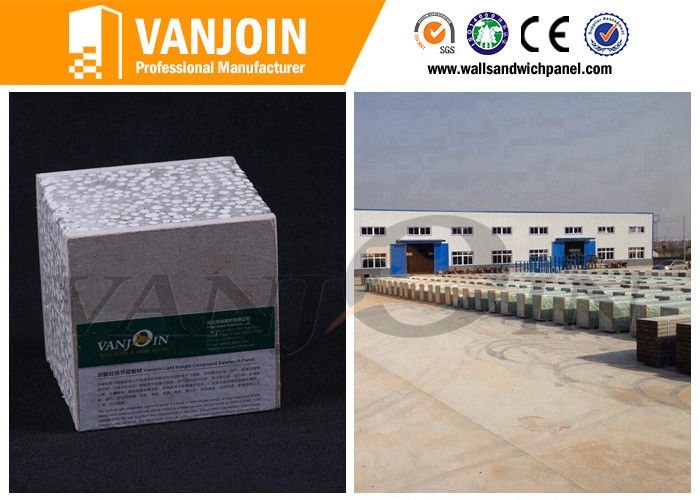

鈥 1. Composition of Concrete Fireproof Heat Insulation Sandwich Wall Panels:



• Core materials: cement, EPS, sand and additives.

• Surface materials: fiber reinforced calcium silicate board or cement calcium silicate board.




鈥 2. Specification of Concrete Fireproof Heat Insulation Sandwich Wall Panels:


• Thickness: 60, 75, 90, 100, 120, 150mm
• Width: 610mm
• Length: 2270mm (custom-made length can be made for volumn order)
Concrete Fireproof Heat Insulation Sandwich Wall Panels For Prefab House
 Remark: All kinds of Heat Insulation Solid Eps Sandwich Wall Panel can be customized by customers' specific requirement, such as density and length of panel.



鈥 3. Installation of Concrete Fireproof Heat Insulation Sandwich Wall Panels:



1. Setting the line and carrying
the board in position

Eject double lines of board thickness up and down the axes
of installed wall board, and easily carry to the side of wall
according to the specification needed;

2. Sawing board

Using hand-hold electric saw to cut freely according to the
 wall specification.

3. Sizing

Sizing cement on tenon side of two boards, then  spread
polymer mortar on the tenon side casually;

4. Installation

Carrying the board prepared to be installed to the
installation place, correcting the wall board by
gavelock and making it close tightly, and let the
polymer mortar squeeze out into full and fixing
it with a chock temporarily;

5. Correcting, fixing

Using the guiding rule of two meters to check the
verticality and leveling correction. Then using 6mm
or 8mm reinforcing steel bar and ribs adding with
construction sealant to fix;

6. Grouting and filling starch

Filling the strickling the corrected wall board with
polymer mortar, filling the big gap with pea gravel
concrete;

7. Sticking fiberglass mesh (we can supply )

After the polymer (for filling the gaps) and Wall are
shaped, sticking fiberglass mesh on the whole wall
with anti-crack mortar.

8. Installing electrical wires and switches

Setting lines on the places needing to be set with
concealed wire and switch box, then cut a groove
by hand-hold electric saw, filling with polymer mortar
after installation

9. Installing doorcase

Preparing door and window holes on the installed wall,
anchoraging by splint or lines.

10. Facing coating and wall papers

Scraping putty directly without plastering on the installed
wall, then brushing coating and sticking wall paper

11. Facing ceramic tile,decorative sheet

Sticking ceramic tiles or other wood facing panels
casually without plastering on installed wall.

12. Electric apparatus installation

Install lights, furniture, air-conditioners casually on
installed room ,can be nailed or hanged





鈥 4. Features and Advantages of Concrete Fireproof Heat Insulation Sandwich Wall Panels:



Concrete Fireproof Heat Insulation Sandwich Wall Panels is fire proof, heat insulation, sound insulation, waterproof, windproof, anti-impact, anti-seismic.



Concrete Fireproof Heat Insulation Sandwich Wall Panels is light weight, energy saving, space saving, eco-friendly, weathering resistance, good resistance to freezing, thawing and ageing.



Concrete Fireproof Heat Insulation Sandwich Wall Panels is strong and durable, long life span. It has great load bearing & hanging force for TV, air conditioner, panel board, splitter box, cabinet, closet, etc.



Concrete Fireproof Heat Insulation Sandwich Wall Panels is easy installation, fast construction, easy decoration, easy pre-bury for water pipe, electric wire, concealed wire, switch, etc.





鈥 5. RFQ of Concrete Fireproof Heat Insulation Sandwich Wall Panels:



1 : How many years your company have been in this field?
Ans: More than 10 years of manufacturing
Heat Insulation Solid Eps Sandwich Wall Panel, now we are the TOP 3 in middle of China, and among TOP 3 in China in this field.

2 : Main market of Vanjoin ?
Ans: Main market : Asia, South Amercia, Africa
         South East Asia is our largest market ,Mid East is our second largest market



3 : More information of Vanjoin factory ?
Ans: Land area: 30,000m2 Machines: Fully automatic production line
         Productivity: 2,000,000m2 wall panel every year.


4 : How could I get the samples ?
Ans: We send you the free
Heat Insulation Solid Eps Sandwich Wall Panel samples, brochures & installation cd etc, you pay for the freight charges. If you get the TNT, DHL, UPS  Fedex account, that is the best. If not, you can transfer money to our West Union account , then we send you Heat Insulation Solid Eps Sandwich Wall Panel samples by Vanjoin account.



Concrete Fireproof Heat Insulation Sandwich Wall Panels For Prefab HouseConcrete Fireproof Heat Insulation Sandwich Wall Panels For Prefab HouseConcrete Fireproof Heat Insulation Sandwich Wall Panels For Prefab House
