Product Details:
Payment & Shipping Terms:
|
| Product Name: | 50dB Sound Insulated Sandwich Wall Panles | Core Material: | EPS, Cement, Sand, Water, Additive, Etc |
|---|---|---|---|
| Construction Speed: | 80 M2 Per Day Per Two Person | Usage: | Exterior Wall, Interior Wall |
| Density: | 650 KG/M3 | Fire Resistant: | More Than 2 Hours |
| Service Time: | 60-70 Years | Hanging Force: | 70KG |
50dB Sound Insulated Sandwich Wall Panels Applied To Interior Wall
Advantages Of Sound Insulated Sandwich Wall Panle:
1. Most Area-saving. In comparison of the inner wall panel 75mm and 120mm, every 12m will increase practical area, for the 100㎡ house, it will increase 4.26㎡.
2. Most light weight, just sixth of the brick building
3. Most fire-proof. Under 1000 degree centigrade for 240 minutes, there isn't damage to the wall.
4. Most waterproof and dampproof. Because of the special featuresof the solid panel, the feature of waterproof and dampproof is very obvious. The experiment shows that without any waterproof facing, build one pool with our products, and fill it with water, the back of the wall can keep dry without ant blot.When in damp weather, there isn't any condensation wate.
5. Most sound-insulation. 46dB-50dB sound-insulation effect, accord with the national standard GBJ121-88.
6. Most anti-seismic and inpact resistance. Earthquake resistant level: M8.0
7. Best hanging strength. Expansion bol can be installed in random part of the wall, the point hanging force can reach more than 50kg(50-70kg). With other Pre-embedded material in the panel, the strength can reach 150kg
Comparision Between VJ Sandwich Wall Panel and Other Materials:
| Technology index | Vanjoin EPS Panel | Metal frame and plaster board | Gypsum block |
| Weight | 35kg/m2(60mm thickness) | 20kg/m2 | 45kg/m2 |
| Sound insulation | excellent,46dB | Almost no | poor |
| Waterproof | excellent | poor | poor |
| Heat insulation | excellent | no | normal |
| Anti-impact capacity/Hanging force | high impact single hanging force is over 50KGS | no | can impact,normal hanging force |
| Decoration difficulty | easy and without any limiations | hard,with limiations | General difficulty |
| Wall thickness | 60mm,increased interior space | 91mm | 75mm |
| Useful life | 60-70 years | 2-3 years | 15-20 years |
| Material secondary use | 80% can be used | no | almost no |
| Construction efficiency | fast | faster | faster |
| Time and labor cost | Low | High | High |

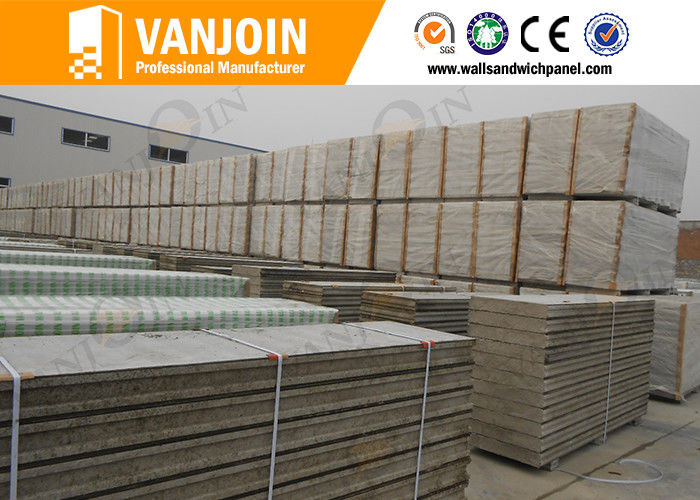

Packaging & Shipping of VJ Sandwich Wall Panel:
|
Specification (mm) |
Weight (kg/m2) |
Packing |
|
2270x610x60 |
45~48 |
315pcs, 436m2 |
|
2270x610x75 |
50~53 |
252pcs, 349m2 |
|
2270x610x90 |
55~58 |
207pcs, 287m2 |
|
2270x610x100 |
60~65 |
189pcs, 262m2 |
|
2270x610x120 |
65~75 |
153pcs, 212m2 |
|
2270x610x150 |
80~90 |
126pcs, 175m2 |
Application of VJ Sandwich Wall Panel:

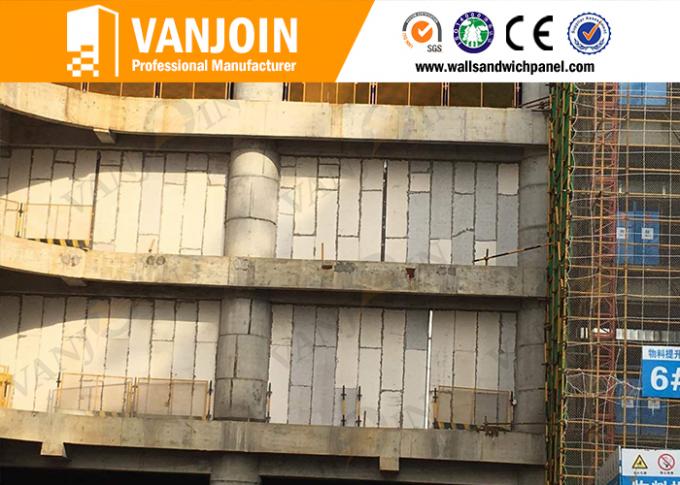

For interior and exterior wall partition on steel or concrete structure building, new construction or renovations. It can replace construction materials such as block, wire spatial grid structure perlite board, perlite porous board and etc. It can widely be applied to wall materials of various high and low buildings such as bank, office building, hospital, school, hotel, mall, amusement, old house reconstruction, residence and workshop.
Sandwich Wall Panels:
