Steel Structural Waterproof Wall Board , EPS Composite Sandwich Panels

China Steel Structural Waterproof Wall Board , EPS Composite Sandwich Panels supplier
Steel Structural Waterproof Wall Board , EPS Composite Sandwich Panels supplier Steel Structural Waterproof Wall Board , EPS Composite Sandwich Panels supplier Steel Structural Waterproof Wall Board , EPS Composite Sandwich Panels supplier Steel Structural Waterproof Wall Board , EPS Composite Sandwich Panels supplier Steel Structural Waterproof Wall Board , EPS Composite Sandwich Panels supplier

Large Image :  Steel Structural Waterproof Wall Board , EPS Composite Sandwich Panels

Product Details:

Place of Origin: China
Brand Name: Vanjoin
Certification: CE, BV, ISO
Model Number: VJ-WP-LX008 Composite Sandwich Wall Panels

Payment & Shipping Terms:

Minimum Order Quantity: 300銕
Price: negotiation
Packaging Details: Standard Exporting Packing( (wrapped with plastic thin film,wedge protect and good pallet) )
Delivery Time: 7-15 days after getting advanced payment
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 4,000,000銕 per year
Contact Now
Detailed Product Description
Types: EPS Composite Sandwich Wall Panels Application: Interior And Exterior Wall, Roof And Floor
Thickness: 60, 75, 90, 100, 120, 150mm Sound Insulation: 38dB-46dB
Non-combustibility: Grade A, BS EN ISO1182:2002 Waterproof: Good
Light Weight: 1/6 Of Traditional Brick Fireproof: 4 Hours FRP
Anti-seismic: 7-8 Class Heat Insulated: Good



Steel Structural Waterproof Wall Board , EPS Composite Sandwich Panels


Vanjoin lightweight compound EPS sandwich panels is a kind of energy saving light weight compound board.
It can replace construction materials like red brick, clay solid brick, air brick, color-coated steel sandwich wall board, gypsum block, wire spatial grid structure perlite board and perlite porous board.

I. Composition of EPS Composite Sandwich Wall Panels
EPS Sandwich Wall Panel take 5mm Calcium Silicon Board as surface panel, with EPS / ceramsite / perlite, Cement, Sand or fly ash as filler.

II. Specification of EPS Composite Sandwich Wall Panels



Length   Width     Thickness    Weight  Application
       2270mm        610mm        60mm         45-48kg/銕                    Roof
       75mm         50-53kg/銕               Interior wall
       90mm         55-58kg/銕          Interior / Exterior wall
      100mm         60-65kg/銕          Interior / Exterior wall
      120mm         65-75kg/銕               Exterior wall
      150mm         80-90kg/銕                Exterior wall
 Allowed Tolerance: Length±5mm; Width±2mm; Thickness±1mm; Diagonal±2mm












Remark: All kinds of EPS sandwich wall panel can be customized by customers' specific requirements,
such as density and length of panels.

III. Main Features of EPS Composite Sandwich Wall Panels
1. Light weight: 1/6 of traditional brick
2. Fireproof: 4 hours 1000 degree; Grade A(GB/T9987)
3. Area-saving:save 4 m² per 100 m², if using our sandwich panel
4. Waterproof: Good waterproof perfermance
5. Sound-insulation:38dB-46dB, 38dB for 60mm thickness panel, 46dB for 150mm panel.
6. Fast and easy construction, Labor saving: two workers can install 50-80 m2/day.
7. Long life usage:70 years


IV. Application of EPS Composite Sandwich Wall Panels

Our EPS Sandwich Wall Panels can be widely applied to varoius high and low buildings, such as bank, office building, hotels, school, shopping mall, amusement hall, portable dwellings, warehouse, family house, house resconstruction, workshop and ect.

Vanjoin EPS Composite Sandwich Wall Panels can used as 4 systems:
1. Interior partition wall
2. Exterior wall system
3. Roof system
4. Floor system


V. Packing Size & Details of EPS Composite Sandwich Wall Panels


Length Width Thickness Packing Size of 20' GP Container
2270mm 610mm 60mm 315pcs / 436銕
75mm 252pcs / 349銕
90mm 207pcs / 287銕
100mm 189pcs / 262銕
120mm 153pcs / 212銕
150mm 126pcs / 175銕

Packing Details 1. Free packing with normal pallet and packing belt
2. Standard exporting packing wrapped with plastic thin film,wedge protect & good pallet
3. Packing size: 1500-3000*610*1000mm
4. Loading 18 pallets per 20' container

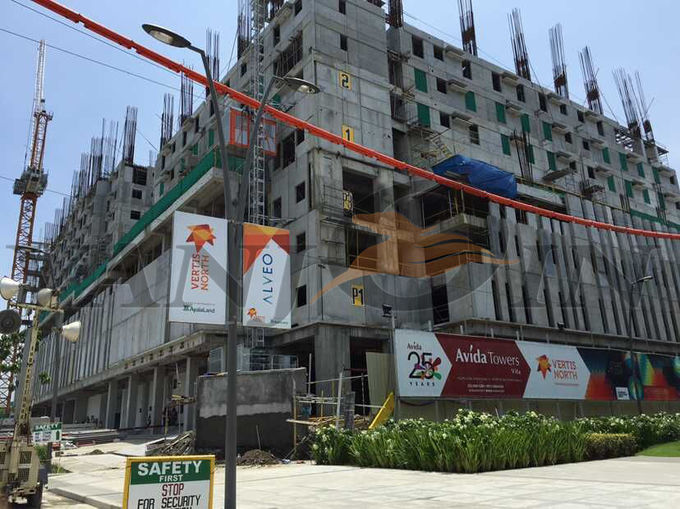

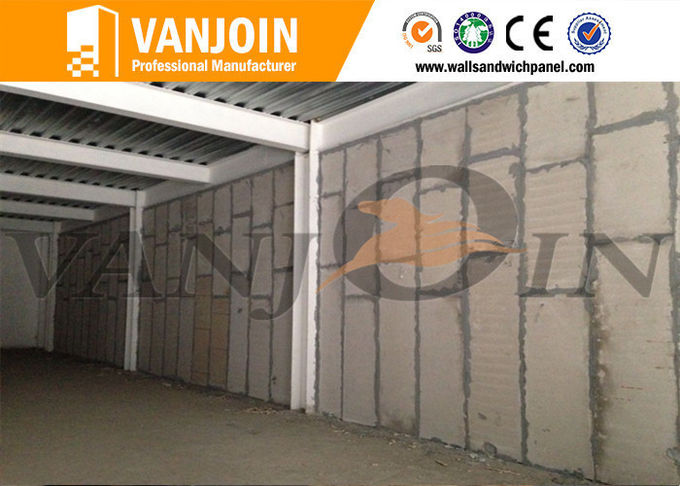

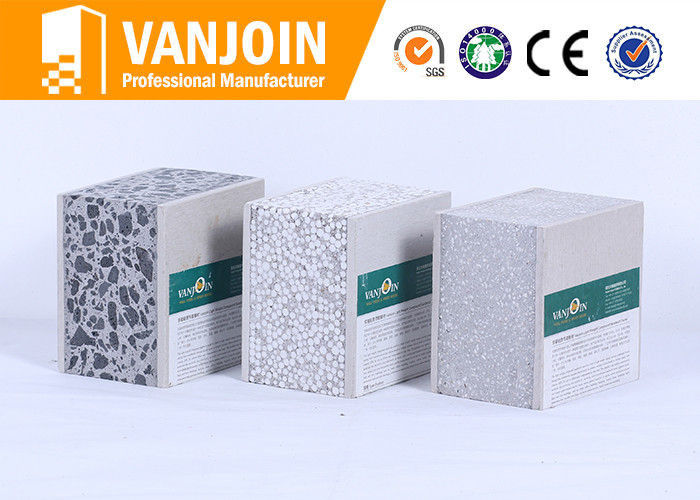

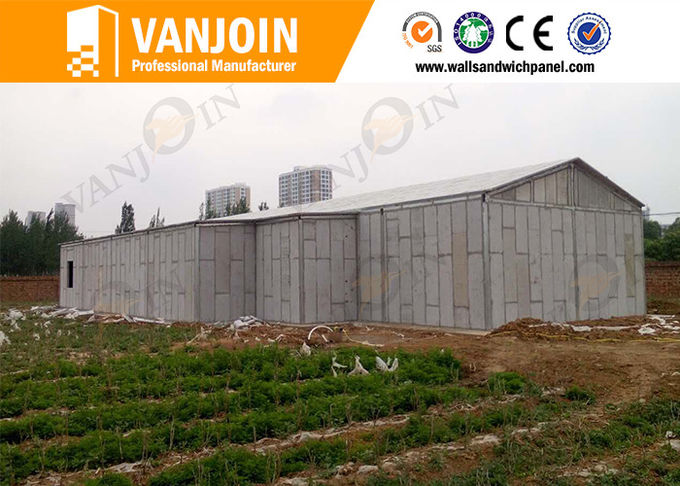

VI. Photos of EPS Composite Sandwich Wall Panels for your reference

Steel Structural Waterproof Wall Board  EPS Composite Sandwich PanelsSteel Structural Waterproof Wall Board  EPS Composite Sandwich Panels

Steel Structural Waterproof Wall Board  EPS Composite Sandwich Panels

Steel Structural Waterproof Wall Board  EPS Composite Sandwich Panels
