Sound insulation precast concrete wall panels in modern prefabricated house

China Sound insulation precast concrete wall panels in modern prefabricated house supplier
Sound insulation precast concrete wall panels in modern prefabricated house supplier Sound insulation precast concrete wall panels in modern prefabricated house supplier Sound insulation precast concrete wall panels in modern prefabricated house supplier Sound insulation precast concrete wall panels in modern prefabricated house supplier

Large Image :  Sound insulation precast concrete wall panels in modern prefabricated house

Product Details:

Place of Origin: China
Brand Name: Vanjoin
Certification: CE, BV, ISO
Model Number: VJWP-SW-4

Payment & Shipping Terms:

Minimum Order Quantity: 1X20 GP
Price: negotiation
Packaging Details: 1. free package (normal pallet +normal belt ) 2. standard package(good pallet+coner protect paper+packing belt+plastic thin film )
Delivery Time: 7-10 working days after received advanced payment
Payment Terms: T/T, L/C, Western Union,MoneyGram,etc.
Supply Ability: 200,000 m2 per month
Detailed Product Description
Raw Material: EPS, Sand/fly Ash, Cement, Additive Size (L*W*T): 2270mmx610mmx60mm(75,60,100,120,150)
Material: Nonmal Application: Exterior Wall, Interior Wall, Roof And Floor
Fireproof: 240 Minutes – Class A Live Load: 600kg/m2
Anti-earthquake: 8-13 Grade Service Life: 50-60 Years

Sound insulation precast concrete wall panels in modern prefabricated house



 1. Description of wall Panel



Lightweight EPS Cement Sandwich wall panel for board is a kind of light weight energy-saving green compound board material taking fiber reinforced calcium silicon board or cement calcium silicon board as panel, with cement, EPS, fly ash as fillers and forming by one time compound .It can widely be applied to wall materials of various high and low building such as: bank, office building, hopstial, school, hotel, mall, amusement hall, active barrack, old house reconstruction, residence and workshop ,etc.



Composition



Core materials: cement, EPS, and fly ash or sand core

Surface materials: fiber reinforced calcium silicone board or cement calcium silicone board



2. Specifications of VANJOIN Partition Panel



Name

Size(L*W*T)mm

Weight (kg/m2)

Packing       (pcs/m2 20’GP)

Application

EPS Cement Sandwich Wall Panel



2270x610x60

45-48

315 pcs /436 m2

Roof, interior wall

2270x610x75

50-53

252pcs / 349 m2

Interior wall

2270x610x90

55-58

207pcs / 287 m2

Interior/exterior wall

2270x610x100

60-65

189pcs / 262 m2

Interior/exterior wall

2270x610x120

65-75

153pcs / 212 m2

Exterior wall

2270x610x150

80-90

126pcs / 175 m2

Exterior wall



3.  Advantages of wall Panel



Light weight

1 person can take up two pieces of Vanjoin panel

Energy-saving, Eco-friendly

100% non-asbestos

Easy to install, fast construction

3 workers can finish a 70 m2 house just by 1 week

Strong and durable

Long life 60-70 years

Heat insulation and preservation

Thermal conductivity: 0.221W/mk

Sound insulation

42-46 DB

Weatherproof; windproof

70m/s; grade 13

Fireproof

The panel can keep well about 4 hours under 1000 degree temperature

Anti-impact, anti-earthquake

Grade 8

Best hanging strength

Single point hanging force is > 1200 N

Weight capacity

600KG / square meter



4. Comparison wall Panel with other Building Material



Internal Wall

Weight(kg/m2)

Total Weight (kg/m2)

Material

Specification

Material

Plastering



Sand Lime Brick

180

324

80

404

120

216

80

296

90

162

80

242

Aerated Concrete Brick

180

144

80



120

96

80

224

90

72

80

152

Hollow Brick

180

180

80

262

120

120

80

200

90

90

80

170

VANJOIN Wall Panel

90

55

0

55

75

51

0

51

60

45

0

45

External Wall

Weight (kg/m2)

Total Weight (kg/m2)

Material

Specification

Material

Plastering



Sand Lime Brick

240

438

80

518

180

324

80

296

120

216

80

242

Aerated concrete brick

240

144

80

224

180

240

80

176

120

180

80

152

Hollow Brick

240

240

80

260

180

180

80

200

120

120

80

170

VANJOIN wall panel

150

85

40

125

120

70

40

110

100

63

40

105



5. FAQ



1.) How many years your company has been in this field?



ANs: More than 10 years of manufacturing EPS concrete sandwich wall panel, now we are TOP 1 In middle of China, and among top 2 in china in this field .



2.) Where is your main market of VANJOIN?



ANs: Main market Asia, South America, Africa,South East Asia is our largest market, Mid East is our second largest market.



3.)Exporting details :



ANS: Loading & shipping 400 x 20 GP each month.



4.) More information of VANJOIN factory?



ANS: land area 30,000 m2 machines, full-automatic production line Productivity: 2,000,000 m2 wall panel per year.



5.)How could i get the samples?



ANS: We send you the free samples, catalogues, installation CD, but the Express charge is required, if you have the DHL, TNT, UPS, FedEx account, this is the best. If not, you can transfer money to our Western Union, then we will send you.

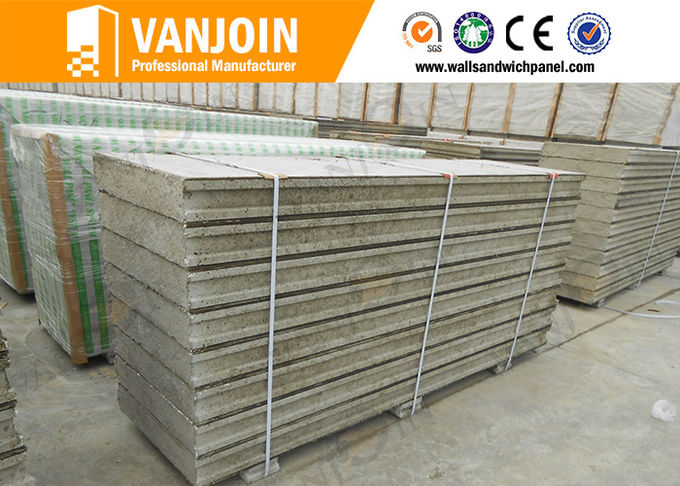

 6. Package Picture:



Sound insulation precast concrete wall panels in modern prefabricated house
