High rise concrete / steel structure insulated building panels Heat Resistance

China High rise concrete / steel structure insulated building panels Heat Resistance supplier
High rise concrete / steel structure insulated building panels Heat Resistance supplier High rise concrete / steel structure insulated building panels Heat Resistance supplier High rise concrete / steel structure insulated building panels Heat Resistance supplier High rise concrete / steel structure insulated building panels Heat Resistance supplier High rise concrete / steel structure insulated building panels Heat Resistance supplier

Large Image :  High rise concrete / steel structure insulated building panels Heat Resistance

Product Details:

Place of Origin: China
Brand Name: Vanjoin
Certification: CE, BV, ISO
Model Number: VJWP-SW-17

Payment & Shipping Terms:

Minimum Order Quantity: 1x20 GP
Price: negotiation
Packaging Details: 1. free package (normal pallet + belt ) 2 .standard package (good pallet+corner protect paper +plastic thin film )
Delivery Time: 7-10 working days after received advanced payment
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 200,000 m2 per month
Contact Now
Detailed Product Description
Raw Material: EPS, Sand/fly Ash, Cement, Additives Size (L*W*T): 2270mmx610mmx60mm(75,60,100,120,150)
Fast Construction: 30-40 銕 /day One Person Fireproof: 240 Minutes 鈥 Class A
Anchorage Load: 50kg Heat Resistance: 80 C
Certification: ISO/BV/CE/ Waterproof: Good
Sound Insulation: 46dB Structure: Concrete Or Steel Structure



High rise concrete / steel structure insulated building panels Heat Resistance

1 . Description:

Precast concrete wall panel is a kind of green building material instead of tradditional brick,red brick,clay solid brick,air brick,color-coated steel sandwich board,gypsum blocak and so on .

It can widely be applied to wall materials of various high and low building, such as: bank, office building, hospital, school, hotel, mall, amusement hall, active barrack, old house reconstruction, residence and workshop .

2 . Size of wall Panel

Name

Size(L*W*T)mm

Weight (kg/m2)

Packing(pcs/m2 20’GP)

Application

EPS Cement sandwich wall panel


2270x610x60

45-48

315 pcs /436 m2

Roof, interior wall

2270x610x75

50-53

252pcs / 349 m2

Interior wall

2270x610x90

55-58

207pcs / 287 m2

Interior/exterior wall

2270x610x100

60-65

189pcs / 262 m2

Interior/exterior wall

2270x610x120

65-75

153pcs / 212 m2

Exterior wall

2270x610x150

80-90

126pcs / 175 m2

Exterior wall


3 . Advantages of wall panel



Light weight 1 person can take up two pieces of Vanjoin panel
Energy-saving, Eco-friendly 100% non-asbestos
Easy to install, fast construction 3 workers can finish a 70 m2 house just by 1 week
Strong and durable Long life 60-70 years
Heat insulation and preservation Thermal conductivity: 0.221W/mk
Sound insulation 42-46 DB
Weatherproof; windproof 70m/s; grade 13
Fireproof The panel can keep well about 4 hours under 1000 degree temperature
Anti-impact, anti-earthquake Grade 8
Best hanging strength Single point hanging force is > 1200 N
Weight capacity 600KG / square meter


4 . Technical Data:


Technology index

Metal frame and plaster boad

VJ EPS Panel

GRC Board

Gypsum block

Weight

20kg/m2

35kg/m2(60mm thickness)

40kg/m2

45kg/m2

Sound insulation

Almost no

excellent,46dB

normal

poor

Waterproof

poor

excellent

normal

poor

Heat insulation

no

excellent

normal

normal

Anti-impact capacity/Hanging force

no

high impact single hanging force is 50KGS

can impact,good hanging force

can impact,normal hanging force

Decoration difficulty

hard,with limiations

easy and without any limiations

General difficulty

General difficulty

Wall thickness

91mm

60mm,increased interior space

60mm

75mm

Useful life

2-3 years

60-70 years

20-30 years

15-20 years

Material secondary use

no

80% can be used

some available

almost no

Construction efficiency

faster

fast

faster

faster



5. Comparison VANJOIN Wall Panel with other Building Material



Internal Wall Weight(kg/m2) Total Weight (kg/m2)
Material Specification Material Plastering
Sand Lime Brick 180 324 80 404
120 216 80 296
90 162 80 242
Aerated Concrete Brick 180 144 80
120 96 80 224
90 72 80 152
Hollow Brick 180 180 80 262
120 120 80 200
90 90 80 170
VANJOIN Wall Panel 90 55 0 55
75 51 0 51
60 45 0 45
External Wall Weight (kg/m2) Total Weight (kg/m2)
Material Specification Material Plastering
Sand Lime Brick 240 438 80 518
180 324 80 296
120 216 80 242
Aerated concrete brick 240 144 80 224
180 240 80 176
120 180 80 152
Hollow Brick 240 240 80 260
180 180 80 200
120 120 80 170
VANJOIN wall panel 150 85 40 125



6 . FAQ:

1 ). How many years your company has been in this field?

VANJOIN: More than 10 years of manufacturing EPS concrete sandwich wall panel,
                 now we are TOP 1 In middle of China, and among top 2 in china in this field .

2 ).Where is your main market of VANJOIN?

VANJOIN: Main market Asia, South America, Africa,South East Asia is our largest market,
                Mid East is our second largest market.

3 ).  Exporting details :

VANJOIN: Loading & shipping 400 x 20 GP each month.

4 ).  More information of VANJOIN factory?

VANJOIN: land area 30,000 m2 machines, full-automatic production line Productivity:
                2,000,000 m2 wall panel per year.

5 ).  How could i get the samples?

VANJOIN: We send you the free samples, catalogues, CD, but the Express charge is required,                                     if you have the DHL, TNT, UPS, FedEx account, this is the best.
                  If not, you can transfer money to our Western Union, then we will send you.

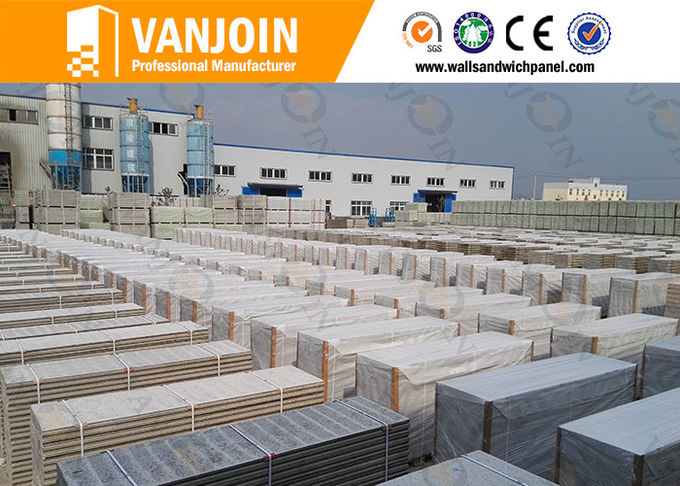

 7. Package photoes



High rise concrete / steel structure insulated building panels Heat Resistance
