Heat Insulation 100mm Precast Concrete Wall Panels For High Stories Steel Structure Building

Certification
Good quality EPS Cement Sandwich Panel for sales
Good quality EPS Cement Sandwich Panel for sales
Customer Reviews
I thought no body cares about others any more,but you changed this.

鈥斺 Mana AI Yaseen,Saudi Arabia

I appreciate very much your very kind attention to may request and it give to me a very strong confidence in your company in your services

鈥斺 Alfredo Friedmann,Paraguay

You are so kind and good service.

鈥斺 Samuel,Indonesia

You are star.I want to be your friend

鈥斺 Gert,South Africa

I'm Online Chat Now

Heat Insulation 100mm Precast Concrete Wall Panels For High Stories Steel Structure Building

China Heat Insulation 100mm Precast Concrete Wall Panels For High Stories Steel Structure Building supplier
Heat Insulation 100mm Precast Concrete Wall Panels For High Stories Steel Structure Building supplier Heat Insulation 100mm Precast Concrete Wall Panels For High Stories Steel Structure Building supplier Heat Insulation 100mm Precast Concrete Wall Panels For High Stories Steel Structure Building supplier Heat Insulation 100mm Precast Concrete Wall Panels For High Stories Steel Structure Building supplier

Large Image :  Heat Insulation 100mm Precast Concrete Wall Panels For High Stories Steel Structure Building

Product Details:

Place of Origin: China
Brand Name: Vanjoin
Certification: CE, BV, ISO
Model Number: VJ-WL-WP-105

Payment & Shipping Terms:

Minimum Order Quantity: 1X20GP Container free sample available
Price: negotiation
Packaging Details: 1. Free packing ( with normal pallet and normal packing belt ) 2. Standard exporting packing ( wraped with plastic film , edge protect and good pallet )
Delivery Time: 7~10 working days after receive payments
Payment Terms: L/C,T/T,Western Union, D/A,D/P, MoneyGra
Supply Ability: 200000 Square Meter/Square Meters per Mont
Contact Now
Detailed Product Description
Color: Grey Use Life: 70Years
Fireproof: 240 Minutes 鈥 Class A Waterproof: Good
Hanging Force: More Than 50KG Feathures: Fast Construction, Anti-earthquake, Light Weight, Save Space
Panel Material: Nonmetal Advantages: Waterproof , Heat Resistant, Eco-friendly



Heat Insulation 100mm Precast Concrete Wall Panels For High Stories Steel Structure Building



1. Composition:





EPS Concrete Sandwich Panel is a kind of light weight energy saving composite wall panel which takes calcium boardas face panel, with cement and EPS polystyrene grain as core and moulding by one time.

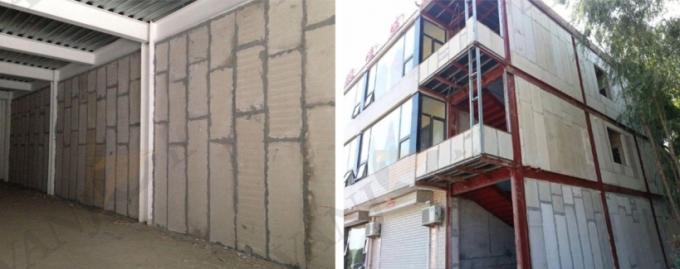

They are widely used as interiorwall, exterior wall, floor, roof, etc



2. Application:



Can replace construction materials as red bricks, clay solid bricks, air bricks, color-coated steel

sandwich boards, gypsum blocks, wire spatial grid structure perlite boards, and perlite porous board



Can widely be applied to wall materials of various high and low buildings such as banks, office buildings,

hospitals, schools, hotels, malls, amusement halls, active barracks, old houses reconstruction, residences,

and workshops

Heat Insulation 100mm Precast Concrete Wall Panels For High Stories Steel Structure Building



3.Specification(Length*Width*Thickness) ,Application & Loading details



Length *Width *Thickness ( 2270---3000)mm*610mm*(60,75,90,100,120,150,180mm)



Specification

( Length *Width*Thikcness )

Loading on 20ft

(pcs/m2)

Usage of Different Thickness
2270mm*610mm*60mm 315pcs / 436 m2 Internal wall & Roof
2270mmx610mmx75mm 252pcs/ 349 m2 Internal wall
2270mmx610mmx90mm 207pcs/ 287 m2
2270mmx610mmx100mm 189pcs/ 262 m2 Internal & External wall
2270mmx610mmx120mm 153pcs/ 212 m2 External wall
2270mmx610mmx150mm 126pcs/ 175m2





4. Features and Advantages of EPS Cement Wall Panel:



鈥 Fast construction (25m2/day/person)
鈥 Windproof (65m/s)
鈥 Sound insulation(46dB)
鈥 Anti-impact, Anti-seismic (class: 8)
鈥 Waterproof, Fireproof (4 hours, under 1000 degree centigrade)
鈥 Light weight, Energy-saving
鈥 Eco-friendly green material
鈥 Save area, Easy installation
鈥 Heat insulation & preservation
鈥 Strong and durable, 60-70 years life span



5.About Vanjoin:



We are experienced in this field for 10 years;

We have a 40,000m2 factory, with 60000m2 sotcking area;

We are ranking Top 2 in China, and Top 1 in middle of China;

We are certificated with CE, , ISO9001, ISO14000, Invention Patent, STC tests, etc;

Our production capacity is 2,000,000m2/year;

Our average exports is over 400 containers/month;

Our main markets: Southeast Asia, Africa, Middle East, South America, Oceania, Europe, etc.

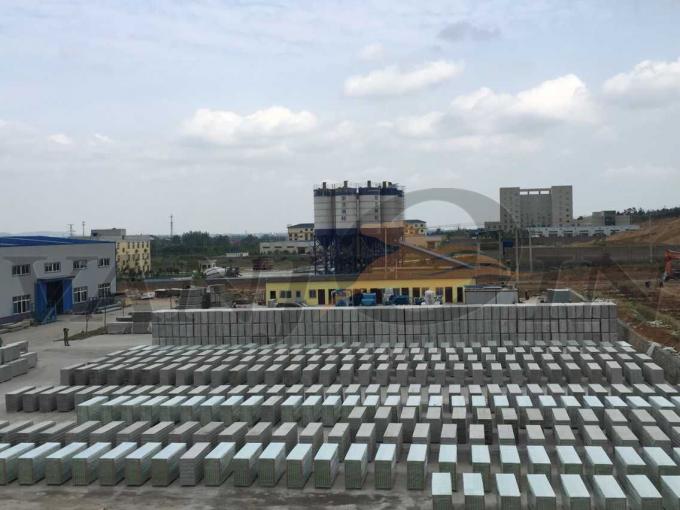

Vanjoin Factory :



Heat Insulation 100mm Precast Concrete Wall Panels For High Stories Steel Structure Building
