Product Details:
Payment & Shipping Terms:
|
| Types: | Nonmetal Precast Concrete Wall Panels | Application: | Interior And Exterior Wall, Roof And Floor |
|---|---|---|---|
| Thickness: | 60, 75, 90, 100, 120, 150mm | Sound Insulation: | 38dB-46dB |
| Non-combustibility: | Grade A, BS EN ISO1182:2002 | Waterproof: | Good |
| Light Weight: | 1/6 Of Traditional Brick | Fireproof: | 4 Hours FRP |
| Anti-seismic: | 7-8 Class | Heat Insulated: | Good |
Heat Insulation Precast Concrete Wall Panels , Exterior Structural Insulated Panel
Vanjoin lightweight compound EPS sandwich panels is a kind of energy saving light weight compound board.
It can replace construction materials like red brick, clay solid brick, air brick, color-coated steel sandwich wall board, gypsum block, wire spatial grid structure perlite board and perlite porous board.
I. Composition of Insulated Exterior Precast Concrete Wall Panels
EPS Sandwich Wall Panel take 5mm Calcium Silicon Board as surface panel, with EPS / ceramsite / perlite, Cement, Sand or fly ash as filler.
II. Specification of Insulated Exterior Precast Concrete Wall Panels
| Length | Width | Thickness | Application |
| 2270mm | 610mm | 60mm | Roof |
| 75mm | Interior wall | ||
| 90mm | Interior / Exterior wall | ||
| 100mm | Interior / Exterior wall | ||
| 120mm | Exterior wall | ||
| 150mm | Exterior wall | ||
| Packing Details | 1. Free packing | with normal pallet and packing belt | |
| 2. Standard exporting packing | wrapped with plastic thin film,wedge protect & good pallet | ||
| 3. Packing size: | 1500-3000*610*1000mm | ||
| 4. Loading | 18 pallets per 20' container | ||
III. Application of Insulated Exterior Precast Concrete Wall Panels
Usage of sandwich wall panel:
IV. Main Features of Insulated Exterior Precast Concrete Wall Panels
1. Light weight
The weight of Vanjoin EPS Sandwich Wall Panel is only 1/6 of traditional brick
2. Fireproof
Our sandwich panel approved fireproof test for 4 hours 1000 degree; got Grade A(GB/T9987).
3. Area-saving
Comparing with tradition building materials, you can save 4 m² per 100 m², if using our sandwich panel.
4. Waterproof
Good waterproof perfermance. No droplets observed behind the panel, test 24 hours at 250mm water head.
5. Sound-insulation
Excellent acoustic perfermance 38dB-46dB, 38dB for 60mm thickness panel, 46dB for 150mm thickness panel.
6. Fast and easy construction, Labor saving
Two experienced workers installation one day, they can install 50-80 ㎡.
7. Long life usage:70 years
V. Packing Details of Insulated Exterior Precast Concrete Wall Panels
| Packing Details | 1. Free packing | with normal pallet and packing belt | |
| 2. Standard exporting packing | wrapped with plastic thin film,wedge protect & good pallet | ||
| 3. Packing size: | 1500-3000*610*1000mm | ||
| 4. Loading | 18 pallets per 20' container | ||
VI. Photos of Insulated Exterior Precast Concrete Wall Panels
(1) Vanjoin Precast Concrete Wall Panels Factory
(2) Vanjoin Insulated Precast Concrete Wall Panels for Interior Wall

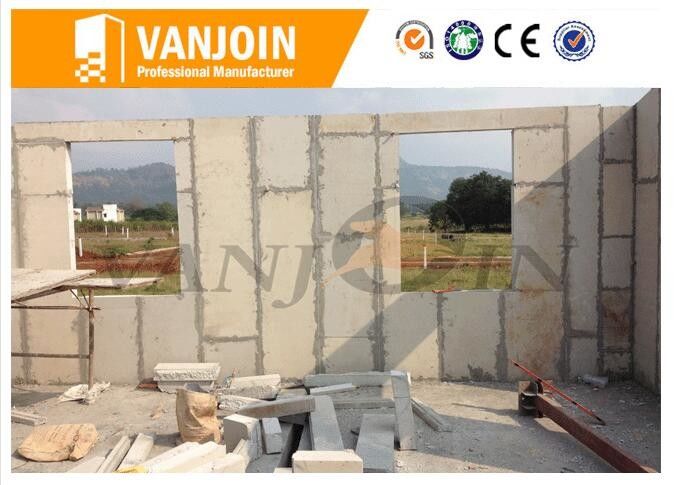

(3) Vanjoin Insulated Precast Concrete Wall Panels for Exterior Wall and Roof
(4) Vanjoin Insulated Precast Concrete Wall Panels for House
(for interior wall, exterior wall and fence)
