Reinforced Concrete structural foam panels , fire resistant wallboard Lightweight

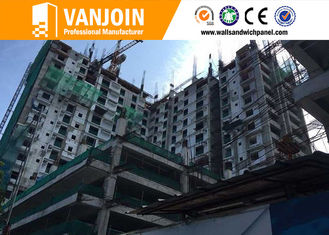

Large Image : Reinforced Concrete structural foam panels , fire resistant wallboard Lightweight

Product Details:

Place of Origin:	China
Brand Name:	Vanjoin
Certification:	CE, BV, ISO
Model Number:	WP-6-5R

Payment & Shipping Terms:

Minimum Order Quantity:	Two 20GP
Price:	negotiation
Packaging Details:	Standard exporting packing (wrapped with plastic thin film, edge protect and good pallet)
Delivery Time:	15 working days after received the payment
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	200,000 sqm per month

Detailed Product Description

Product Name:	Reinforced Concrete Structure Lightweight Foam Sandwich Wall Panels	Anti-seismic:	Anti-earthquake, Grade 7-8
Core Material:	Eps Foam Sandwich Material	Fireproof:	Grade A
Construction Speed:	Rapid	Soundproof:	46dB+
Life Span:	60-70 Years Service Time	Usage:	Roof, Floor, Interior Wall, Exterior Wall, Prefab House, High-rise Building, Villa

Reinforced Concrete structural foam panels , fire resistant wallboard Lightweight

1. Description
Vanjoin lightweight foam sandwich wall panels can connect with reinforced concrete structures very easily and fast, we provide you a rapid interior wall and exterior wall solution. Especially for high rise buildings.

2. Specification
Length * Width * Thichness (mm)
2270*610*90mm for interior wall
2270*610*120mm for exterior wall
Reinforced Concrete structural foam panels , fire resistant wallboard Lightweight
3.Features

Name	Features
Light weight	Lighter than traditional wall with same volume
Space saving	Save 4.26m2 per 100 m2
Waterproof	Excellent
Fireproof	A Grade,4 hours 1000 degree fire
Sound Insulation	46dB, soundproof, sound absorption
Hanging force	Single point hanging force 50kg while embed hanging force can exceed 150kg
Windproof	75m/s; 270km/h
Anti-seismic	Class 8, anti earthquake
Anti-impact	High strength, 1.5 times of traditional wall
Fast construction	8~10 times of traditional wall, easy decoration
Eco-friendly	100% no asbestos, asbestos free
Service Life	60-70 years life span

Reinforced Concrete structural foam panels , fire resistant wallboard Lightweight
4. Performance

Vanjoin Panels Performance
Thermal conductivity(BS 874: Part 2: 1986)	0.221 W/mK
Flexural Strength(longitudianal)	4.27 MPa
Flexural Strength(transverse)	4118N
Moisture Movement	0.06%
Moisture Content	9%
Resistance to continuous heating	80 °c
Surface Alkalinity	pH 7-10
Non-combustibility(face Boards)	BS EN ISO 1182: 2002 BS476: Part 4 GB8624-1997, Grade A
Heat of combustion(face boards)	BS EN ISO 1716: 2002
Building regulations classification(face boars)	Euro Class A1
Fire rated partition	2 hour FRP BS EN 1364-1 BS 476: Part 22 GB/T9978
Water tightness to ASTM C1185	No droplets observed behind the panel, Test of 24 hours at 250 mm water head
Partition stiffness-heavy duty grade (BS 5234; Part2: 1992, Annex A)	Pass
Resistance to substructure damage by multiple impacts from a large soft body -heavy duty grade( BS 5234; Part2: 1992, Annex E)	No collapse of dislocation
Surface damage by hard body impact- heavy duty grade (BS 5234; Part2: 1992, Annex B)	Pass
Effects of door slamming-heavy duty grade BS 5234; Part2: 1992, Annex B	Pass
resistance to crowd pressure-heavy duty grade BS 5234; Part2: 1992, Annex G	No collapse of damage
Resistance to anchorage(high level wall cupboard) eccentric downward BS 5234; Part2: 1992, Annex K	No damage or detachment of anchor
Anchorage Load	45 kg
Acoustic performance - 60 mm thick - 75 mm thick - 100 mm thick - 120 mm thick - 150 mm thick	38 dB 40 dB 42 dB 44 dB 46 dB

Reinforced Concrete structural foam panels , fire resistant wallboard Lightweight

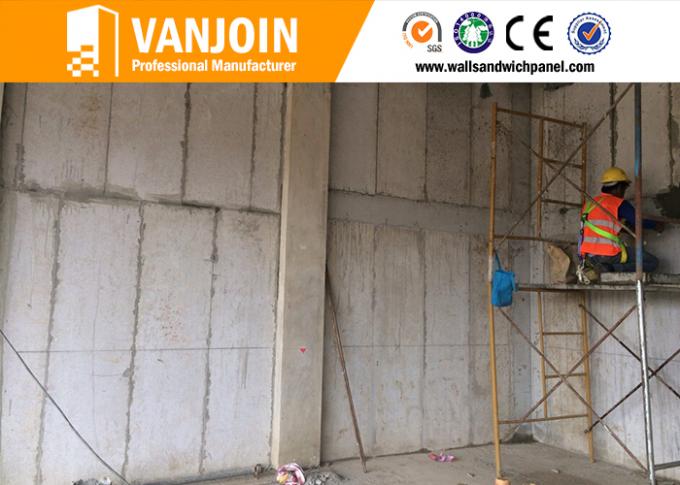

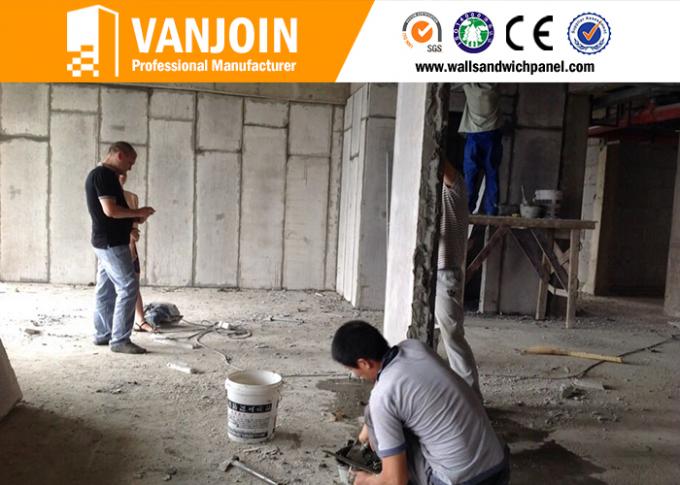

5. Installation
Setting the line and carrying the board in position;
Sawing board basing on requirement;
Sizing cement on tenon side of two boards;
Carrying the board prepared to be installed to the installation place, correcting the wall board by gavelock and making it close tightly;
Grouting and filling starch;
Sticking fiber glass mesh;
Apply putty powder and level up;
Finished.
Reinforced Concrete structural foam panels , fire resistant wallboard Lightweight

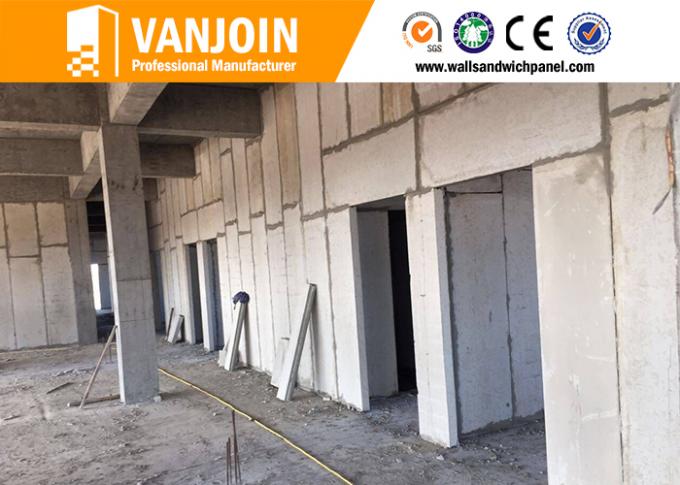

6. Application:
Eps ceramsite sandwich panels can be widely used as roof, floor, interior wall, exterior wall, prefab house, high-rise building, villa, etc, especially for the unsafe area.

Business Organizations	supermarket, large-scale shopping malls, exclusive agency, chain shops, large-scale sales, star-rated hotels, restaurants, travel agencies, pharmacy.
Financial Organizations	Banks, negotiable securities, funds, insurance companies, pawnshops; Non-profit Organizations: Telecommunications, post offices, hospital, schools;
Public Places	subway, airports, stations, gas stations, toll stations, bookstores, parks, exhibition halls, stadiums,museums, convention centers, ticket agencies, HR market, lottery centers; Real Estate Property: Apartments, villas, offices, commercial buildings, model rooms;
Entertainments	Movie theaters, fitness halls, country clubs, clubs, massage rooms, bars, cafes, Internet bars, beauty shops, golf course
